Серия дополнительных контроллеров питания SCM34

Mornsun

Общие характеристики

 Раздел Дополнительные контроллеры питания

Документация на серию SCM34

SCM3401A Half-duplex Transceiver Package Features       5.0V single supply operation Baud Rate Up to 1Mbps 1/8 Unit Load—Up to 256 Nodes on a Bus Low Quiescent Power – 0.3mA Active Mode – 50nA Shutdown Mode Bus-Pin ESD Protection Up to 15 kV Driver short circuit protection Applications     Mechanical package: SOP-8 (see “Ordering information” for details). Industrial Automation Building Automation Smart Electricity Meter Remote Signal Interaction, Transmission Functional Description SCM3401A is a half-duplex enhanced transceiver designed for RS–485 data bus networks. Powered by 5V supply, the SCM3401A is fully compliant with TIA/EIA-485A standard and is suitable for data transmission of up to 1 Mbps. Receivers have an exceptionally high input impedance, which places only 1/8 of the standard load on a shared bus and up to 256 transceivers . The reliability design of A B pin is emphasized, including driver output over current protection and enhanced ESD design. The ESD protection level of A,B pin can be up to 15KV (Human Body Model). Typical Application Circuit Typical Circuit 1: Half-Duplex Network Typical Circuit: 2:Application Diagram 2019.11 - A/1 Page 1 of 12 PDF
Документация на SCM3401ASA

Subject:

Дата модификации: 12.11.2019

Размер: 2.81 Мб

12 стр.

    Товары серии SCM34

    Наименование i Упаковка Тип

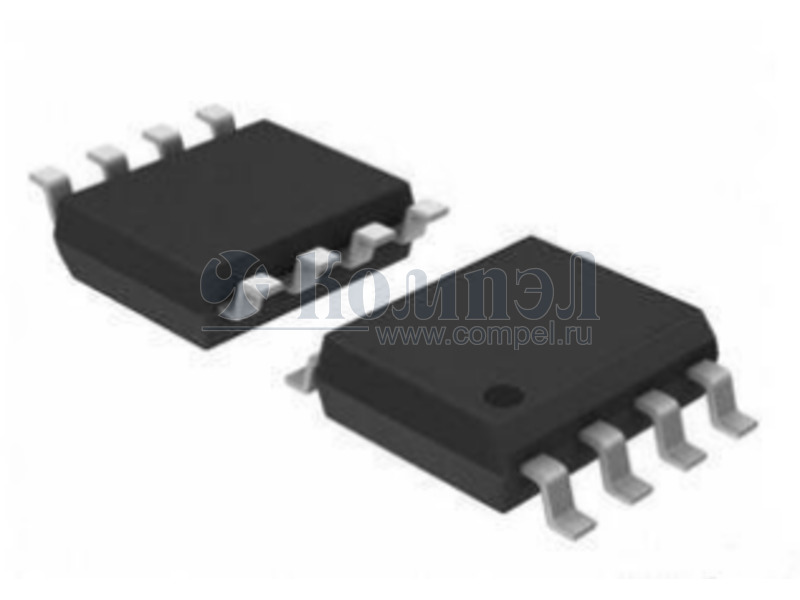

    SCM3401ASA (MORNSUN)

    		1 шт
    SCM3402ASI (MORNSUN)

    		1 шт
    SCM3403ASA (MORNSUN)

    		1 шт
