Серия AC-DC сетевых преобразователей PD-45

MEAN WELL

Общие характеристики

 Раздел AC-DC сетевые преобразователи
Выходная мощность (ном)
Напряжение 1 канала
Выходной ток 1 канала
Тип стабилизации
Вход
Конструктивное исполнение
Возможности
Типы защиты КЗ, перегрузка, перенапряжение
Количество выходов
Тип управления выходом
Исполнение
Входное напряжение AC
Входное напряжение DC
Коэффициент мощности
Напряжение изоляции вход-выход
Напряжение изоляции вход-земля
Напряжение изоляции выход-земля
Применение
Шум

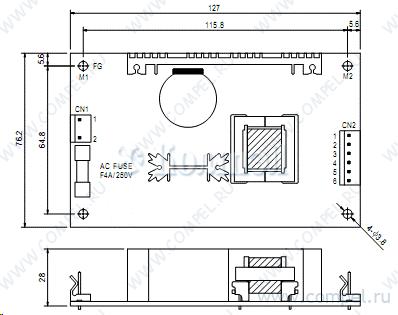

Размер 127×76×28 мм
Рабочая температура

Документация на серию PD-45

PD-45 45W Dual Output Switching Power Supply series User’s Manual ■ Features : Universal AC input/Full range Low leakage current<0.5mA Protections: Short circuit / Overload / Over voltage Cooling by free air convection 100% full load burn-in test Fixed switching frequency at 65KHz 2 years warranty Bauar t gepruft Sicherheit egel ma ge od o s be wac g www. tuv.com ID 2000000000 SPECIFICATION MODEL OUTPUT UL62368-1 BS EN/EN62368-1 TPTC004 IEC62368-1 PD-45A PD-45B OUTPUT NUMBER CH1 CH2 CH1 CH2 DC VOLTAGE 5V 12V 5V 24V RATED CURRENT 3.2A 2A 3.2A 1.2A CURRENT RANGE 0.4 ~ 5A 0.2 ~ 2.5A 0.4 ~ 5A 0.2 ~ 1.8A RATED POWER 40W OUTPUT POWER (max.) Rated output power for convection; 52W with 18CFM min. Forced air 44.8W RIPPLE & NOISE (max.) Note.2 50mVp-p 120mVp-p 50mVp-p 150mVp-p CH1:4.75 ~ 5.5V VOLTAGE TOLERANCE Note.3 ±4.0% ±7.0% CH1:4.75 ~ 5.5V ±4.0% ±7.0% LINE REGULATION ±1.0% ±2.0% ±1.0% ±2.0% LOAD REGULATION ±3.0% ±4.0% ±3.0% ±4.0% SETUP, RISE TIME 800ms, 20ms at full load HOLD UP TIME (Typ.) 60ms at full load VOLTAGE RANGE 90 ~ 264VAC FREQUENCY RANGE 47 ~ 440Hz VOLTAGE ADJ. RANGE INPUT EFFICIENCY(Typ.) 77% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 1A/115VAC LEAKAGE CURRENT OVERLOAD PROTECTION OVER VOLTAGE WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS SAFETY & WITHSTAND VOLTAGE EMC (Note 4) OTHERS 78% 0.7A/230VAC COLD START 15A/115VAC <0.75mA 30A/230VAC 53 ~ 75W rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed. 5.75 ~ 6.75VDC on CH1 Protection type : Hiccup mode, recovers automatically after fault condition is removed. -10 ~ +60℃ (Refer to "Derating Curve") 20 ~ 90% RH non-condensing -20 ~ +85℃, 10 ~ 95% RH ±0.04%/℃ (0 ~ 50℃) on +5V output 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC ISOLATION RESISTANCE EMC EMISSION I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, criteria A, EAC TP TC 020 MTBF 288.1K hrs min. MIL-HDBK-217F (25℃) 127*76*28mm (L*W*H) 0.2Kg; 72pcs/16Kg/1.28CUFT DIMENSION PACKING NOTE 127 ~370VDC 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com) 5. Mounting holes M1 and M2 should be grounded for EMI purposes. 6. Heat Sink HS1,HS2 can not be shorted. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft). ※ Product Liability Disclaimer：For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx File Name:PD-45-SPEC 2021-09-15 PDF
Документация на PD-45B

PD-45-20210915.cdr

Дата модификации: 02.12.2021

Размер: 113.8 Кб

2 стр.

PD-45 45W Dual Output Switching Power Supply series Features : Universal AC input/Full range Low leakage current<0.5mA Protections: Short circuit / Overload / Over voltage Cooling by free air convection 100% full load burn-in test Fixed switching frequency at 65KHz 2 years warranty SPECIFICATION MODEL OUTPUT PD-45A PD-45B OUTPUT NUMBER CH1 CH2 CH1 CH2 DC VOLTAGE 5V 12V 5V 24V RATED CURRENT 3.2A 2A 3.2A 1.2A CURRENT RANGE 0.4 ~ 5A 0.2 ~ 2.5A 0.4 ~ 5A 0.2 ~ 1.8A RATED POWER 40W OUTPUT POWER (max.) Rated output power for convection; 52W with 18CFM min. Forced air 44.8W RIPPLE & NOISE (max.) Note.2 50mVp-p 120mVp-p VOLTAGE ADJ. RANGE CH1:4.75 ~ 5.5V VOLTAGE TOLERANCE Note.3 4.0% INPUT 7.0% 150mVp-p 7.0% 1.0% 2.0% 1.0% 2.0% LOAD REGULATION 3.0% 4.0% 3.0% 4.0% SETUP, RISE TIME 800ms, 20ms at full load HOLD UP TIME (Typ.) 60ms at full load VOLTAGE RANGE 90 ~ 264VAC FREQUENCY RANGE 47 ~ 440Hz EFFICIENCY(Typ.) 77% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 1A/115VAC OVERLOAD PROTECTION OVER VOLTAGE WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS WITHSTAND VOLTAGE SAFETY & ISOLATION RESISTANCE EMC EMI CONDUCTION & RADIATION (Note 4) HARMONIC CURRENT EMS IMMUNITY MTBF DIMENSION PACKING NOTE CH1:4.75 ~ 5.5V 4.0% LINE REGULATION LEAKAGE CURRENT OTHERS 50mVp-p 127 ~370VDC 78% 0.7A/230VAC COLD START 15A/115VAC <0.75mA 30A/230VAC 53 ~ 75W rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed. 5.75 ~ 6.75VDC on CH1 Protection type : Hiccup mode, recovers automatically after fault condition is removed. -10 ~ +60 (Refer to output load derating curve) 20 ~ 90% RH non-condensing -20 ~ +85 , 10 ~ 95% RH 0.04%/ (0 ~ 50 ) on +5V output 10 ~ 500Hz, 2G 10min./1cycle, Period for 60min.each along X, Y, Z axes UL60950, TUV EN60950-1 Approved I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC Compliance to EN55022 (CISPR22) Class B Compliance to EN61000-3-2,-3 Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, Light industry level, criteria A 288.1K hrs min. MIL-HDBK-217F (25 127*76*28mm (L*W*H) 0.2Kg; 72pcs/16Kg/1.35CUFT ) 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 5. Mounting holes M1 and M2 should be grounded for EMI purposes. File Name:PD-45-SPEC 2006-12-19 PDF
Документация на серию PD-45

PD-45.cdr

Дата модификации: 02.01.2007

Размер: 334.6 Кб

2 стр.

    Товары серии PD-45

    Наименование i Упаковка Выход КПД
    PD-45A (MW)

    		Преобразователь напряжения AC-DC ( DC-DC)на шасси. 40Вт, Uвх=90-264В AC 47...440Гц (127... 72 шт
    PD-45B (MW)

    		Преобразователь напряжения AC-DC ( DC-DC)на шасси. 44.8Вт, Uвх=90-264В AC 47...440Гц (1... 8 шт
