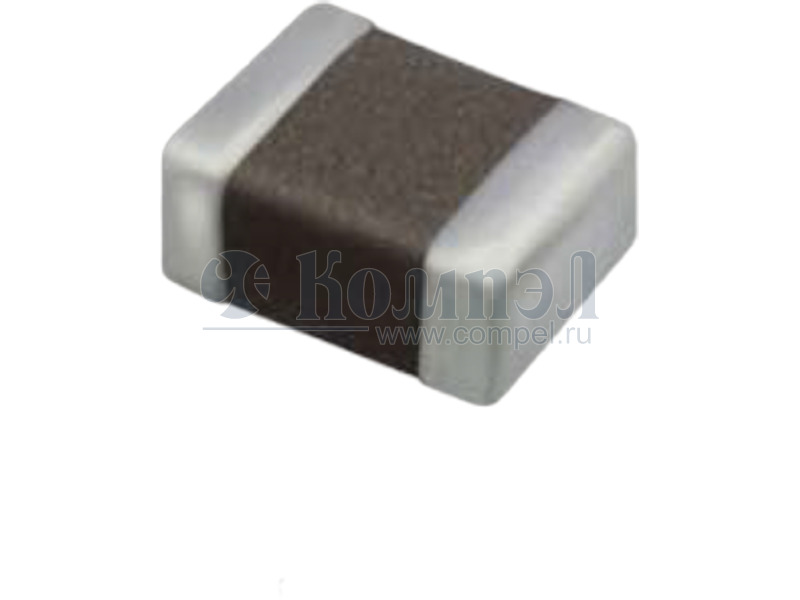

Серия дросселей CIG

Samsung

Общие характеристики

	Раздел	Дроссели
	Допуск по индуктивности
	Экранирование магнитное
	Температура рабочая

Документация на серию CIG

Metal Composite Power Inductor (Thin Film) Specification Sheet CIGT201206EH1R0MNE (2012 / EIA 0805) APPLICATION Smart phones, Tablet, Wearable devices, Power converter modules, etc. FEATURES RECOMMENDED LAND PATTERN Small power inductor for mobile devices Low DCR structure and high efficiency inductor for power circuits. Monolithic structure for high reliability Free of all RoHS-regulated substances Halogen free TYPE A B C Unit : mm 2012 0.8 0.8 1.3 DIMENSION TYPE 2012 Dimension [mm] W T L 2.0±0.2 1.25±0.2 0.6 max D 0.5±0.2 DESCRIPTION Part no. CIGT201206EH1R0MNE Size [inch/mm] Thickness [mm] (max) Inductance [uH] Inductance tolerance (%) 0805/2012 0.6 1.0 ±20 DC Resistance [mΩ] Rated DC Current (Isat) [A] Rated DC Current (Irms) [A] Max. Typ. Max. Typ. Max. Typ. 110 90 2.4 2.7 1.8 2 * Inductance : Measured with a LCR meter 4991A(Agilent) or equivalent (Test Freq. 1MHz, Level 0.1V) * DC Resistance : Measured with a Resistance HI-TESTER 3541(HIOKI) or equivalent * Maximum allowable DC current : Value defined when DC current flows and the initial value of inductance has decreased by 30% or when current flows and temperature has risen to 40℃ whichever is smaller. (Reference: ambient temperature is 25℃±10) (Isat) : Allowable current in DC saturation : The DC saturation allowable current value is specified when the decrease of the initial inductance value at 30% (Reference: ambient temperature is 25℃±10) (Irms) : Allowable current of temperature rise : The temperature rise allowable current value is specified when temperature of the inductor is raised 40℃ by DC current. (Reference: ambient temperature is 25℃±10) * Absolute maximum voltage : Absolute maximum voltage DC 20V. * Operating temperature range : -40 to +125°C (Including self-temperature rise) PRODUCT IDENTIFICATION CIG (1) T (2) 2012 (3) 06 (4) (1) Power Inductor (3) Dimension (2012: 2.0mm × 1.25mm ) (5) Remark (Characterization Code) (7) Toleranc (M:±20%) (8) Internal Code (9) Packaging (C:paper tape, E:embossed tape) EH (5) 1R0 (6) M (7) N (8) E (9) (2) Type (T: Metal Composite Thin Film Type) (4) Thicknes (06: 0.6mm) (6) Inductanc(1R0: 1.0 uH) RECOMMENDED SOLDERING CONDITION REFLOW SOLDERING FLOW SOLDERING IRON SOLDERING Temperature of Soldering Iron Tip Preheating Temperature Temperature Differential PACKAGING Packaging Style Quantity(pcs/reel) Embossed Taping 3000 pcs 280℃max. 150℃min. ΔT≤130℃ Soldering Time 3sec max. Wattage 50W max.

PDF

Документация на CIGT201206EH1R0MNE

Spec&Data Sheet_CIGT201206EH1R0MNE_i_V10.1_1941_R_r_0902bda5816b48a6_4c17_m.xlsx

Дата модификации: 09.11.2016

Размер: 212.7 Кб

3 стр.

найти CIG.pdf

Товары серии CIG

Наименование	Упаковка	Ток насыщения	Корпус производителя
CIGT201206EH1R0MNE (SAMSUNG)
CIGT201208EH1R0MNE (SAMSUNG)
CIGT201208EHR47MNE (SAMSUNG)
CIGT201210UHR47MNE (SAMSUNG)
CIGT201608EHR47MNE (SAMSUNG)
CIGT201610EH1R0MNE (SAMSUNG)	10 шт
CIGT201610EH2R2MNE (SAMSUNG)	1 шт
CIGT201610EHR47MNE (SAMSUNG)	в ленте 3000 шт
CIGT201610LH1R0MNE (SAMSUNG)	в ленте 3000 шт
CIGT201610LH2R2MNE (SAMSUNG)	1 шт
CIGT201610LHR24MNE (SAMSUNG)	1 шт
CIGT201610LHR47MNE (SAMSUNG)
CIGT201610LM1R0MNE (SAMSUNG)
CIGT201610LM2R2MNE (SAMSUNG)
CIGT252008LM1R0MNE (SAMSUNG)
CIGT252008LM2R2MNE (SAMSUNG)
CIGT252010EH1R0MNE (SAMSUNG)	в ленте 3000 шт
CIGT252010EH2R2MNE (SAMSUNG)
CIGT252010LM1R0MNE (SAMSUNG)
CIGT252010LMR24MNE (SAMSUNG)	1 шт
CIGT252010LMR47MNE (SAMSUNG)	в ленте 3000 шт
CIGT252012LMR47MNE (SAMSUNG)	в ленте 2500 шт
CIGW201610GH4R7MLE (SAMSUNG)
CIGW201610GL1R0MLE (SAMSUNG)		—	—
CIGW252010EH4R7MNE (SAMSUNG)
CIGW252010GL1R0MNE (SAMSUNG)	1 шт
CIGW252010GL1R5MNE (SAMSUNG)	1 шт
CIGW252010GL4R7MNE (SAMSUNG)	1 шт
CIGW252010GLR47MNE (SAMSUNG)	в ленте 3000 шт
CIGW252012GL4R7MNE (SAMSUNG)
