TS-700-224B

MEAN WELL
DC/AC преобразователи
развернуть ▼ свернуть ▲
Фотография серии TS-700
Внешний вид TS-700-224B

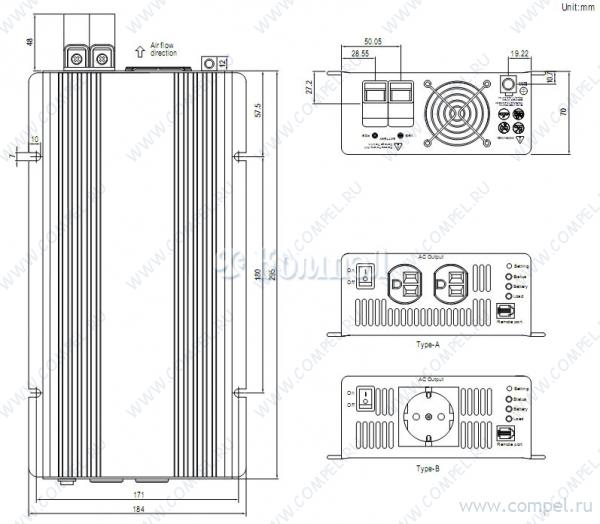

Чертеж серии TS-700


Технические характеристики

показать свернуть
Примечания DC-AC Inverter Power Supply Module
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 2

показать свернуть
Тип Наименование Корпус Упаковка i P вых U вх U вых Форма T раб Примечания Карточка
товара
P+ NTS-750-224EU (MW)

— в коробках 4 шт
F~ TS-1000-224B (MW)

— в коробках 2 шт DC-AC инвертор - P вых: 1 кВт; U вх: 24 В; U вых: 230 В; Форма: чистый синус; 345x184x7... Сигнализация о снижении напряжения аккумуляторной батареи, Автоотключение при снижении Uвх, защита от переполюсовки, Защита от короткого замыкания, перегрузки, перенапряжения, перегрева

Файлы 2

показать свернуть
TS-700 700W True Sine Wave DC-AC Power Inverter ■ Features : series User’s Manual True sine wave output (THD<3%) High surge power up to 1400W High efficiency up to 91% Power ON-OFF switch Standby saving mode can be selectable Front panel indicator for operation status Built-in fan ON-OFF control function Protections: Bat. low alarm / Bat. low shutdown / Over voltage / Over temp. / Output short / Reverse polarity / Overload Application : Home appliance, power tools, office and portable equipment, vehicle and yacht ...etc. 3 years warranty E13 TPTC004 SPECIFICATION TS-700-112 MODEL NO. TS-700-124 TS-700-148 = A, F RATED POWER (Typ.) TS-700-212 IEC62368-1 (for 212/224/248 only) TS-700-224 TS-700-248 = B, C, D 700W MAXIMUM OUTPUT POWER (Typ.) 800W for 180 sec. / 1050W for 10 sec. / surge power 1400W for 30 cycles AC VOLTAGE OUTPUT Factory setting set at 110VAC Factory setting set at 230VAC 100 / 110 / 115 / 120VAC selectable by setting button S.W 200 / 220 / 230 / 240VAC selectable by setting button S.W FREQUENCY Note.8 60±0.1Hz WAVEFORM Note.6 True sine wave (THD<3%) 50/60Hz selectable by setting button S.W AC REGULATION (Typ.) ±3.0% SAVING MODE (Typ.) Default disabled. Load≦5W will be changed to standby mode FRONT PANEL INDICATOR Battery voltage level, output load level, saving mode, fault and operation status BAT. VOLTAGE 12V 24V 50/60Hz selectable by setting button S.W 48V 12V 24V 48V 42 ~ 60VDC 19A 10.5 ~ 15VDC 21 ~ 30VDC 42 ~ 60VDC 75A 38A 19A 88% Open & sealed Lead Acid 89% 89% 90% 91% 40A*3 11.3±4% 30A*2 22.5±4% 20A*2 45±4% 40A*3 11.3±4% 30A*2 22.5±4% 20A*2 45±4% 10.5±4% 21±4% 42±4% 10.5±4% 21±4% 42±4% VOLTAGE RANGE (Typ.)Note.3,5 10.5 ~ 15VDC DC CURRENT (Typ.) 75A INPUT 50±0.1Hz 21 ~ 30VDC 38A NO LOAD DISSIPATION (Typ.) ≦6W @ standby saving mode OFF MODE CURRENT DRAW ≦1mA EFFICIENCY (Typ.) Note.1 86% BATTERY TYPES FUSE BATTERY BAT. LOW ALARM INPUT PROTECTION BAT. LOW SHUTDOWN BAT. POLARITY By internal fuse open 80℃± 5℃ OVER TEMPERATURE OUTPUT SHORT OUTPUT PROTECTION OVER LOAD (Typ.) Protection type : Shut down o/p voltage, re-power on to recover 105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec. Protection type : Shut down o/p voltage, re-power on to recover GFCI PROCTECTION ENVIRONMENT WORKING TEMP. WORKING HUMIDITY Optional (Only type F) SAFETY & ISOLATION RESISTANCE EMC EMC EMISSION OTHERS NOTE None Note.4 0 ~ +40℃ @ 100% load ; +60℃ @ 50% load STORAGE TEMP., HUMIDITY VIBRATION SAFETY STANDARDS WITHSTAND VOLTAGE 75℃± 5℃ Protection type : Shut down o/p voltage, re-power on to recover; by internal RTH3 detect on heatsink of power diode 20% ~ 90% RH non-condensing -30 ~ +70℃ / -22 ~ +158oF, 10 ~ 95% RH non-condensing 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes EAC TP TC 004 approved, Design refer to UL458 IEC62368-1 CB, EAC TP TC 004 approved; Design refer to BS EN/EN62368-1 Bat I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC Bat I/P - AC O/P, Bat I/P - FG, AC O/P - FG: 100M ohms / 500VDC / 25℃/ 70% RH Compliance to BS EN/EN55032 class A, 72/ 245/ CEE, 95/ 54/ CE, E-Mark, EAC TP TC 020 Compliance to FCC class A, EAC TP TC 020 EMC IMMUNITY MTBF Compliance to EAC TP TC 020 74.4K hrs min. MIL-HDBK-217F (25℃) DIMENSION PACKING 295*184*70mm (L*W*H) 3.8Kg; 2pcs/8.6Kg/1.27CUFT Compliance to BS EN/EN61000-4-2,3,8, EAC TP TC 020 1.Efficiency is tested by 530W, linear load at 13V, 26V, 52V input voltage. 2.All parameters not specified above are measured at rated load, 25℃ of ambient temperature and set to factory setting. 3.Input derating capacity referenced by curve 2. 4.Output derating capacity referenced by curve 1. 5.The tolerance of each voltage value by models is:112/212→±0.5V;124/224→±1V;148/248→±2V. 6.THD is tested by 700W, linear load at 13,26,52V input voltage. 7.The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft). 8.Type F for 60Hz only. ※ Product Liability Disclaimer：For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx File Name:TS-700-SPEC 2021-08-27 PDF
Документация на TS-700-124A

TS-700.cdr

Дата модификации: 24.08.2021

Размер: 107.9 Кб

2 стр.

TS-700 700W True Sine Wave DC-AC Power Inverter series Features : True sine wave output (THD<3%) High surge power up to 1400W High efficiency up to 91% Power ON-OFF switch Standby saving mode can be selectable Front panel indicator for operation status Built-in fan ON-OFF control function Protections: Bat. low alarm / Bat. low shutdown / Over voltage / Over temp. / Output short / Reverse polarity / Overload Application : Home appliance, power tools, office and portable equipment, vehicle and yacht ...etc. 2 years warranty E13 SPECIFICATION MODEL TS-700-124 TS-700-112 TS-700-148 TS-700-212 TS-700-224 TS-700-248 700W RATED POWER (Typ.) MAXIMUM OUTPUT POWER (Typ.) 800W for 180 sec. / 1050W for 10 sec. / surge power 1400W for 30 cycles Factory setting set at 110VAC AC VOLTAGE OUTPUT 200 / 220 / 230 / 240VAC selectable by setting button S.W FREQUENCY 60 0.1Hz 50 0.1Hz WAVEFORM True sine wave (THD<3%) at rated input voltage Load FRONT PANEL INDICATOR Battery voltage level, output load level, saving mode, fault and operation status BAT. VOLTAGE 12V VOLTAGE RANGE (Typ.) DC CURRENT (Typ.) 10.5 ~ 15VDC 75A NO LOAD DISSIPATION 24V FUSE BATTERY BAT. LOW ALARM INPUT PROTECTION BAT. LOW SHUTDOWN BAT. POLARITY OVER TEMPERATURE OUTPUT SHORT OUTPUT PROTECTION OVER LOAD (Typ.) GFCI PROCTECTION WORKING TEMP. WORKING HUMIDITY STORAGE TEMP., HUMIDITY VIBRATION SAFETY STANDARDS LVD SAFETY & WITHSTAND VOLTAGE EMC ISOLATION RESISTANCE 48V 12V 24V 48V 42 ~ 60VDC 19A 10.5 ~ 15VDC 21 ~ 30VDC 42 ~ 60VDC 75A 38A 19A 89% 89% 90% 91% 1mA 88% Open & sealed Lead Acid Note.1 86% BATTERY TYPES NOTE 5W will be changed to standby mode 21 ~ 30VDC 38A 6W @ standby saving mode OFF MODE CURRENT DRAW OTHERS 50/60Hz selectable by setting button S.W SAVING MODE (Typ.) EFFICIENCY (Typ.) ENVIRONMENT 50/60Hz selectable by setting button S.W 3.0% AC REGULATION (Typ.) INPUT Factory setting set at 230VAC 100 / 110 / 115 / 120VAC selectable by setting button S.W 40A*3 11.3 4% 30A*2 22.5 4% 20A*2 45 4% 40A*3 11.3 4% 30A*2 22.5 4% 20A*2 45 4% 10.5 4% 21 4% 42 4% 10.5 4% 21 4% 42 4% By internal fuse open 80 75 5 5 Protection type : Shut down o/p voltage, re-power on to recover; by internal RTH3 detect on heatsink of power diode Protection type : Shut down o/p voltage, re-power on to recover 105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec. Protection type : Shut down o/p voltage, re-power on to recover Optional (Only type F) 0 ~ +40 @ 100% load ; +60 @ 50% load 20% ~ 90% RH non-condensing -30 ~ +70 None o / -22 ~ +158 F, 10 ~ 95% RH 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes None Design refer to UL458 None Bat I/P - AC O/P:3.0KVAC EN60950-1 AC O/P - FG:1.5KVAC AC O/P-FG , Bat I/P-FG:100M Ohms / 500VDC / 25 EMI CONDUCTION&RADIATION Compliance to FCC class A EMS IMMUNITY None 295*184*70mm (L*W*H) DIMENSION 3.8Kg; 2pcs/8.6Kg/1.02CUFT PACKING / 70% RH Compliance to EN55022 class A, 72/ 245/ CEE, 95/ 54/ CE, E-Mark Compliance to EN61000-4-2,3,8 ENV50204 1.Efficiency is tested by 530W, linear load at 13V, 26V, 52V input voltage. 2.All parameters not specified above are measured at rated load, 25 of ambient temperature. File Name:TS-700-SPEC 2009-02-07 PDF
Документация на серию TS-700

TS-700.cdr

Дата модификации: 07.05.2009

Размер: 339 Кб

2 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
