Драйвер LCD индикаторов

Руководство пользователя

Код для заказаФотоПримечания
BL55072A-R (CN BELL)


BL55077 (CN BELL)

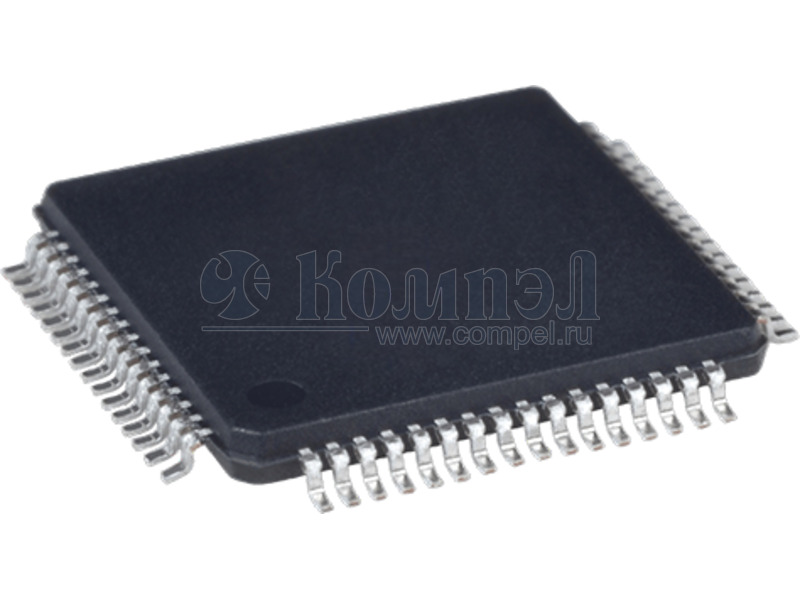

Внешний вид BL55077 4 x 40 SEG, LCD bias voltage generator, LCD voltage selector, internal clock (realized by connecting a resistor between OSC and VSS pins, in normal operation mode = 180Hz, in power-saving operation mode = 30KHz, external clock is used when connected to VDD ), Display RAM, Display Latch, Shift Register, Segment/Back Output Circuit, I/O Bank Selector, Blink Circuit, Data Pointer, and Subaddress Counter
BL55072A (CN BELL)

Вид корпуса TSSOP-48 4 x 36 SEG, LCD bias voltage generator, LCD voltage selector, internal clock (OSC=25.6KHz, typical value), display register, segment/back pole output circuit, I2C serial interface, power-on reset circuit and display control circuit
BL55080 (CN BELL)


BL55024 (CN BELL)


4 x 15 SEG, Power-on reset, LCD bias generator, LCD voltage selector, Oscillator, display RAM, Timing, Display latch, Shift register, Common/segment outputs, input/output bank selector, Blinker, Data pointer
BL55028 (CN BELL)


4 x 19 SEG, Power-on reset, LCD bias generator, LCD voltage selector, Oscillator, display RAM, Timing, Display latch, Shift register, Common/segment outputs, input/output bank selector, Blinker, Data pointer
BL55066 (CN BELL)


4 x 24 SEG, LCD bias voltage generator, LCD voltage selector, internal clock, display RAM, display latch, shift register, segment/back output circuit, input/output bank selector, blink circuit, data pointers and subaddress counters
BL55070 (CN BELL)


4 x 35 SEG, Power-on reset, LCD bias generator, LCD voltage selector, Oscillator, display RAM, Timing, Display latch, Shift register, Common/segment outputs, input/output bank selector, Blinker, Data pointer
BL55080-LQFP48 (CN BELL)

Внешний вид LQFP48 8 x 35 SEG, 280-bit RAM for display data storage, I2C bus, No external components required, Integrated Electrical volume register (EVR)
BL55080-LQFP52 (CN BELL)


8 x 35 SEG, 280-bit RAM for display data storage, I2C bus, No external components required, Integrated Electrical volume register (EVR)
BL55080-TSSOP48 (CN BELL)

Вид корпуса TSSOP-48 8 x 35 SEG, 280-bit RAM for display data storage, I2C bus, No external components required, Integrated Electrical volume register (EVR)
