HT1621B

HOLTEK Semiconductor Inc.

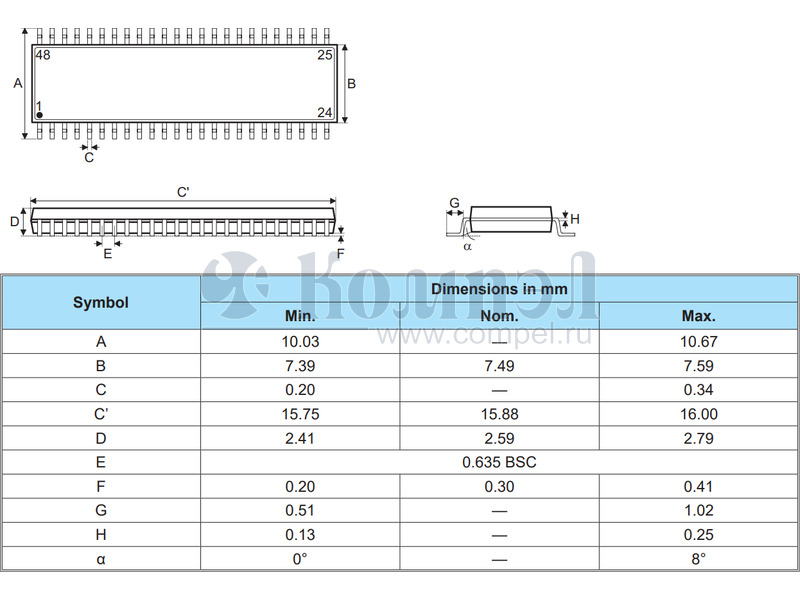

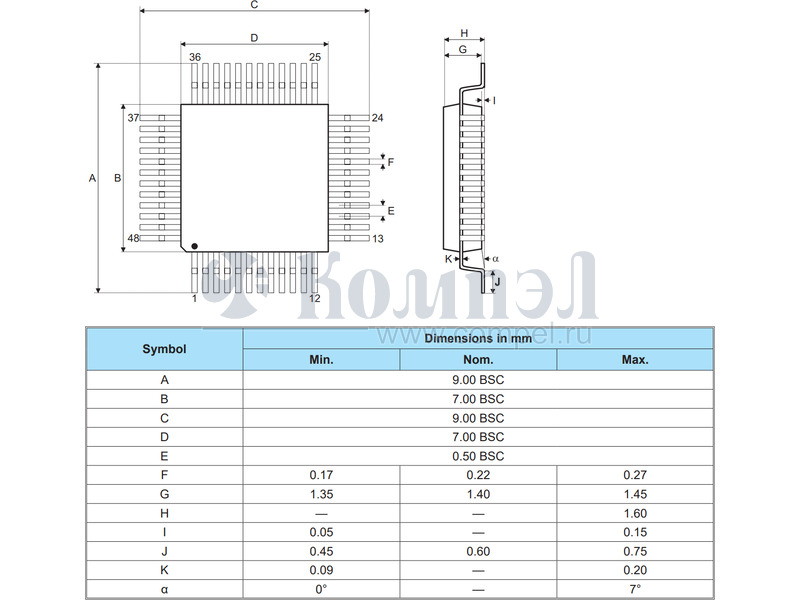

Поставляется в 2-х корпусах: LQFP48 и SSOP48. Пожалуйста, уточняйте при заказе
развернуть ▼ свернуть ▲
Внешний вид HT1621B
Внешний вид HT1621B
Внешний вид HT1621B
Внешний вид HT1621B

Технические характеристики

показать свернуть
Примечания RAM Mapping 32х4 LCD Controller for I/O MCU
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 2

показать свернуть
HT1621/HT1621G RAM Mapping 32´4 LCD Controller for I/O MCU PATENTED PAT No. : TW 099352 Features · Operating voltage: 2.4V~5.2V · 32´4 LCD driver · Built-in 256kHz RC oscillator · Built-in 32´4 bit display RAM · External 32.768kHz crystal or 256kHz frequency · 3-wire serial interface source input · Internal LCD driving frequency source · Selection of 1/2 or 1/3 bias, and selection of 1/2 or · Software configuration feature 1/3 or 1/4 duty LCD applications · Data mode and command mode instructions · Internal time base frequency sources · R/W address auto increment · Two selectable buzzer frequencies (2kHz/4kHz) · Three data accessing modes · Power down command reduces power consumption · VLCD pin for adjusting LCD operating voltage · Built-in time base generator and WDT · HT1621: 44-pin LQFP package · Time base or WDT overflow output HT1621B: 48-pin SSOP/LQFP packages HT1621G: Gold bumped chip · 8 kinds of time base/WDT clock sources General Description systems. Only three or four lines are required for the interface between the host controller and the HT1621. The HT1621 contains a power down command to reduce power consumption. The HT1621 is a 128 pattern (32´4), memory mapping, and multi-function LCD driver. The S/W configuration feature of the HT1621 makes it suitable for multiple LCD applications including LCD modules and display sub- Selection Table HT162X HT1620 HT1621 HT1622 HT16220 HT1623 HT1625 HT1626 COM 4 4 8 8 8 8 16 SEG 32 32 32 32 48 64 48 Built-in Osc. ¾ Ö Ö ¾ Ö Ö Ö Crystal Osc. Ö Ö ¾ Ö Ö Ö Ö Rev. 3.10 1 November 5, 2012 PDF
Документация на HT1621B

1621v250.vp

Дата модификации: 16.06.2023

Размер: 181.9 Кб

20 стр.

HT1621 RAM Mapping 32´4 LCD Controller for I/O MCU Features · Operating voltage: 2.4V~5.2V · Built-in 32´4 bit display RAM · Built-in 256kHz RC oscillator · 3-wire serial interface · External 32.768kHz crystal or 256kHz frequency · Internal LCD driving frequency source source input · Software configuration feature · Selection of 1/2 or 1/3 bias, and selection of 1/2 or · Data mode and command mode instructions 1/3 or 1/4 duty LCD applications · R/W address auto increment · Internal time base frequency sources · Three data accessing modes · Two selectable buzzer frequencies (2kHz/4kHz) · VLCD pin for adjusting LCD operating voltage · Power down command reduces power consumption · HT1621: 48-pin SSOP package · Built-in time base generator and WDT HT1621B: 48-pin DIP/SSOP/LQFP package HT1621D: 28-pin SKDIP package HT1621G: Gold bumped chip · Time base or WDT overflow output · 8 kinds of time base/WDT clock sources · 32´4 LCD driver General Description systems. Only three or four lines are required for the interface between the host controller and the HT1621. The HT1621 contains a power down command to reduce power consumption. The HT1621 is a 128 pattern (32´4), memory mapping, and multi-function LCD driver. The S/W configuration feature of the HT1621 makes it suitable for multiple LCD applications including LCD modules and display sub- Selection Table HT162X HT1620 HT1621 HT1622 HT16220 HT1623 HT1625 HT1626 COM 4 4 8 8 8 8 16 SEG 32 32 32 32 48 64 48 Built-in Osc. ¾ Ö Ö ¾ Ö Ö Ö Crystal Osc. Ö Ö ¾ Ö Ö Ö Ö Rev. 1.30 1 August 6, 2003 PDF
Документация на серию HT1621

Дата модификации: 17.02.2006

Размер: 177.4 Кб

21 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
