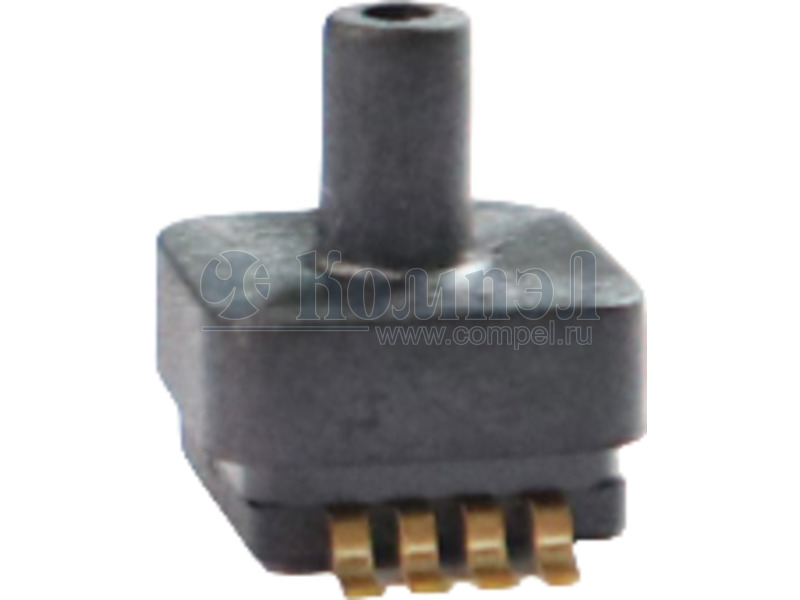

XGZP183010

Unamplified Pressure Sensor Series V2.2/2022.02 XGZP183 PRESSURE SENSOR FEATURES ■ Range: -100~0…7kPaG…200kPaG ■ MEMS technology, Solid-state reliability ■ Fluorosilicone gel die coat ■ Surface mounting ■ For non-corrosive gas or air or liquid ■ Working temp.: -30℃~+100℃(-22℉~+212℉) ■ Gage pressure type(Positive&Negative Pressure) ■ Easy to use and embed in OEM equipment APPLICATIONS ...
развернуть ▼ свернуть ▲

Технические характеристики

показать свернуть
Тип измеряемого давления
Измеряемое давление
Тип выхода
Электрическое подключение
Напряжение питания
Рабочая температура
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 1

показать свернуть
Unamplified Pressure Sensor Series V2.2/2022.02 XGZP183 PRESSURE SENSOR FEATURES ■ Range: -100~0…7kPaG…200kPaG ■ MEMS technology, Solid-state reliability ■ Fluorosilicone gel die coat ■ Surface mounting ■ For non-corrosive gas or air or liquid ■ Working temp.: -30℃~+100℃(-22℉~+212℉) ■ Gage pressure type(Positive&Negative Pressure) ■ Easy to use and embed in OEM equipment APPLICATIONS ■ For medical and healthy equipment, e.g. Patient Monitoring, Infusion and Syringe Pumps, Anesthesia machines, Respirators and Ventilators, NPWT, DVT, Catheter, COPD Treatment, Kidney dialysis, Cupping& Cosmetology, Hospital beds, Massage device etc. ■ For white goods and consumer electronics, e.g. Refrigerator, Printer, Humidifier, Washer/Dryer, Coffee machine, Dust collector or Cleaner, Robotic ,Sport equipment etc. ■ For more fields, e.g. Digital display meter, Air pump, Process control, Pressure switching, HVAC and pneumatic device, Air flow monitor, Automation, Automotive electronic etc. INTRODUCTION XGZP183 is a surface mounting pressure sensor based on CFSensor silicon-glass based piezoresistive pressure sensor die. The sensor die is bonded on a substrate with a plastic cap and packaged in a 6-pin SOP. The small size and high reliability of on-chip integration make this sensor a simple and economical choice for high volume application in a variety of industries. With standard SOP8 package, XGZP183 is easy for users to install by SMT assembly. With good repeatability, linearity, stability and sensibility, XGZP183 is very facile for users to calibrate output & thermal drift and make temperature compensation by using exterior operational amplifier or integrated circuit.(For calibrated pressure sensor if required, please refer to CFSensor pressure sensor module series) The XGZP183 pressure sensor is intended for using with non-corrosive gas or air or liquid. It is highly prohibited to choke the side of pressure diaphragm during actual application. Please consult us if a pressure medium other then above media is to be used. XGZP183_DataSheet_EN_V2.2 www.CFSensor.com 1/7 PDF
Документация на серию XGZP183

MDM291选型 Keywords:

Дата модификации: 02.03.2022

Размер: 444.1 Кб

7 стр.
