XGZP6877D700KPG

CFSensor
Calibrated Pressure Sensor Series V2.4/202205 XGZP6877D PRESSURE SENSOR FEATURES ■ Wide Ranges: -100kPa…0kPa…1000kPa(show in Pressure Range) ■ Optional 2.5V～5.5V Power Supply ■ Gage(Positive&Vacuum) Type ■ For Non-corrosive Gas or Air ■ Calibrated Digital Signal(I2C Interface)(Refer to XGZP6877A for Analog signal) ■ Temp. Compensated: 0℃～+60℃(32℉～+140℉) ■ Current Consumption: 5uA(singl...
развернуть ▼ свернуть ▲

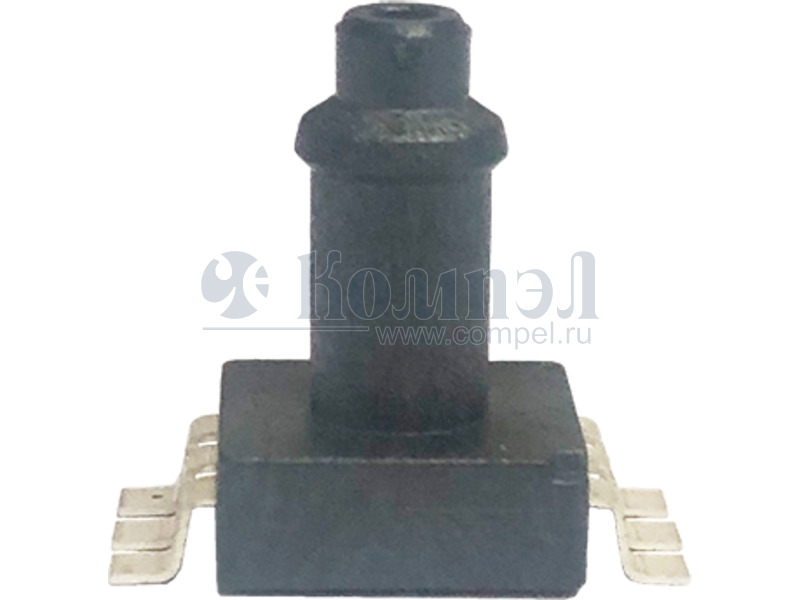

Внешний вид семейства XGZP6877

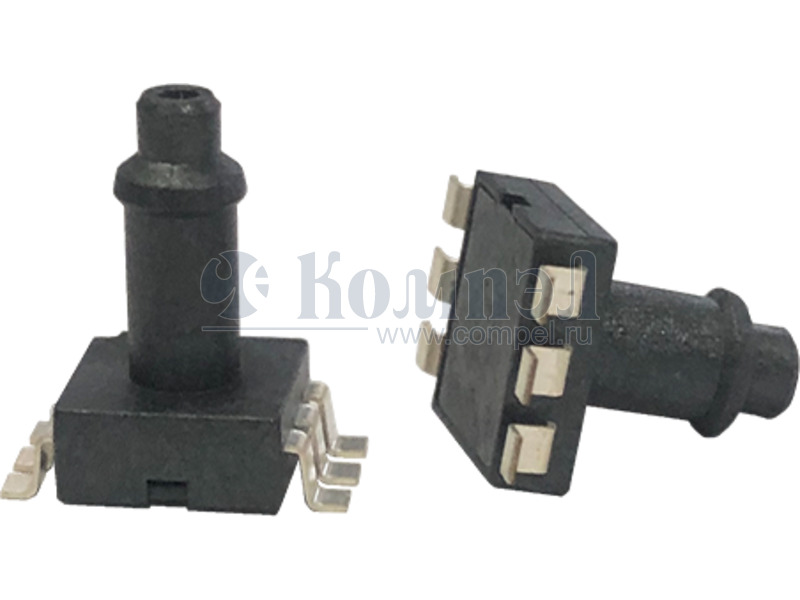

Внешний вид семейства XGZP6877
Внешний вид семейства XGZP6877


Технические характеристики

показать свернуть
Тип измеряемого давления
Измеряемое давление
Тип выхода
Точность
Электрическое подключение
Тип порта
Напряжение питания
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 1

показать свернуть
Calibrated Pressure Sensor Series V2.4/202205 XGZP6877D PRESSURE SENSOR FEATURES ■ Wide Ranges: -100kPa…0kPa…1000kPa(show in Pressure Range) ■ Optional 2.5V～5.5V Power Supply ■ Gage(Positive&Vacuum) Type ■ For Non-corrosive Gas or Air ■ Calibrated Digital Signal(I2C Interface)(Refer to XGZP6877A for Analog signal) ■ Temp. Compensated: 0℃～+60℃(32℉～+140℉) ■ Current Consumption: 5uA(single measurement) ■ Standby Current: <100nA (25°C) APPLICATIONS ■ Medical&Healthy: e.g. ventilators, CPAP, NPWT, DVT, blood analysis, blood pressure monitoring, drug dosing, hospital beds, oxygen concentrators, patient monitoring, sleep apnea equipment, urine analyzers and wound therapy, breast pumps, massage device etc. ■ Consumer&Household: e.g. Robot, UAV, wearable device, coffee makers, washing machines, vacuum cleaners, hand dryers, air pump, air beds etc. ■ Industrial&Automation: e.g. HVAC, flow and liquid level measurement, process control and monitoring, life sciences, pressure switch and meter, IoT and automotive application etc. INTRODUCTION XGZP6877D is a prefect silicon pressure sensor offering a ratiometric digital data(I2C interface) for reading differential pressure over the specified full scale pressure span. The XGZP6877D incorporates a silicon piezoresistive pressure sensor chip and an interior signalconditional Application Specific Integrated Circuit(ASIC) in a SOP8 package, which can be mounted directly on a standard PCB. The XGZP6877D is fully calibrated and temperature compensated for specified span, so XGZP6877D pressure sensor satisfy the perfect accuracry, which is designed for a wide range of application in medical care&health, home appliances, consumer electronic, industry, automotive, loT and other pneumatic devices etc by utilizing a microcontroller or microprocessor with D/A inputs. XGZP6877D pressure sensor is for high volume application at an affordable cost and perfect performance. Customized calibration parameter (e.g.pressure range etc.) are available. XGZP6877D_DataSheet_EN_V2.4 www.CFSensor.com 1 / 17 PDF
Документация на серию XGZP6877D

MDM291选型 Keywords:

Дата модификации: 25.05.2022

Размер: 1.19 Мб

17 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
