Calibrated Pressure Sensor Series V1.1/2022.05 XGZP6888A PRESSURE SENSOR FEATURES ■ Wide Ranges: 0kPa～100kPa…2500kPa(show in Pressure Range) ■ Optional 5V or 3.3V Power Supply ■ Absolute Pressure Type ■ For Non-corrosive Gas or Air or Liquid ■ Calibrated Amplified Analog Signal ■ Temp. Compensated: 0℃～+60℃(32℉～+140℉) ■ Fast response time: ≤0.8mS APPLICATIONS ■ Tire pressure, Engine contro...
развернуть ▼ свернуть ▲

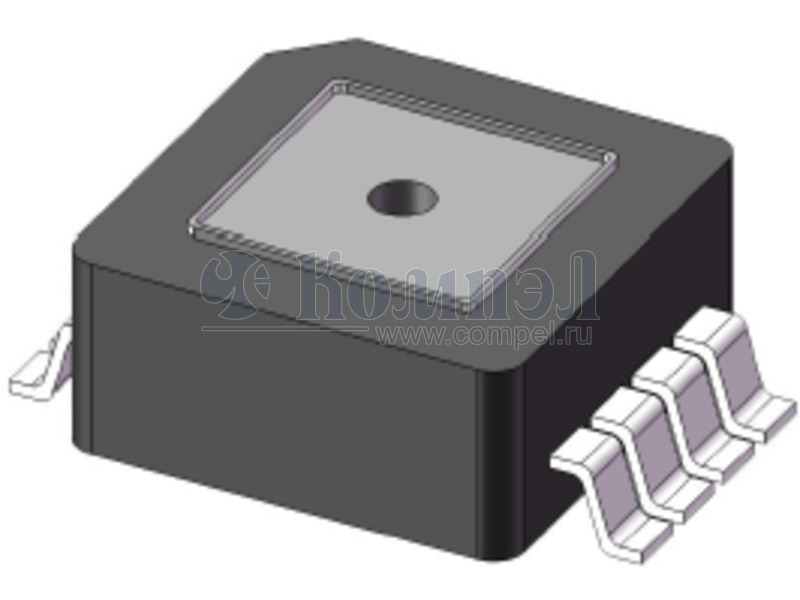

Внешний вид серии XGZP6888A
Внешний вид серии XGZP6878A
Внешний вид серии XGZP6878A
Внешний вид серии XGZP6878A

Технические характеристики

показать свернуть
Тип измеряемого давления
Измеряемое давление
Тип выхода
Точность
Электрическое подключение
Тип порта
Напряжение питания
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 1

показать свернуть
Calibrated Pressure Sensor Series V1.1/2022.05 XGZP6888A PRESSURE SENSOR FEATURES ■ Wide Ranges: 0kPa～100kPa…2500kPa(show in Pressure Range) ■ Optional 5V or 3.3V Power Supply ■ Absolute Pressure Type ■ For Non-corrosive Gas or Air or Liquid ■ Calibrated Amplified Analog Signal ■ Temp. Compensated: 0℃～+60℃(32℉～+140℉) ■ Fast response time: ≤0.8mS APPLICATIONS ■ Tire pressure, Engine control/manifold absolute pressure (MAP), Brake booster, Green gas( LPG and CNG) etc automotive control and measurement. ■ Tank level measurement, Liquid level measurement, White goods(e.g.washer), Heating, Ventilation, Air conditioning, Fire extinguisher, Filter detection, Industrial controls. ■ Weather station and weather reporting device barometers, Sport and leisure equipment, Vacuum measurement, pneumatic device, Absolute pressure meter. INTRODUCTION XGZP6888A is a perfect silicon pressure sensor offering a ratiometric analog interface for reading pressure over the specified full scale pressure span. The XGZP6888A incorporates a silicon piezoresistive pressure sensor die and an interior Application Specific Integrated Circuit(ASIC) in a SMT package The XGZP6888A is fully calibrated and temperature compensated for specified span, so XGZP6888D pressure sensor satisfy the perfect accuracry, which is designed for a wide range of application in medical care&health, home appliances, consumer electronic, industry, automotive, loT and other pneumatic devices etc by utilizing a microcontroller or microprocessor with A/D inputs. XGZP6888A pressure sensor is for high volume application at an affordable cost but perfect performance. Customized calibrations(working voltage, output voltage, pressure range etc.) are available. XGZP6888A_DataSheet_EN_V1.1 www.CFSensor.com 1/9 PDF
Документация на серию XGZP6888A

MDM291选型 Keywords:

Дата модификации: 26.05.2022

Размер: 597.3 Кб

9 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
