CHB1000LF15D200G-SP12

Cheemi
Cheemi Technology Co., Ltd DATA SHEET Hall Effect Current Sensor P/N: CHB1000LF15D200G-SP12 IPN=1000A Feature ● Closed- loop (compensated) current transducer ● Supply voltage: DC ±15~24V ● Capable measurement of currents: DC, AC,pulse with galvanic isolation between primary circuit and secondary circuit. Advantages ● ● ● ● ● High accuracy Easy installation Low temperature drift Optimized...
развернуть ▼ свернуть ▲

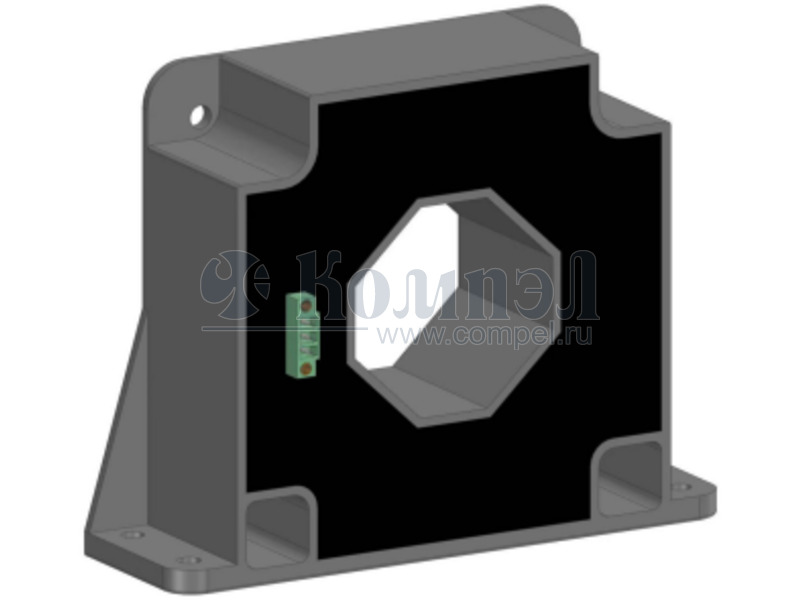

Внешний вид CHB1000LF15D200G-SP12

Технические характеристики

показать свернуть
Пиковый измеряемый ток
Тип выходного сигнала
Напряжение питания
Размер 134×134×58.6 мм
Рабочая температура
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 1

показать свернуть
Cheemi Technology Co., Ltd DATA SHEET Hall Effect Current Sensor P/N: CHB1000LF15D200G-SP12 IPN=1000A Feature ● Closed- loop (compensated) current transducer ● Supply voltage: DC ±15~24V ● Capable measurement of currents: DC, AC,pulse with galvanic isolation between primary circuit and secondary circuit. Advantages ● ● ● ● ● High accuracy Easy installation Low temperature drift Optimized response time High immunity to external interference ● Very good linearity ● Can be customized ● ● ● ● ● The application of variable frequency electrical appliances AC/DC variable-speed drive Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Inverter applications Applications Electrical data：（Ta=25℃，Vc= ±15VDC） Ref Parameter Rated input CHB1000LF15D200G-SP12 Ipn(A) Measuring range ±1000 Ip(A) 0～±2720 Turns ratio Np/NS (T) Output current rms IS(mA) 1:5000 ±200*IP/IPN Secondary coil resistance RS (Ω) 18 [(VC-1.2V)/(IS*0.001)]-RS Inside resistance RM (Ω) Considering the influence of power supply fluctuation, the power supply voltage value is 95% of the standard value during calculation; Supply voltage VC(V) Accuracy XG(%) Offset current IOE(mA) Temperature variation of IOE IOT(mA/°C) Linearity error εr(%FS) Di/dt accurately followed（A/µs） （±15～±24） ±5% @IPN,T=25°C @IP=0,T=25°C @IP=0,-40 ~ +85°C < ±0.3 < ±0.2 < ±0.005 < 0.1 > 100 1 Cheemi Technology Co., Ltd Tel: 025-85996365 E-mail: info@cheemi-tech.com www. cheemi-tech.com Add:3/F,Building6,Jingang Science and Technology Innovation Park,No.1 Kechuang Road, Qixia District, Nanjing City,Jiangsu Province, China. Rev：V1.0 PDF
Документация на CHB1000LF15D200G-SP12

Дата модификации: 29.01.2026

Размер: 797.4 Кб

3 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
