CHB200L2F15D100S1

Cheemi
Cheemi Technology Co., Ltd 1 / 5 CHB200L2F15D100S1 For the electronic measurement of currents: DC, AC, pulsed..., with galvanic separation between the primary circuit and the secondary circuit. Advantages - Excellent accuracy - Very good linearity - Low temperature drift - Optimized response time - Wide frequency bandwidth - No insertion losses - High immunity to external interference - Curr...
развернуть ▼ свернуть ▲

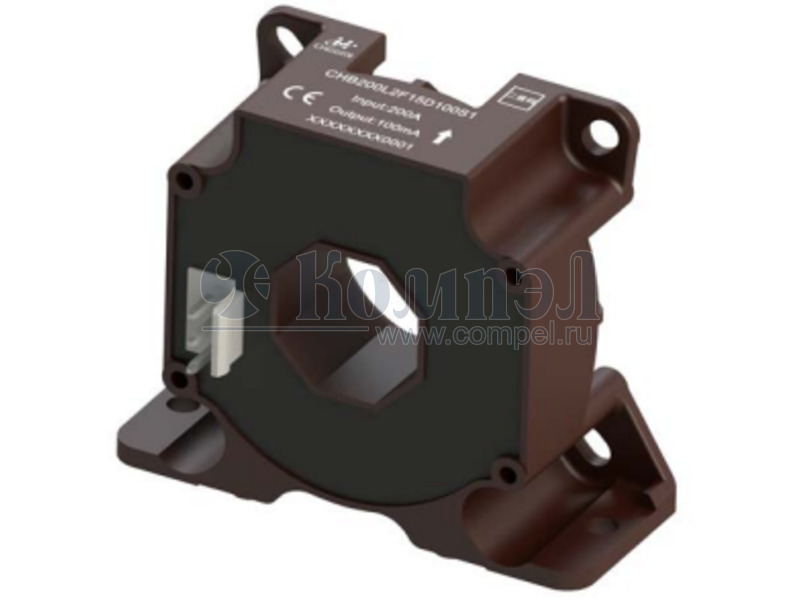

Внешний вид CHB200L2F15D100S1

Технические характеристики

показать свернуть
Пиковый измеряемый ток
Тип выходного сигнала
Напряжение питания
Размер 61×50.7×23.6 мм
Рабочая температура
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 1

показать свернуть
Cheemi Technology Co., Ltd 1 / 5 CHB200L2F15D100S1 For the electronic measurement of currents: DC, AC, pulsed..., with galvanic separation between the primary circuit and the secondary circuit. Advantages - Excellent accuracy - Very good linearity - Low temperature drift - Optimized response time - Wide frequency bandwidth - No insertion losses - High immunity to external interference - Current overload capability. Special Features - Connection of secondary on JST B 3P-VH connector Feature - Closed loop (compensated) current transducer using the Hall effect - Insulating plastic case recognized according to UL 94-VO. Standards - EN 50178:1997 1) - 1) - EN 50155: 2017 2) equipment according to IEC 61000-4-5) Excepted test according to chapter 10.2.6.2 (Test - 2) Additional information available on request. - EN 50121-3-2: 2016 Applications - AC variable speed drives and servo motor drives - Static converters for DC motor drives - Propulsion and braking choppers - Battery supplied applications - Propulsion converters - Uninterruptible Power Supplies (UPS) - Auxiliary converters - Switched Mode Power Supplies (SMPS) - Battery chargers. - Power supplies for welding applications - Single or three phase inverters www.cheemi-tech.com Rev：v2.0 PDF
Документация на CHB200L2F15D100S1

Дата модификации: 29.01.2026

Размер: 326.2 Кб

5 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
