CHB300L3F15D150S1

Cheemi
Cheemi Technology Co., Ltd 1 / 6 CHB300L3F15D150S1 For the electronic measurement of currents: DC, AC, pulsed..., with galvanic separation between the primary circuit and the secondary circuit. Advantages - Excellent accuracy - Very good linearity - Low temperature drift - Optimized delay time - Wide frequency bandwidth - No insertion losses - High immunity to external interference - Current...
развернуть ▼ свернуть ▲

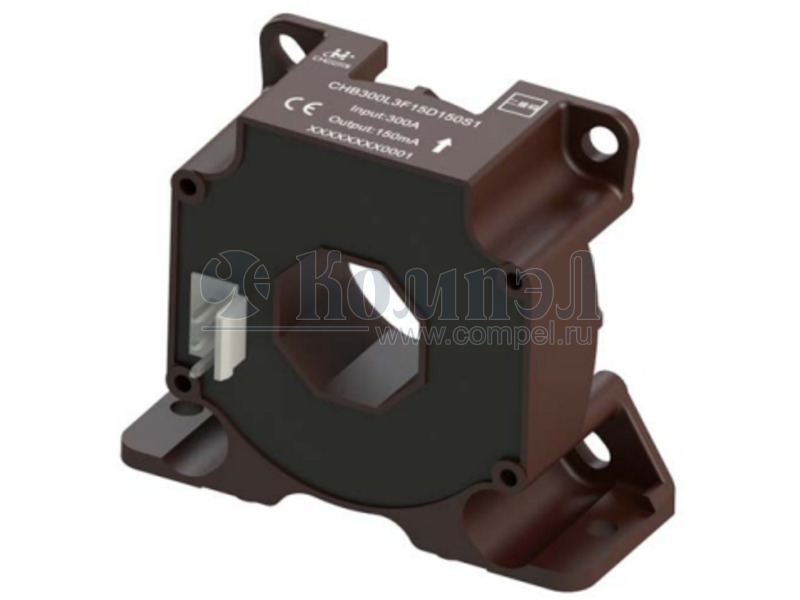

Внешний вид CHB300L3F15D150S1

Технические характеристики

показать свернуть
Пиковый измеряемый ток
Тип выходного сигнала
Напряжение питания
Размер 68×56.5×26 мм
Рабочая температура
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 1

показать свернуть
Cheemi Technology Co., Ltd 1 / 6 CHB300L3F15D150S1 For the electronic measurement of currents: DC, AC, pulsed..., with galvanic separation between the primary circuit and the secondary circuit. Advantages - Excellent accuracy - Very good linearity - Low temperature drift - Optimized delay time - Wide frequency bandwidth - No insertion losses - High immunity to external interference - Current overload capability. Special Features - TA = −40 … +85 °C - Connection of secondary on JST B 3P-VH connector Feature - Closed loop (compensated) current transducer using the Hall effect. - Insulating plastic case recognized according to UL 94-V0. Standards - EN 50178:1997 1) - 1) - EN 50155: 2017 2) - 2) Additional information available on request. Excepted test according to IEC 61000-4-5 - UL 508: 2013 - EN 50121-3-2: 2016 Applications - AC variable speed drives and servo motor drives - Propulsion and braking choppers - Static converters for DC motor drives - Propulsion converters - Battery supplied applications - Auxiliary converters - Uninterruptible Power Supplies (UPS) - Battery chargers. - Switched Mode Power Supplies (SMPS) - Power supplies for welding applications - Single or three phase inverters www.cheemi-tech.com Rev：v2.2 PDF
Документация на CHB300L3F15D150S1

Дата модификации: 29.01.2026

Размер: 436.5 Кб

6 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
