CA-IS3760LN

Chipanalog
CA-IS3760, CA-IS3761, CA-IS3762, CA-IS3763 Version 1.02, 2022/06/21 Shanghai Chipanalog Microelectronics Co., Ltd. CA-IS376x High-Speed Six-Channel Digital Isolators 1. Features • Robust Galvanic Isolation of Digital Signals  High lifetime: >40 years  Up to 3750 VRMS isolation rating (narrow body packages) and up to 5000 VRMS isolation rating (wide body packages)  ±150 kV/μs typical...
развернуть ▼ свернуть ▲

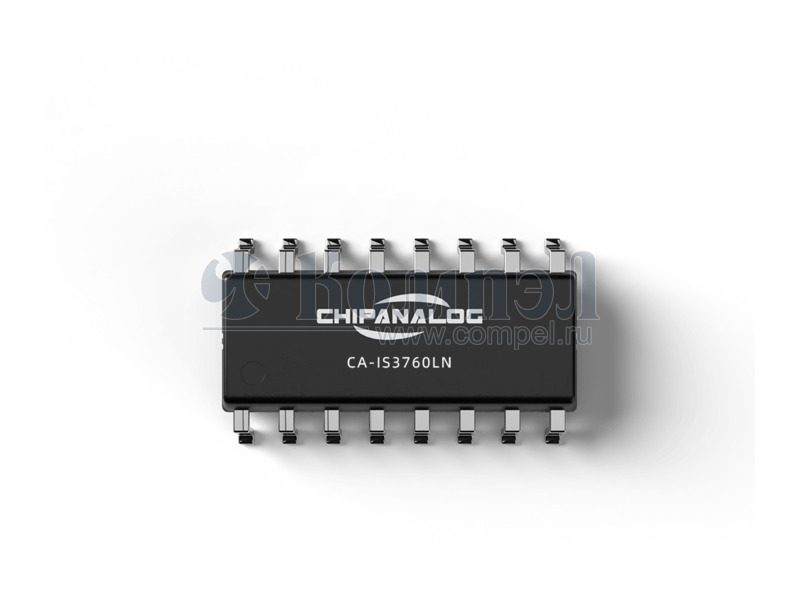

Внешний вид CA-IS3760LN

Технические характеристики

показать свернуть
Корпус SO-16 SOIC16
Напряжение изоляции RMS
Скорость передачи данных
Диапазон напряжений питания
Рабочая температура
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 1

показать свернуть
Тип Наименование Корпус Упаковка i Изоляция TX RX Скорость Задержка U пит Примечание T раб Карточка
товара
F~ PAI160E30 (2PAI)

SO-16 SOIC16 в ленте 300 шт

 Capacitive isolation 6 General-purpose NBSOIC-16 Digital Isolators ROHS

Файлы 1

показать свернуть
CA-IS3760, CA-IS3761, CA-IS3762, CA-IS3763 Version 1.02, 2022/06/21 Shanghai Chipanalog Microelectronics Co., Ltd. CA-IS376x High-Speed Six-Channel Digital Isolators 1. Features • Robust Galvanic Isolation of Digital Signals  High lifetime: >40 years  Up to 3750 VRMS isolation rating (narrow body packages) and up to 5000 VRMS isolation rating (wide body packages)  ±150 kV/μs typical CMTI  Wide operating temperature range: -40°C to 125°C  Schmitt trigger inputs Interfaces Directly with Most MCUs and FPGAs  Data rate: DC to 150Mbps  Accepts 2.5V to 5.5V supplies  Default output High (CA-IS376xH) and Low (CAIS376xL) Options Low Power Consumption  1.5mA per channel at 1Mbps with VDD = 5.0V  6.6mA per channel at 100Mbps with VDD = 5.0V Best in class propagation delay and skew  12ns typical propagation delay  1ns pulse width distortion  2ns propagation delay skew (chip -to-chip)  5ns minimum pulse width No Start-Up Initialization Required Package Options  Narrow-body SOIC16-NB(N) package  Wide-body SOIC16-WB(W) package Safety Regulatory Approvals  VDE 0884-11 isolation certification  UL According to UL1577  IEC 62368-1, IEC 61010-1, GB 4943.1-2011 and GB 8898-2011 certifications • • • • • • 2. Applications • • • • • • Industrial Automation Motor Control Medical Systems Isolated Power Supplies Solar Inverters Isolated SPI etc. Digital Interfaces Copyright� © 2020, Chipanalog Incorporated Shanghai Chipanalog Microelectronics Co., Ltd. 3. General Description The CA-IS376x devices are high-performance six-channel, unidirectional digital isolators with up to 3.75kVRMS (narrowbody package) or 5kVRMS (wide-body package) isolation rating and ultra-fast data rate. The CA-IS376x devices offer high electromagnetic immunity and low emissions at low power consumption while isolating different ground domains and block high-voltage/high-current transients from sensitive or human interface circuitry. Each isolation channel has a logic input and output buffer separated by capacitive silicon dioxide (SiO2) insulation barrier, the integrated Schmitt trigger on each input provide excellent noise immunity. The CA-IS376x family offers all possible unidirectional channel configurations to accommodate any 6-channel design digital I/O applications, especial for the multiple SPI devices isolation. The CA-IS3760 features six channels transferring digital signals in one direction; The CA-IS3761 device has five forward and one reverse-direction channels; The CA-IS3762 device offers four forward and two reversedirection channels isolation; The CA-IS3763 provides further design flexibility with three channels in each direction. All devices of this family features default outputs. When the input is either not powered or is open-circuit, the default output is low for devices with suffix L and high for devices with suffix H, see the Ordering Information for suffixes associated with each option. The CA-IS376x series devices are specified over the -40°C to +125°C operating temperature range and are available in 16-pin SOIC narrow body package and 16-pin SOIC wide body package. Device information Part number CA-IS3760 CA-IS3761 CA-IS3762 CA-IS3763 Package Package size (NOM) SOIC16-NB (N) 9.90 mm × 3.90 mm SOIC16-WB(W) 10.30 mm × 7.50 mm �3 PDF
Документация на CA-IS3760HB

Дата модификации: 22.08.2022

Размер: 857.3 Кб

23 стр.

    Публикации 1

    показать свернуть
    17 апреля 2023
    новость

    Полупроводниковые микросхемы Chipanalog на складе КОМПЭЛ

    Компания Shanghai Chipanalog Microelectronics Co., Ltd. (Chipanalog) является одним из ведущих производителей полупроводниковых микросхем в Китае. Ее основной продукцией являются трансиверы различных интерфейсов, изоляторы аналоговых и цифровых... ...читать

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
