EUC-150S070STA

INVENTRONICS Inc.
AC-DC сетевой преобразователь - P вых: 150 Вт; Выход: 0.7 А; U1: 107...214 В; I1: 700 мА; Стабилизация: ток; Вход: 110/220В авто
развернуть ▼ свернуть ▲

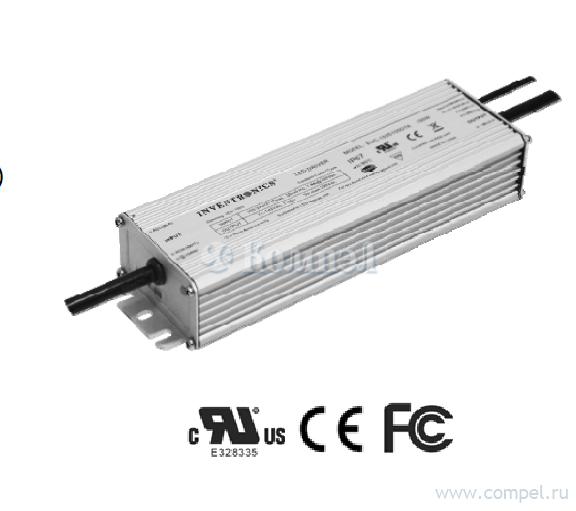

Фотография серии EUC-150A

Технические характеристики

показать свернуть
Тип преобразователя
Мощность выходная
Диапазон выходных напряжений
Диапазон выходных токов
Напряжение сети/входное номинальное
Режим стабилизации
Тип диммирования
Исполнение конструктивное
Степень защиты (IP)
Подстройка выходных параметров
Диапазон входных напряжений (AC)
Напряжение изоляции вход-выход
Количество выходов
Коэффициент мощности
Эффективность
Функция защиты
Температура рабочая
Размер 199×68×40 мм
Применение
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 2

показать свернуть
EUC-150SxxxDTA(STA) 150W Constant Current IP67 Driver Rev. D Features • High Efficiency (Up to 93%) • Constant Current Output • 0-10V Dimming Control • Input Surge Protection: 4kV line-line, 6kV line-earth • All-Around Protection: OVP, SCP, OTP • Waterproof (IP67) and UL Dry / Damp / Wet Location • SELV Output • TYPE HL, for use in a Class I, Division 2 hazardous (Classified) location • UL Type TL (Temperature Limited) Description The EUC-150SxxxDTA(STA) series is a 150W, constant-current LED driver that operates from 90-305 Vac input with excellent power factor. It is created for many lighting applications including high bay, tunnel and roadway. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature. Models Output Current 530 mA 700 mA 860 mA 1050 mA 1400 mA 2100 mA 2450 mA 2800 mA 3150 mA 3500 mA 4200 mA Input Voltage Range(1) 90 ~ 305 Vac 127~300 Vdc 90 ~ 305 Vac 127~300 Vdc 90 ~ 305 Vac 127~300 Vdc 90 ~ 305 Vac 127~300 Vdc 90 ~ 305 Vac 127~300 Vdc 90 ~ 305 Vac 127~300 Vdc 90 ~ 305 Vac 127~300 Vdc 90 ~ 305 Vac 127~300 Vdc 90 ~ 305 Vac 127~300 Vdc 90 ~ 305 Vac 127~300 Vdc 90 ~ 305 Vac 127~300 Vdc Output Voltage Range Max. Output Power Typical Efficiency (2) 120Vac 220Vac 142~283Vdc 150 W 93.0% 0.99 0.95 EUC-150S053DTA(STA) 107~214Vdc 150 W 92.5% 0.99 0.95 EUC-150S070DTA(STA) 87~174Vdc 150 W 91.5% 0.99 0.95 EUC-150S086DTA(STA) 71~142Vdc 150 W 92.0% 0.99 0.95 EUC-150S105DTA(STA) 53~107Vdc 150 W 91.0% 0.99 0.95 EUC-150S140DTA(STA) (4) 36~71.5Vdc 150 W 91.0% 0.99 0.95 EUC-150S210DTA(STA) (4) 31~61.2Vdc 150 W 91.0% 0.99 0.95 EUC-150S245DTA(STA) (4) 27~53.5Vdc 150 W 91.0% 0.99 0.95 EUC-150S280DTA(STA)(4) 24~47Vdc 150 W 91.0% 0.99 0.95 EUC-150S315DTA(STA) (4) 22~43Vdc 150 W 91.5% 0.99 0.95 EUC-150S350DTA(STA) (4) 18~36Vdc 150 W 91.0% 0.99 0.95 EUC-150S420DTA(STA) (4) Power Factor Model Number (3) Notes: (1) UL, FCC certified input voltage range: 100-277Vac or 127-300Vdc; otherwise: 100-240Vac or 127250Vdc (except KS) (2) Measured at 100% load and 220 Vac input. (3) All the models are certificated to KS, except EUC-150S053DTA(STA) (4) SELV output 1 / 11 Specifications are subject to changes without notice. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com PDF
Документация на EUC-150S070DTA

Microsoft Word - DS-EUC-150SxxxDTA(STA)_Rev.D

Дата модификации: 03.04.2018

Размер: 690.7 Кб

11 стр.

EUC-150SxxxDTA(STA) Driving the Lighting Revolution Rev. A Features • Constant Current Output • Ultra High Efficiency (Up to 93%) • Active Power Factor Correction (0.99 Typical) • Compact Package Design • Dimming Control • Lightning Protection • All-Around Protection: SCP, OTP, OVP • Waterproof (IP67) • SELV Description The EUC-150SxxxDTA(STA) series operates from a 90 ~ 305 Vac input range. They are designed to be highly efficient and highly reliable. The standard features include dimming control, lightning protection, over voltage protection, short circuit protection, and over temperature protection. Models Input Voltage Range(1) Output Current Output Voltage Range Max. Output Power Typical Efficiency (2) Power Factor 120Vac 220Vac Model Number (3) 530 mA 90 ~ 305 Vac 142~283Vdc 150 W 93.0% 0.99 0.95 EUC-150S053DT(ST)A 700 mA 90 ~ 305 Vac 107~214Vdc 150 W 92.5% 0.99 0.95 EUC-150S070DT(ST)A 1050 mA 90 ~ 305 Vac 71~142Vdc 150 W 92.0% 0.99 0.95 EUC-150S105DT(ST)A 1400 mA 90 ~ 305 Vac 53~107Vdc 150 W 91.0% 0.99 0.95 EUC-150S140DT(ST)A(4) 2100 mA 90 ~ 305 Vac 36~71.5Vdc 150 W 91.0% 0.99 0.95 EUC-150S210DT(ST)A(4) 2450 mA 90 ~ 305 Vac 31~61.2Vdc 150 W 91.0% 0.99 0.95 EUC-150S245DT(ST)A(4) 2800 mA 90 ~ 305 Vac 27~53.5Vdc 150 W 91.0% 0.99 0.95 EUC-150S280DT(ST)A(4) 3150 mA 90 ~ 305 Vac 24~47Vdc 150 W 91.0% 0.99 0.95 EUC-150S315DT(ST)A(4) Notes: (1) Certificated input Voltage range100-240Vac for CE only (2) Measured at full load and 220 Vac input (3) A suffix –xxxx may be added to denote variations or modifications to the standard product, where x can be any alphanumeric character or blank (4) SELV Output Input Specifications Parameter Min. Typ. Max. Input Voltage 90 V - 305 V Input Frequency 47 Hz - 63 Hz Leakage Current - - 1 mA Notes At 277Vac 60Hz input 1 / 10 Specifications are subject to changes without notice. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com PDF
Документация на серию EUC-150A

Microsoft Word - DS-EUC-150SxxxDTA_STA_ Rev.A

Дата модификации: 21.06.2013

Размер: 626.9 Кб

10 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
