JCK1C331M080105

JB Capacitors Company
Конденсатор алюминиевый 16 В x 330 мкФ ±20%, SMD, -40...105 °C, 2000 ч
развернуть ▼ свернуть ▲

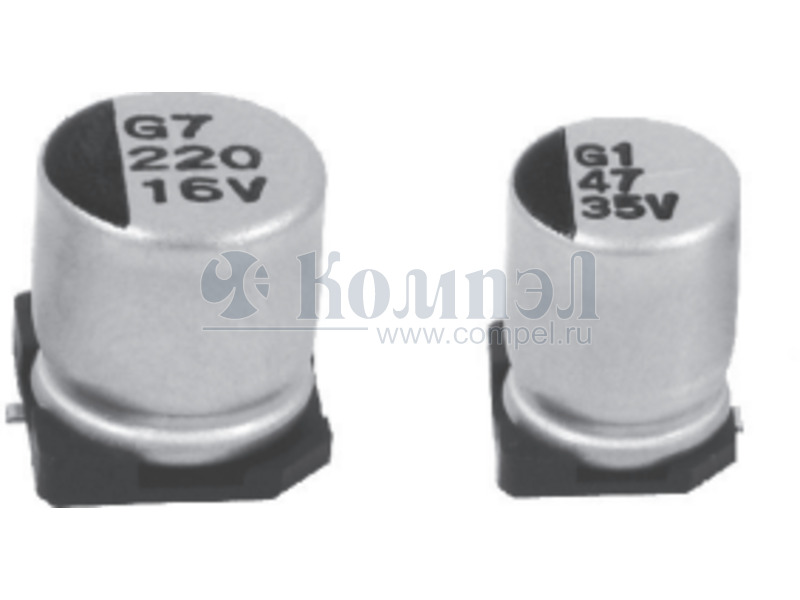

Внешний вид серии JCK

Технические характеристики

показать свернуть
Номинальная ёмкость
Допуск ёмкости
Номинальное напряжение
Диаметр корпуса
Высота корпуса
Рабочая температура
Срок службы
Способ монтажа
  Примечания: Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 330uF, Surface Mount, 3333
Диаметр x Высота 8.3 мм
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 25

показать свернуть
Тип Наименование Корпус Упаковка i Ёмкость Допуск Напряжение Диаметр Высота Траб Наработка Монтаж Примечания Выводы Карточка
товара
P- 16TRV330M8X10.5 (RUB)

—

 — — Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 330uF, Surface Mount, 3333 —
A+ CE025M0330REG-1010 (YAG)


ECAPSMD 330/25V 1010 105C CE (YAG) 		— в ленте 500 шт конденсатор алюминиевый SMD 330 мкФ 25 В -40...105 °C 2000 ч —
A+ CA016M0330REF-0810 (YAG)


ECAPSMD 330/16V 0810 CA (YAG) 		— в ленте 500 шт конденсатор алюминиевый SMD 330 мкФ 16 В -40...85 °C 2000 ч Surface Mount Aluminum electrolytic —
A+ EEETC1C331P (PAN)

— в ленте 500 шт Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 330uF, Surface Mount, 4141 —
A+ EEETP1C331AP (PAN)

— в ленте 500 шт Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 330uF, Surface Mount, 4141 —
A+ EEHZA1E331P (PAN)

— в ленте 500 шт —
A+ 16SVP330M (PAN)

— в ленте 400 шт —
A+ EEEFK1C331P (PAN)

— 500 шт Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 330uF, Surface Mount, 3333 —
A+ 25SVPF330M (PAN)

— в ленте 400 шт High Voltage / Large capacitance —
A+ JCK1E331M100105 (JB)

— 500 шт Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 330uF, Surface Mount, 4141 —
A+ CA025M0330REF-0810 (YAG)


ECAPSMD 330/25V 0810 CA (YAG) 		— в ленте 500 шт конденсатор алюминиевый SMD 330 мкФ 25 В -40...85 °C 2000 ч Surface Mount Aluminum electrolytic —
A+ CA025M0330REG-1010 (YAG)

— 500 шт конденсатор алюминиевый SMD 330 мкФ 25 В -40...85 °C 2000 ч Surface Mount Aluminum electrolytic —
A+ EEETK1E331UP (PAN)

— 500 шт Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 330uF, Surface Mount, 4141 —
A+ EEEHB1C331AP (PAN)

— 500 шт Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 330uF, Surface Mount, 4141 —
A+ EEHZC1E331P (PAN)

— 500 шт —
A+ EEHZC1E331V (PAN)

— 500 шт —
A+ EEEFK1C331GP (PAN)

— 500 шт Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 330uF, Surface Mount, 3333 —
A+ EEEFK1C331GV (PAN)

— 500 шт Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 330uF, Surface Mount, 3333 —
A+ EEVTG1E331Q (PAN)

— 200 шт Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 330uF, Surface Mount, 5353 —
A+ EEETP1C331AV (PAN)

— 500 шт

 Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 330uF, Surface Mount, 4141 —
A+ EEETP1E331AP (PAN)

— 500 шт Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 330uF, Surface Mount, 4141 —
A+ EEETP1E331AV (PAN)

— 500 шт

 Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 330uF, Surface Mount, 4141 —
A+ EEHZE1E331P (PAN)

— 500 шт —
A+ EEHZE1E331V (PAN)

— 500 шт Hybrid, Low ESR & High Temp; anti vibration —
A+ EEEHBE331UAP (PAN)

— 500 шт Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 330uF, Surface Mount, 3333 —

Сопутствующие товары 24

показать свернуть
Наименование Корпус Упаковка Краткое описание Карточка
товара
T521X337M016ATE025 (KEM)

— 100 шт Конденсатор танталовый —
597D337X0020H2T (VISHAY)

— 1 шт

 —
T95R337K016LSAL (VISHAY)

— 1 шт

 — —
T97H337K020HSA (VISHAY)

—

 — —
T97F337K020ESA (VISHAY)

— 1 шт

 — —
T59EE337M016C0025 (VISHAY)

— 1 шт

 — —
T54EE337M016ESA025 (VISHAY)

—

 — —
T52M1337M016C0055 (VISHAY)

—

 — —
T52M1337M016C0040 (VISHAY)

— 135 шт

 — —
597D337X9020H2T (VISHAY)

— 100 шт

 —
597D337X9020F2T (VISHAY)

— 21 шт

 — —
595D337X9016R2T (VISHAY)

— 600 шт

 —
594D337X9016R2T (VISHAY)

— Конденсатор танталовый 16 В 330 мкФ ±10% типоразмер SMD —
594D337X0016R2T (VISHAY)

— 1 шт Конденсатор танталовый 16 В 330 мкФ ±20% типоразмер SMD —
T25D337M016CSZ (VISHAY)

—

 — —
T545X337M016ATE025 (KEM)

— 340 шт

 — —
T545X337K016ATE025 (KEM)

—

 — —
T543X337M016AHE025 (KEM)

—

 — —
T541X337M016BH6710 (KEM)

—

 — —
T541X337M016AH6720 (KEM)

—

 — —
T541X337M016AH6710 (KEM)

— 1 шт

 — —
T523H337M016APE070 (KEM)

— — —
T521X337M016ATK025 (KEM)

—

 — —
T521X337M016ATE050 (KEM)

TANT73434373X43X43MM в ленте 500 шт TANT73434373X43X43MM —

Файлы 2

показать свернуть
SMD Aluminum Electrolytic Capacitor – JCK FEATURES     Chip type, operating with wide temperature range -40~+105℃. Load Life of 1,000~2,000 hours Designed for surface mounting on high density circuit board. Emboss carrier tape packing system is available for automatic insertion. SPECIFICATIONS Operating Temperature Voltage Range Capacitance Range Capacitance Tolerance Leakage Current -40℃ ~ +105℃ 4V ~ 100V.DC 0.1 ~ 10000μF ±20% at 120Hz, 20℃ Leakage current (Φ4~Φ10) ≤0.01CV or 3μA, whichever is greater. (After 2 minutes application of rated voltage) Leakage current (Φ12.5~Φ16) ≤0.03CV or 4μA, whichever is greater. (After 1 minutes application of rated voltage) Dissipation Factor (Tan δ) Measurement Frequency: 120Hz, Temperature: 20℃ Rated Voltage (V) Φ4~Φ10 Tan δ (Max.) Φ12.5~Φ16 Stability At Low Temp. 4 0.35 0.42 6.3 0.3 0.38 10 0.24 0.34 Measurement Frequency: 120Hz Impedance Ratio ZT/Z20 (Max.) Load Life Rated Voltage (V) Z(-25℃)/ Z(-40℃)/ Z(-25℃)/ Φ12.5~Φ16 Z(-40℃)/ Φ4~Φ10 Z(20℃) Z(20℃) Z(20℃) Z(20℃) 16 0.2 0.3 4 7 15 7 17 25 0.16 0.26 6.3 4 8 5 12 10 3 6 4 10 35 0.14 0.22 16 2 4 3 8 50 0.14 0.18 25 2 4 2 5 63 0.12 0.14 35 2 3 2 4 100 0.12 0.12 50~63 2 3 2 3 100 3 4 2 3 After 2000 hours (1000hrs. forΦ4~Φ6.3x5.8) application of rated voltage at 105℃, They meet the characteristics listed below. Capacitance Change Dissipation Factor Leakage Current within ± 20% of initial value for capacitors of 10V or more (within ± 30% of initial value for capacitors of 4V & 6.3V) 200% or less of initial specified value Initial specified value or less Self Life After leaving capacitors under no load at 105℃ for 1000 hours, They meet the specified value for load life characteristics listed above. Resistance to Soldering Heat After reflow soldering and restored at room temperature, they meet the characteristics listed below. Capacitance Change Dissipation Factor Leakage Current Within ± 10% of initial value Initial specified value or less Initial specified value or less DRAWING (Unit: mm) *4 ― *4 ― *1 Voltage mark for 6.3V is [6V] or [6.3V] ΦDxL A B C E±0.2 L 4x5.4 1.8 4.3 4.3 1.0 5.4 5x5.4 2.1 5.3 5.3 1.3 5.4 6.3x5.4 2.4 6.6 6.6 2.2 5.4 *2 Applicable toΦ8x10.5~Φ10 6.3x7.7 2.4 6.6 6.6 2.2 7.7 8x6.2 3.3 8.3 8.3 2.2 6.2 8x10.5 2.9 8.3 8.3 3.1 10.5 *3 Applicable toΦ12.5~Φ16 10x10.5 3.2 10.3 10.3 4.4 10.5 10x13.5 3.2 10.3 10.3 4.4 13.5 *4 Surface Marking Types: jbK, jK, CK, XT 12.5x13.5 4.7 13.0 13.0 4.4 13.5 12.5x16 4.7 13.0 13.0 4.4 16.0 16x16.5 5.5 17.0 17.0 6.7 16.5 (mm) 16x21.5 5.5 17.0 17.0 6.7 21.5 FREQUENCY COEFFICIENT OF ALLOWABLE RIPPLE CURRENT Frequency 50Hz 120Hz 0.1~68µF 0.70 1.00 Φ4~Φ10 100~3300µF 0.85 1.00 Coefficient ~68µF 0.75 1.00 Φ12.5~Φ16 100~680µF 0.8 1.00 1000~10000µF 0.85 1.00 Please visit our website to get more update data, those data & specification are subject 300Hz 1KHz 1.17 1.36 1.08 1.20 1.35 1.57 1.23 1.34 1.10 1.13 to change without notice. www.jbcapacitors.com www.jbcapacitors.hk E-mail: info@jbcapacitors.com Tel : (852)2790 5091 10KHz~ 1.50 1.30 2.00 1.50 1.15 Fax: (852)8169 8283 PDF
