RTC-31

Kingbright
HOUSING FOR LED LAMP Part Number: RTC-31 Features z Suitable for back panel illumination, circuit board indicator, LED indicator. z Recommended hole diameter: 4.4 mm. z Recommended panel thickness:1.5mm. z Housing UL rating:94V-0. z Housing material: type 66 nylon. z RoHS compliant. Package Dimensions K g in g i r b t h Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance ...
развернуть ▼ свернуть ▲

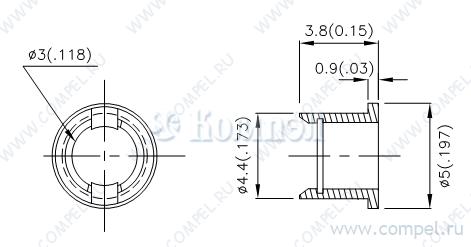

Чертеж RTC-31

Технические характеристики

показать свернуть
Серии LED совместимые с держателями
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 2

показать свернуть
HOUSING FOR LED LAMP Part Number: RTC-31 Features z Suitable for back panel illumination, circuit board indicator, LED indicator. z Recommended hole diameter: 4.4 mm. z Recommended panel thickness:1.5mm. z Housing UL rating:94V-0. z Housing material: type 66 nylon. z RoHS compliant. Package Dimensions K g in g i r b t h Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25(0.01") unless otherwise noted. 3. Specifications are subject to change without notice. SPEC NO: DSAB7120 REV NO: V.9 DATE: JUN/18/2016 PAGE: 1 OF 2 APPROVED: Wynec CHECKED: Allen Liu DRAWN: F.Zhang ERP: 2100100230 PDF
Документация на RTC-31

RTC-31(Ver.9)

Дата модификации: 18.06.2016

Размер: 142.9 Кб

2 стр.

HOUSING FOR LED LAMP Part Number: RTC-31 Features zSUITABLE FOR BACK PANEL ILLUMINATION, CIRCUIT BOARD INDICATOR, LED INDICATOR. zUL RATING : 94V-0. zHOUSING MATERIAL: TYPE 66 NYLON. zRECOMMENDED HOLE SIZE:DIAMETER 4.4MM. zRECOMMENDED PANEL THICKNESS:1MM. zRoHS COMPLIANT. Package Dimensions Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25(0.01") unless otherwise noted. 3. Specifications are subject to change without notice. SPEC NO: DSAB7120 REV NO: V.6 DATE: JUL/07/2007 PAGE: 1 OF 1 APPROVED: WYENC CHECKED: Allen Liu DRAWN: D.M.LIU ERP:2100100230 PDF
Документация RTC-31

RTC-31(Ver.6)

Дата модификации: 07.07.2007

Размер: 57.5 Кб

1 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
