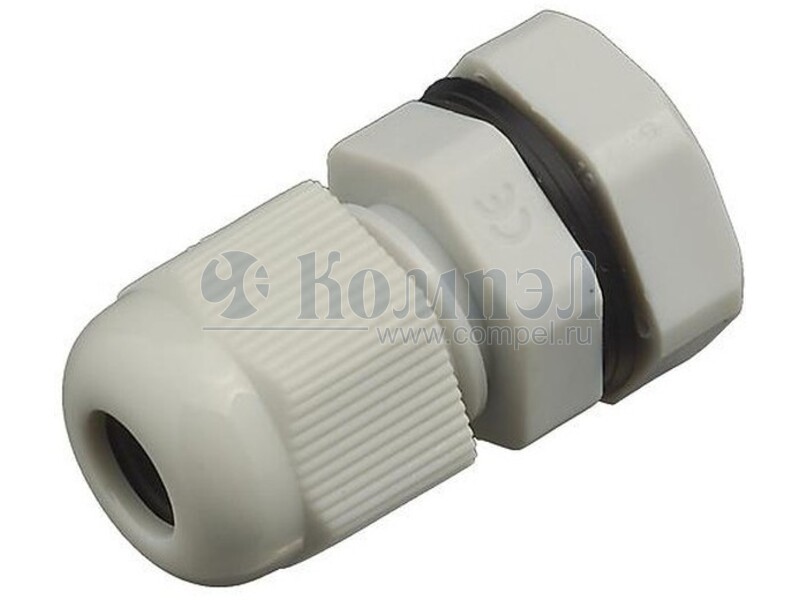

L-KLS8-0607-PG-07-G2

KLS
Nylon Cable Glands K KLS8-0607 S8 060 PG T Type N Nylon l C Cable bl Gl Glands d Material:Nylon PA6 Sealing:NBR, EPDM Working temperature:-40℃ ~100℃ , (120℃,short time) Ch Characteristics:IP68(Rotate t i ti IP68(R t t th the part, t and d use O-ring) O i ) Color: Black , light grey Item No. Cable Range >IØI< (mm) Outer diameter Mounting of thread hole diameter (mm) (mm) Thread length...
развернуть ▼ свернуть ▲


Файлы 1

показать свернуть
Nylon Cable Glands K KLS8-0607 S8 060 PG T Type N Nylon l C Cable bl Gl Glands d Material:Nylon PA6 Sealing:NBR, EPDM Working temperature:-40℃ ~100℃ , (120℃,short time) Ch Characteristics:IP68(Rotate t i ti IP68(R t t th the part, t and d use O-ring) O i ) Color: Black , light grey Item No. Cable Range >IØI< (mm) Outer diameter Mounting of thread hole diameter (mm) (mm) Thread length L(mm) Joint length H(mm) Wrench diameter (MM) PG-7 3~6.5 12.5 12.5~12.8 8 22 16 PG-7S 2~5 12.5 12.5~12.8 8 22 16 PG-9 4~8 15.2 15.2~15.5 8 26 19 PG-9S 2~6 15.2 15.2~15.5 8 26 19 PG-11 5~10 18.6 18.6~18.9 8 27 22 PG-11S 3~7 18.6 18.6~18.9 8 27 22 PG-13.5 6~12 20.4 20.4~20.7 9 28 24 PG-13.5S 5~9 20.4 20.4~20.7 9 28 24 PG-16 10~14 22.5 22.5~22.8 10 30 27 PG-16S 7~12 22.5 22.5~22.8 10 30 27 PG-19 12~16 24 24~24.3 10 30 27 PG-19S 10~13 24 24~24.3 10 30 27 PG-21 13~18 28.3 28.3~28.6 10 35 33 PG-21S 9~16 28.3 28.3~28.6 10 35 33 PG-25 16~21 30 30~30.3 11 34 35 PG-25S 13~18 30 30~30.3 11 34 35 PG-29 18~25 37 37~37.3 12 40 42 PG-29S 13~20 37 37~37.3 12 40 42 PG-36 22~32 47 47~47.3 14 48 52 PG-36S 20~26 47 47~47.3 14 48 52 PG-42 32~38 54 54~54.3 14 49 60 PG-42S 25~31 54 54~54.3 14 49 60 PG-48 37~44 59.3 59.3~59.6 14 50 64 PG-48S 29~35 59.3 59.3~59.6 14 50 64 PG-63 42~50 70 70~70.3 27 60 72 Oder Information KLS8-0607-PG-7-B0 0607: PG Type Nylon Cable Glands PG-7: Item No. B: Color Code: B-Black G-Gray All specification & dimensions are subject to change,please call your nearest KLS sales represesntative for update information PDF
Документация на L-KLS8-0607-PG-11-B2

Дата модификации: 23.10.2023

Размер: 53.2 Кб

1 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
