IB0505LS-1WR3

Mornsun
DC/DC Converter IB05_LS-1WR3 Series FEATURES 1W isolated DC-DC converter Fixed input voltage, regulated single output  Continuous short-circuit protection  No-load input current as low as 5mA  Operating ambient temperature range: -40℃ to +85℃  High efficiency up to 73%  I/O isolation test voltage 1.5k VDC  Industry standard pin-out CB Report RoHS Patent Protection UL 62368-1 EN 62368...
развернуть ▼ свернуть ▲

Технические характеристики

показать свернуть
Монтаж
Выходная мощность
Количество каналов
Входное напряжение
Параметры выходов
Возможности
Комплекс защит
Номинальное входное напряжение
Напряжение 1 выхода
Ток 1 выхода
КПД
Напряжение изоляции вход-выход
Размер 19.65×6×10.16 мм
Рабочая температура
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 34

показать свернуть
Тип Наименование Корпус Упаковка i Монтаж P вых Каналов U вх Выход Возможности Защита U вх ном. U1 U2 U3 I1 I2 I3 Шум КПД Паралл. сх. Uиз. вх-вых Uиз. вх-общ Uиз. вых-общ Uиз. вых-вых Серт. медиц. T раб Примечания Карточка
товара
A- E0505S-1WR3 (MORNSUN)

SIP76 в линейках 200 шт
A- WRE0505S-1WR2 (MORNSUN)

SIP87 стандарт, функция Remote On/Off, изолированный
A- DETN01L-05 (MW)

30 шт
A- D050505NS-1WR3 (MORNSUN)

SIP76 200 шт

A- UWE1205S-1WR3 (MORNSUN)

SIP7 1 шт
A- J0505N-1WR3 (MORNSUN)

в линейках 50 шт

A- D050505S-1WR3 (MORNSUN)


A- H0505S-1WR2 (MORNSUN)

SIP76 в линейках 5 шт
A- E0505D-1WR3 (MORNSUN)

A- A0505S-1WR2 (MORNSUN)

SIP76 1 шт
A- A0505S-1WR3 (MORNSUN)

SIP76 1 шт
A- F0505N-1WR3 (MORNSUN)

DIP-8 в линейках 600 шт
A- F0505S-1WR3 (MORNSUN)

SIP76 в линейках 40 шт
A- B0505LD-1WR3 (MORNSUN)

A- B0505LS-1WR2 (MORNSUN)

SIP76 1 шт
A- B0505S-1WR3 (MORNSUN)

SIP4 в линейках 43 шт
A- CF0505XT-1WR3 (MORNSUN)

SMD8 в линейках 109 шт
A- B0505D-1WR3 (MORNSUN)

DIP-8 в линейках 50 шт
A- B0505LS-1WR3 (MORNSUN)

SIP76 1 шт
A- F0505S-1WR2 (MORNSUN)

SIP76 1 шт
A- F0505T-1WR3 (MORNSUN)

в линейках 449 шт

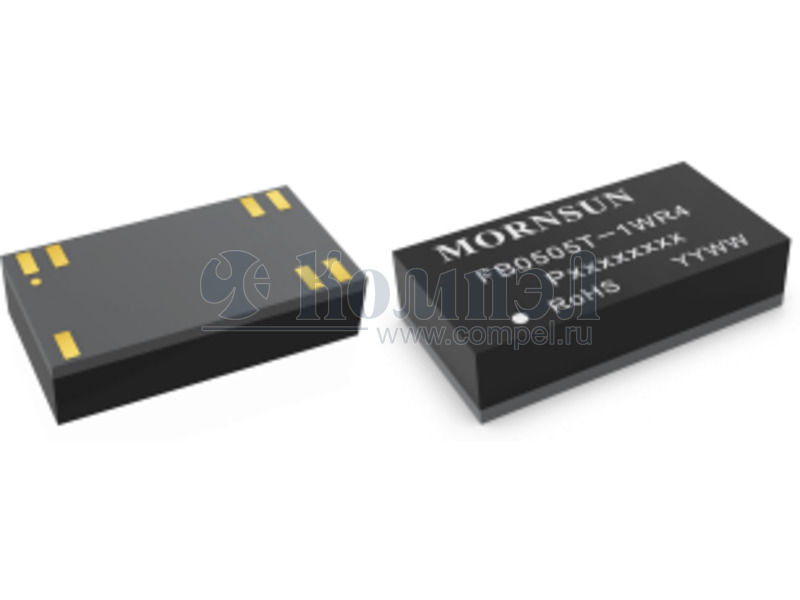

A- FB0505T-1WR4 (MORNSUN)

QFN-6 в ленте 700 шт компактный дизайн, изолированный
A- G0505S-1WR2 (MORNSUN)

SIP76 1 шт
A- IF0505S-1WR3 (MORNSUN)

SIP76 в линейках 22 шт
A- UWF1205S-1WR3 (MORNSUN)

22 шт
A- A0505XT-1WR3 (MORNSUN)

SMD10 в линейках 1000 шт
A- SPRN01L-05 (MW)

SIP7 в линейках 200 шт

A- B0505MT-1WR4 (MORNSUN)

в ленте 400 шт компактный дизайн, изолированный
A- B0505S-1WR2 (MORNSUN)

SIP4 1 шт
A- B0505T-1WR3 (MORNSUN)

SMD8 в линейках 740 шт
A- B0505XT-1WR2 (MORNSUN)

SMD8 в линейках 39 шт
A- B0505XT-1WR3 (MORNSUN)

SMD8 в линейках 500 шт
A- B0505XT-1WR3-TR (MORNSUN)

в ленте 500 шт
A- WRA0505S-1WR2 (MORNSUN)

SIP87 в линейках 792 шт стандарт, функция Remote On/Off, изолированный

Файлы 2

показать свернуть
DC/DC Converter IB05_LS-1WR3 Series FEATURES 1W isolated DC-DC converter Fixed input voltage, regulated single output  Continuous short-circuit protection  No-load input current as low as 5mA  Operating ambient temperature range: -40℃ to +85℃  High efficiency up to 73%  I/O isolation test voltage 1.5k VDC  Industry standard pin-out CB Report RoHS Patent Protection UL 62368-1 EN 62368-1 BS EN 62368-1 IEC 62368-1  SIP package IB05_LS-1WR3 series is especially designed for distributed power supply systems where an isolated voltage is required. They are suitable for occasions of: pre-interference isolation, ground interference elimination, pure digital circuit, voltage isolation conversion, general low frequency analog circuit, relay drive circuit, etc. Selection Guide Output Input Voltage (VDC) Voltage (VDC) Current (mA) Max./Min. Full Load Efficiency (%) Min./Typ. Capacitive Load (µF) Max. IB0503LS-1WR3 3.3 250/25 63/67 2400 IB0505LS-1WR3 5 200/20 66/70 2400 9 111/12 67/71 1000 Certification Part No. EN/BS EN UL/EN/BS EN/IEC EN/BS EN IB0509LS-1WR3 IB0512LS-1WR3 Nominal (Range) 5 (4.75-5.25) 12 84/9 68/72 560 IB0515LS-1WR3 15 67/7 69/73 560 IB0524LS-1WR3 24 41/4 69/73 100 Input Specifications Item Operating Conditions Min. Typ. Max. 3.3VDC/5VDC output -- 286/5 303/10 Input Current (full load / no-load) 9VDC/12VDC output -- 282/12 299/20 -- 274/18 290/30 15 -- 15VDC/24VDC output Reflected Ripple Current* -- Input Filter Unit mA Capacitor Filter Hot Plug Unavailable Note: * Refer to DC-DC Converter Application Notes for detailed description of reflected ripple current test method. Output Specifications Item Operating Conditions Voltage Accuracy Linear Regulation Input voltage change: ±1% Load Regulation 10%-100% load Ripple & Noise* 20MHz bandwidth Temperature Coefficient 100% load Short-circuit Protection Min. Typ. Max. -- -- ±3 -- -- ±0.25 3.3VDC output -- -- ±3 Others -- -- ±2 Others -- 30 75 24V output -- 50 100 ±0.02 -- -- Unit % mVp-p %/℃ Continuous, self-recovery Note: * The “parallel cable” method is used for Ripple and Noise test, please refer to DC-DC Converter Application Notes for specific information. 2022.01.14-A/9 Page 1 of 4 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation PDF
Документация на IB0515LS-1WR3

IB05_LS-1WR3 Keywords:

Дата модификации: 14.01.2022

Размер: 1.2 Мб

4 стр.

DC/DC Converter IB05_LS-1WR3 Series FEATURES 1W isolated DC-DC converter Fixed input voltage and regulated single output  Continuous short-circuit protection  No-load input current as low as 5mA  Operating ambient temperature range: -40℃ ~ +85℃  High efficiency up to 73%  I/O isolation test voltage 1.5k VDC  Industry standard pin-out  SIP package CB Patent Protection RoHS  IEC62368, UL62368, EN62368 approved IB05_LS-1WR3 series is especially designed for distributed power supply systems where an isolated voltage is required. They are suitable for occasions of : pre-interference isolation, ground interference elimination, pure digital circuit, voltage isolation conversion, general low frequency analog circuit, relay drive circuit, etc. Selection Guide Output Input Voltage (VDC) Voltage (VDC) Current (mA) Max./Min. Full Load Efficiency (%) Min./Typ. Capacitive Load (µF) Max. IB0503LS-1WR3 3.3 250/25 63/67 2400 IB0505LS-1WR3 5 200/20 66/70 2400 9 111/12 67/71 1000 Certification Part No. CE UL/CE/CB CE IB0509LS-1WR3 IB0512LS-1WR3 Nominal (Range) 5 (4.75-5.25) 12 84/9 68/72 560 IB0515LS-1WR3 15 67/7 69/73 560 IB0524LS-1WR3 24 41/4 69/73 100 Input Specifications Item Input Current (full load / no-load) Operating Conditions Min. Typ. Max. 3.3VDC/5VDC output -- 286/5 303/10 9VDC/12VDC output -- 282/12 299/20 15VDC/24VDC output -- 274/18 290/30 15 -- Reflected Ripple Current* -- Input Filter Unit mA Capacitance Filter Hot Plug Unavailable Note: * Refer to DC-DC Converter Application Notes for detailed description of reflected ripple current test method. Output Specifications Item Operating Conditions Voltage Accuracy Linear Regulation Input voltage change: ±1% Load Regulation 10%-100% load Ripple & Noise* 20MHz bandwidth Temperature Coefficient 100% load Short-circuit Protection Min. Typ. Max. -- -- ±3 % % -- -- ±0.25 3.3VDC output -- -- ±3 Others -- -- ±2 Others -- 30 75 24V output -- 50 100 ±0.02 -- -- Unit % mVp-p %/℃ Continuous, self-recovery Note: * The “parallel cable” method is used for Ripple and Noise test, please refer to DC-DC Converter Application Notes for specific information. 2019.02.21-A/7 Page 1 of 4 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation PDF
Документация на серию IB05_LS-1WR3

IB05_LS-1WR3 Keywords:

Дата модификации: 21.02.2019

Размер: 616.5 Кб

4 стр.
