SCM3728ASA

Mornsun
SCM3725ASA/SCM3728ASA Dual-Channel Digital Isolators SCM Features         3 V to 5.5 V level translation High common-mode transient immunity: 75 kV/µs typical High robustness to radiated and conducted noise High ESD rating Ultra low power consumption 0.58mA/channel(1Mbps) Wide temperature range: -40°C ~ 125°C Isolation voltages: AC 3000Vrms High data rate:10Mbps Mechanical package: S...
развернуть ▼ свернуть ▲

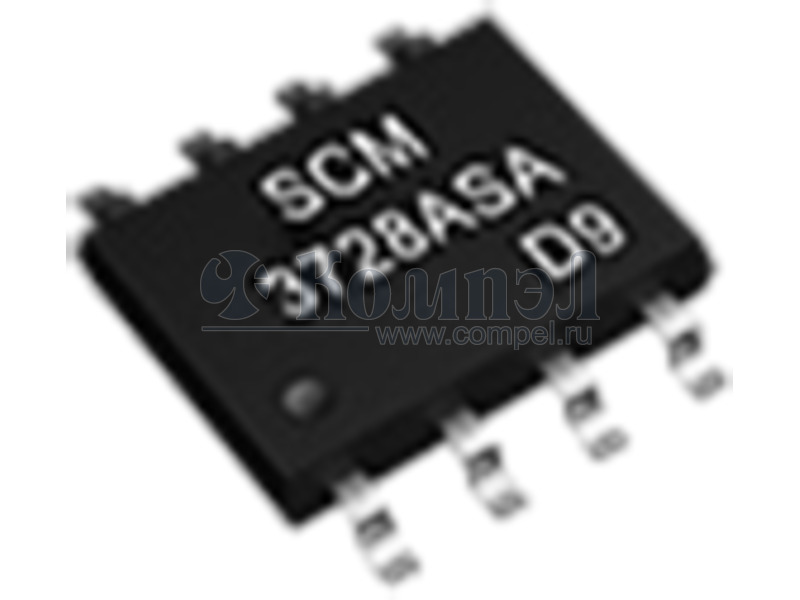

Внешний вид SCM3728ASA

Аналоги 10

показать свернуть
Тип Наименование Корпус Упаковка i Тип Карточка
товара
P= CA-IS3720HS (CHIPANLG)

SO-8 SOIC8 2500 шт —
P= CA-IS3720HS-Q1 (CHIPANLG)

SO-8 SOIC8 —
P= NSi8220N1-Q1SPR (NOVOSENS)

— в ленте 20 шт

P= CS817x20HS (CHIPANLG)

— 1 шт

 —
P= TPT7720F-SO1R (3PEAK)

SO-8 SOIC8 в ленте 4000 шт

 2-ch 100Mbps, 150kV/μs CMTI, default output Low
P= CA-IS3720LS (CHIPANLG)

SO-8 SOIC8 в ленте 2500 шт —
P- Pai120E31Q (2PAI)

—

P- NSi8220N1-DSPR (NOVOSENS)

— 1 шт

P- TPT7720-SO1R (3PEAK)

SOP-8 в ленте 5 шт

 —
P- PAI120E31 (2PAI)

SO-8 SOIC8 500 шт

 Capacitive isolation 2 General-purpose SOP-8 Digital Isolators ROHS

Файлы 2

показать свернуть
SCM3725ASA/SCM3728ASA Dual-Channel Digital Isolators SCM Features         3 V to 5.5 V level translation High common-mode transient immunity: 75 kV/µs typical High robustness to radiated and conducted noise High ESD rating Ultra low power consumption 0.58mA/channel(1Mbps) Wide temperature range: -40°C ~ 125°C Isolation voltages: AC 3000Vrms High data rate:10Mbps Mechanical package: SOP-8 (see “Ordering information” for details). Applications   Package ” General-purpose multichannel isolation Industrial field bus isolation Functional Description The SCM3725ASA/SCM3728ASA digital isolators by using maturated standard semiconductor CMOS technology and Capacitance pulse isolation technology, these isolation components provide outstanding performance characteristics and reliability superior to alternatives such as optocoupler devices and other integrated isolators. Capacitance pulse isolation technology is a new generation digital isolator technology . It uses the principle of capacitor voltage divider to transmit voltage signal directly cross the isolator capacitor without signal modulation and demodulation. The SCM3725ASA/SCM3728ASA isolator data channels are independent and different models have different transmission directions with a withstand voltage rating of 3 kV rms and the data rate from DC up to 10Mbps . The devices operate with the supply voltage on either side ranging from 3.0 V to 5.5 V, providing compatibility with lower voltage systems as well as enabling voltage translation functionality across the isolation barrier. The fail-safe state is available in which the outputs transition to a preset state when the input power supply is not applied. Product model Model Power supply range（V） Data rate Channel number Output channel number Withstand voltage(kV rms) Default output Package option Pin number SCM3725ASA 3.0~5.5 10Mbps 2 1 3 high SOP 8 SCM3728ASA 3.0~5.5 10Mbps 2 2 3 low SOP 8 2020.01.07-A/0 Page 1 of 12 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation PDF
