DLW05C-12

DC-DC, 5Вт, Uвх=36-72В, два выхода +/-12В / +/-208мА, изоляция 1000В DC, корпус 2"х1" 50.8х25.4х11.27мм, -25°С...+60°С Производитель: MEAN WELL
развернуть ▼ свернуть ▲



Технические характеристики

показать свернуть
Монтаж
Выходная мощность
Количество каналов
Входное напряжение
Параметры выходов
Возможности
Комплекс защит короткого замыкания, перегрузки
Номинальное входное напряжение
Напряжение 1 выхода
Напряжение 2 выхода
Ток 1 выхода
Ток 2 выхода
Уровень пульсаций
КПД
Схема параллельного включения
Напряжение изоляции вход-выход
Сертификаты медицинские

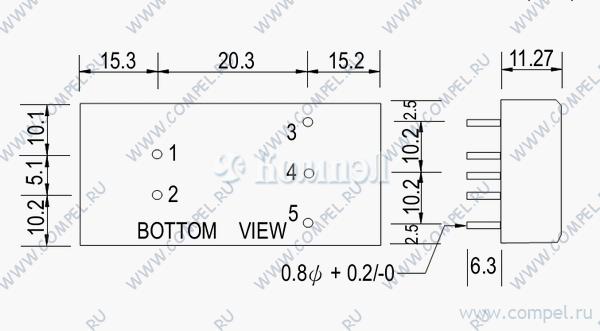

Размер 50.8×25.4×11.27 мм
Рабочая температура
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 20

показать свернуть
Тип Наименование Корпус Упаковка i Монтаж P вых Каналов U вх Выход Возможности Защита U вх ном. U1 U2 U3 I1 I2 I3 Шум КПД Паралл. сх. Uиз. вх-вых Uиз. вх-общ Uиз. вых-общ Uиз. вых-вых Серт. медиц. T раб Примечания Карточка
товара
A- RDDW08G-12 (MW)

КЗ, перегрузка, перенапряжение, от пониженного входного напряжения
A- DKMW06F-12 (MW)

1X1INCH в линейках 19 шт

DC-DC Regulated Power Supply Module
A- MDD06F-12 (MW)

11 шт
A- MDD06G-12 (MW)

DIP-24 11 шт
A- VRA2412ZP-6WR3 (MORNSUN)

в линейках 30 шт
A- URA2412S-6WR3 (MORNSUN)

10 шт

от пониженного входного напряжения, короткого замыкания, перегрузки
A- DCWN06C-12 (MW)

короткого замыкания, перегрузки, пониженного входного напряжения
A- DKMW06G-12 (MW)


DC-DC Regulated Power Supply Module
A- URA2412YMD-6WR3A2S (MORNSUN)

A- DCWN06B-12 (MW)

в линейках 15 шт короткого замыкания, перегрузки, пониженного входного напряжения
A- RDDW08F-12 (MW)

КЗ, перегрузка, перенапряжение, от пониженного входного напряжения
A- DLW05B-12 (MW)

2X1INCH DC-DC модульный преобразователь - Монтаж: на плату, 2x1 inch; P вых: 5 Вт; #: 2; U вх: ... короткого замыкания, перегрузки

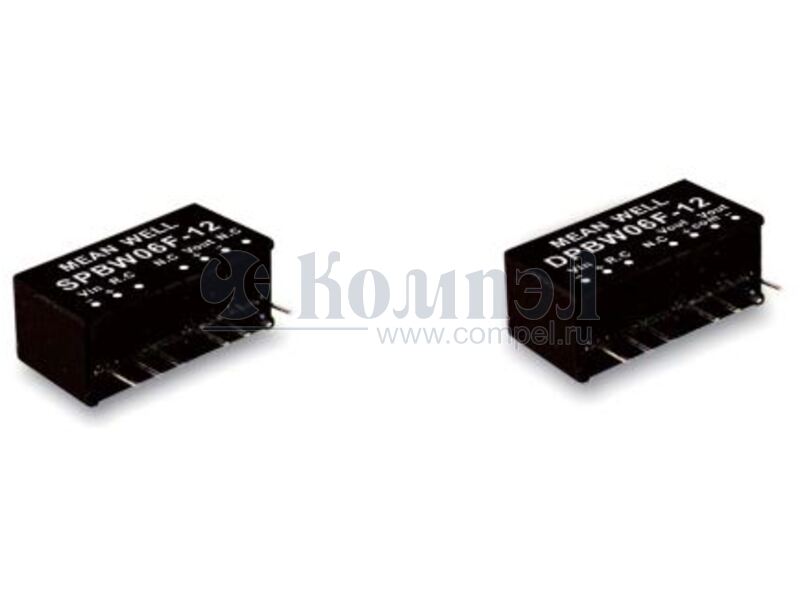

A- DPBW06F-12 (MW)

короткого замыкания, перегрузки, пониженного входного напряжения
A- DPBW06G-12 (MW)

5 шт короткого замыкания, перегрузки, пониженного входного напряжения
A- DCW08B-12 (MW)

DIP2410 1 шт DC-DC модульный преобразователь - Монтаж: на плату, DIP24; P вых: 8 Вт; #: 2; U вх: 18.... короткого замыкания, перегрузки
A- DCW08C-12 (MW)

DIP2410 в линейках 5 шт DC-DC модульный преобразователь - ; Траб: -40...71 °C короткого замыкания, перегрузки
A- URE2412P-6WR3 (MORNSUN)

DIP2410 2 шт

A- URA1D12YMD-6WR3 (MORNSUN)

A- URA2412YMD-6WR3 (MORNSUN)

A- URA2412YMD-6WR3A4S (MORNSUN)

5 шт

Файлы 2

показать свернуть
D LW 0 5 5W DC-DC Regulated Dual Output Converter series ■ Features : 2:1 wide input range 4:1 wide input range(option) 1000VDC I/O isolation 3000VDC I/O isolation(option) Built-in EMI filter Protections: Short circuit / Overload Cooling by free air convection Six-sided shield metal case 100% burn-in test Low cost / High reliability Approvals: FCC / EAC / CE / UKCA 2 years warranty SPECIFICATION ORDER NO. OUTPUT INPUT DLW05A-05 DLW05B-05 DLW05C-05 DLW05A-12 DLW05B-12 DLW05C-12 DLW05A-15 DLW05B-15 DLW05C-15 DC VOLTAGE ±5V ±12V ±15V CURRENT RANGE ±50 ~ ±500mA ±20.8 ~ ±208mA ±16.7 ~ ±167mA RATED POWER 5W 60mVp-p 60mVp-p RIPPLE & NOISE (max.)Note.2 50mVp-p LINE REGULATION Note.3 ±0.2% LOAD REGULATION Note.4 ±0.5% VOLTAGE ACCURACY ±2.0% SWITCHING FREQUENCY VOLTAGE RANGE 50KHz min. A: 9 ~ 18VDC EFFICIENCY (Typ.) 75% DC CURRENT Full load A: 556mA B: 270mA C: 135mA No load A: 33mA C: 10mA FILTER PROTECTION Pi network Fuse recommended PROTECTION SHORT CIRCUIT B: 16mA 80% 83% 82% 81% 85% 83% Protection type : Hiccup mode, recovers automatically after fault condition is removed WORKING TEMP. -25 ~ +71℃ (Refer to "Derating Curve") WORKING HUMIDITY 20% ~ 90% RH non-condensing -25 ~ +105℃, 10 ~ 95% RH ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS WITHSTAND VOLTAGE SAFETY & ISOLATION RESISTANCE EMC EMC EMISSION EMC IMMUNITY OTHERS C: 36 ~ 72VDC 77% 160 ~ 250% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed All output equipped with short circuit OVERLOAD (Note. 5) B: 18 ~ 36VDC 77% MTBF DIMENSION ±0.03% / ℃ (0 ~ 50℃) 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes EAC TP TC 020/2011 approved I/P-O/P:1KVDC I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH Compliance to BS EN/EN55032 Class B, FCC part 15 Class B , EAC TP TC 020 Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A , EAC TP TC 020 800khrs min. MIL-HDBK-217F(25℃) 50.8*25.4*11.27mm or 2.0"*1.0"*0.44" inch (L*W*H) WEIGHT 32g Derating Curve Pin Configuration Mechanical Specification Unit:mm 11.27 1 3 4 2 BOTTOM VIEW 5 0.8ψ + 0.2/-0 10.2 10.2 2.5 15.2 2.5 25.4 10.2 5.1 10.1 20.3 5.8 Pin no. Output Dual 1 2 3 4 5 + Vi n - Vi n + Vo u t COM - Vo u t 100 LOAD (%) 50.8 15.3 80 -25 0 25 50 60 71 100 Ta (℃) NOTE 1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient. 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor. 3.Line regulation is measured from low line to high line at rated load. 4.Load regulation is measured from 10% to 100% rated load. 5.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds. ※ Product Liability Disclaimer:For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx File Name:DLW05-SPEC 2021-11-24 PDF
Документация на DLW05A-05 PBF

DLW05.cdr

Дата модификации: 22.11.2021

Размер: 64.8 Кб

1 стр.

D LW 0 5 5W DC-DC Regulated Dual Output Converter series Features : 2:1 wide input range 4:1 wide input range(optional) 1000VDC I/O isolation 3000VDC I/O isolation ( option ) Input Pi network filter Protections: Short circuit/ Over load Free air convection Five-sided shield metal case High reliability / Low cost 100% burn-in test 1 year warranty SPECIFICATION ORDER NO. DLW05A-05 DLW05B-05 DLW05C-05 DLW05A-12 DLW05B-12 DLW05C-12 DLW05A-15 DLW05B-15 DLW05C-15 DC VOLTAGE 5V 12V 15V CURRENT RANGE 50 ~ 500mA 20.8 ~ 208mA 16.7 ~ 167mA 5W RATED POWER OUTPUT RIPPLE & NOISE (max.)Note.2 50mVp-p LINE REGULATION Note.3 0.2% LOAD REGULATION Note.4 0.5% SWITCHING FREQUENCY VOLTAGE RANGE 50KHz min. EFFICIENCY (Typ.) 75% A: 9 ~ 18VDC DC CURRENT FILTER OVER LOAD SHORT CIRCUIT C: 36~72VDC 77% 80% Full load A: 556mA B: 270mA C: 135mA No load A: 33mA C: 10mA B: 16mA 82% 83% 83% 81% 85% Protection type : Hiccup mode, recovers automatically after fault condition is removed -25~+71 (Refer to output load derating curve) WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY & WITHSTAND VOLTAGE EMC ISOLATION RESISTANCE OTHERS B: 18~36VDC 77% Pi network 160~250% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed All output equipped with short circuit PROTECTION (Note. 5) 60mVp-p 2.0% VOLTAGE ACCURACY INPUT 60mVp-p MTBF DIMENSION 20%~90% RH non-condensing -25~+105 , 10~95% RH 0.03% / (0~50 ) 10~500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes I/P-O/P:1KVDC I/P-O/P: 100M Ohms / 500VDC 800khrs min. MIL-HDBK-217F(25 ) 50.8*25.4*11.27mm or 2.0"*1.0"*0.44" inch (L*W*H) 32g WEIGHT Derating Curve Pin Configuration Mechanical Specification Unit:mm(inch) 10.2 10.2 1 3 4 2 BOTTOM VIEW 5 0.8 + 0.2/-0 6.3 Pin no. Output Dual 1 2 3 4 5 + Vi n - Vi n + Vo u t COM - Vo u t 100 LOAD (%) 11.27 15.2 2.5 20.3 2.5 10.2 5.1 10.1 15.3 80 -25 0 25 50 60 71 Ta ( NOTE 100 ) 1.All parameters are specified at normal input, rated load, 25 70% RH. Ambient. 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor. 3.Line regulation is measured from low line to high line at rated load. 4.Load regulation is measured from 10% to 100% rated load. 5.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds. File Name:DLW05-SPEC 2004-12-10 PDF
Документация на серию DLW05

DLW05.cdr

Дата модификации: 14.12.2004

Размер: 89 Кб

1 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
