HLG-100H-30A

MEAN WELL
ИП для светодиодного освещения: 100 Вт; 3200 мА / 15…30 В (стаб. по току или напр.); вход: 90…305 В; IP65
развернуть ▼ свернуть ▲
Фотография серии HLG-100H-A

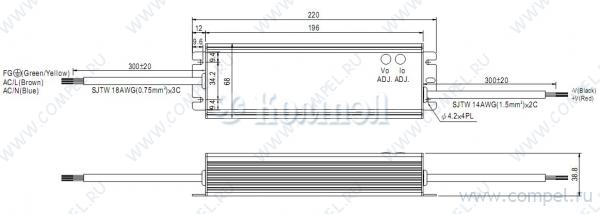

Чертеж серии HLG-100H-A



Технические характеристики

показать свернуть
Тип преобразователя
Мощность выходная
Диапазон выходных напряжений
Диапазон выходных токов
Напряжение сети/входное номинальное
Режим стабилизации
Тип диммирования
Исполнение конструктивное
Степень защиты (IP)
Подстройка выходных параметров
Диапазон входных напряжений (AC)
Диапазон входных напряжений (DC)
Напряжение изоляции вход-выход
Количество выходов
Коэффициент мощности
Эффективность
Функция защиты КЗ, перегрузка, перенапряжение, перегрев
Температура рабочая
Размер 220×68×38.8 мм
Применение для архитектурной подсветки и COB-матриц
Особенности низкие пульсации, гарантия 7 лет
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 2

показать свернуть
100W Constant Voltage + Constant Current LED Driver HLG-100H series User’s Manual Bauar t gepruft Sicherheit egel ma ge od o s be wac g www. tuv.com ID 2000000000 (except for D-type) (except for B/AB/D-type) (except for AB-type)   ■  ‧ ‧Metal housing with class I design ‧ ‧ ‧ •     IP65 IP67 ■  ‧ ‧  ‧ ‧  ‧  ‧Ⅰ  ‧ ‧ ■   current output. HLG-100H operates from 90～305VAC and offers models with different rated voltage ranging between 20V and 54V. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-100H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system. ■               B       D   I I  I         File Name:HLG-100H-SPEC 2021-08-26 PDF
Документация на HLG-100H-36D

HLG-100H.cdr

Дата модификации: 27.08.2021

Размер: 801.2 Кб

10 стр.

HLG-100H 100W Single Output Switching Power Supply series Features : Universal AC input / Full range (up to 305VAC) Built-in active PFC function High efficiency up to 93% Protections: Short circuit / Over current / Over voltage / Over temperature Cooling by free air convection OCP point adjustable through output cable or internal potentiometer IP67 / IP65 design for indoor or outdoor installations Three in one dimming function (1~10Vdc or PWM signal or resistance) Suitable for LED lighting and street lighting applications Compliance to worldwide safety regulations for lighting Suitable for dry / damp / wet locations 5 years warranty (Note.9) 110 F HLG-100H-20 A M M SELV IP65 IP67 Blank : IP67 rated. Cable for I/O connection. A : IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer. B : IP67 rated. Constant current level adjustable through output cable with 1~10Vdc or 10V PWM signal or resistance. D (option) : IP67 rated. Timer dimming function, contact MEAN WELL for details. SPECIFICATION HLG-100H-20 HLG-100H-24 HLG-100H-30 HLG-100H-36 HLG-100H-42 HLG-100H-48 HLG-100H-54 DC VOLTAGE 20V 24V 36V 42V 48V 54V RATED CURRENT 4.8A 4A 30V 3.2A 2.65A 2.28A 2A 1.77A RATED POWER 96W 96W 96W 95.4W 95.76W 96W 95.58W RIPPLE & NOISE (max.) Note.2 150mVp-p 150mVp-p 200mVp-p 200mVp-p 200mVp-p 200mVp-p 200mVp-p VOLTAGE ADJ. RANGE Note.5 17 ~ 22V 22 ~ 27V 27 ~ 33V 33 ~ 40V 38 ~ 46V 43 ~ 53V 49 ~ 58V 1.4 ~ 2.28A 1.25 ~ 2A 1.1 ~ 1.77A MODEL OUTPUT Can be adjusted by internal potentiometer or through output cable 1.65 ~ 2.65A 3 ~ 4.8A 2.5 ~ 4A 2 ~ 3.2A CURRENT ADJ. RANGE VOLTAGE TOLERANCE Note.3 1.0% 1.0% 1.0% 1.0% 1.0% 1.0% 1.0% LINE REGULATION 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% LOAD REGULATION 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% SETUP, RISE TIME Note.7 2500ms, 50ms at full load 16ms at full load HOLD UP TIME (Typ.) VOLTAGE RANGE INPUT Note.4 90 ~ 305VAC 230VAC / 115VAC 230VAC /115VAC 127 ~ 431VDC FREQUENCY RANGE 47 ~ 63Hz POWER FACTOR (Typ.) PF>0.98/115VAC, PF>0.95/230VAC, PF>0.93/277VAC at full load (Please refer to "Power Factor Characteristic" curve) EFFICIENCY (Typ.) 93% 93% 93% 93% 1.2A / 115VAC 0.55A / 230VAC 0.5A / 277VAC COLD START 75A/230VAC AC CURRENT (Typ.) INRUSH CURRENT (Typ.) LEAKAGE CURRENT OVER CURRENT SHORT CIRCUIT PROTECTION 230VAC / 115VAC ; B type 2500ms, 200ms at 95% load OVER VOLTAGE 93% 93% <0.75mA / 277VAC 95 ~ 106% Protection type : Constant current limiting, recovers automatically after fault condition is removed Constant current limiting, recovers automatically after fault condition is removed 47 ~ 53V 34 ~ 38V 28 ~ 34V 41 ~ 46V 54 ~ 60V 23 ~ 27V Protection type : Shut down o/p voltage with auto-recovery or re-power on to recovery OVER TEMPERATURE 100 10 (RTH2) Protection type : Shut down o/p voltage, recovers automatically after temperature goes down WORKING TEMP. -40 ~ +70 WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION 93% 59 ~ 65V (Refer to "Derating Curve") 20 ~ 95% RH non-condensing -40 ~ +80 0.03%/ , 10 ~ 95% RH (0 ~ 50 ) 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes SAFETY STANDARDS Note.6 UL8750, EN61347-1, EN61347-2-13 independent, J61347-1, J61347-2-13, IP65 or IP67 approved ; Design refer to UL60950-1, TUV EN60950-1 SAFETY & EMC WITHSTAND VOLTAGE I/P-O/P:3.75KVAC ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH Compliance to EN55015, EN55022 (CISPR22) Class B, EN61000-3-2 Class C ( 60% load) ; EN61000-3-3 EMC EMISSION EMC IMMUNITY MTBF OTHERS DIMENSION PACKING NOTE I/P-FG:1.88KVAC O/P-FG:0.5KVAC Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, heavy industry level (surge 4KV), criteria A 192.2Khrs min. MIL-HDBK-217F (25 ) 220*68*38.8mm (L*W*H) 1.12Kg; 12pcs/14.4Kg/0.74CUFT 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Derating may be needed under low input voltages. Please check the static characteristics for more details. 5. Type A only. 6. Safety and EMC design refer to EN60598-1, CNS15233, GB7000.1, FCC part18. 7. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time. 8. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. 9. Refer to warranty statement. File Name:HLG-100H-SPEC 2011-07-28 PDF
Документация на серию HLG-100H-A

HLG-100H.cdr

Дата модификации: 02.08.2011

Размер: 320.8 Кб

6 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
