LPC-60-1750

MEAN WELL
ИП для светодиодного освещения: 60 Вт; 1750 мА (стаб. по току); Вход: 90...264 В;
развернуть ▼ свернуть ▲
Фотография серии LPC-60

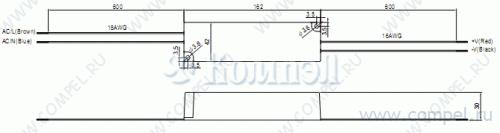

Чертеж серии LPC-60



Технические характеристики

показать свернуть
Тип преобразователя
Мощность выходная
Диапазон выходных напряжений
Диапазон выходных токов
Напряжение сети/входное номинальное
Режим стабилизации
Тип диммирования
Исполнение конструктивное
Степень защиты (IP)
Подстройка выходных параметров
Диапазон входных напряжений (AC)
Напряжение изоляции вход-выход
Количество выходов
Эффективность
Функция защиты
Температура рабочая
Размер 162×42×32 мм
Применение для промышленного и наружного освещения
Особенности
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 2

показать свернуть
LPC-60 60W Single Output Switching Power Supply ■ Features : Constant current design Universal AC input / Full range Withstand 300VAC surge input for 5 seconds Protections: Short circuit / Over voltage Cooling by free air convection Fully encapsulated with IP67 level (Note.7) Fully isolated plastic case Class Ⅱ power unit, no FG Class 2 power unit Pass LPS Suitable for LED related fixture or appliance series User’s Manual (such as LED Decoration or Advertisement devices)(Note.10) 100% full load burn-in test Low cost, high reliability 2 years warranty IS 15885(Part 2/Sec13) LPS IP67 SPECIFICATION MODEL THOMAS SAMUEL THOMAS SAMUEL ( except for 1750mA ) LPC-60-1050 LPC-60-1750 1050mA 1400mA 1750mA 9 ~ 42V 9 ~ 34V RATED POWER 50.4W 58.8W 59.5W 200mVp-p 200mVp-p VOLTAGE TOLERANCE Note.3 ±5.0% CURRENT ACCURACY ±5.0% LINE REGULATION ±1.0% ±2.0% Note.6 500ms, 120ms / 230VAC HOLD UP TIME (Typ.) VOLTAGE RANGE 50ms/230VAC Note.4 90 ~ 264VAC 500ms, 120ms / 115VAC at full load 16ms/115VAC at full load 127 ~ 370VDC FREQUENCY RANGE 47 ~ 63Hz EFFICIENCY (Typ.) 87% AC CURRENT (Typ.) INRUSH CURRENT(Typ.) 1.2A/115VAC 0.7A/230VAC COLD START 60A(twidth=540μs measured at 50% Ipeak) at 230VAC MAX. No. of PSUs on 16A CIRCUIT BREAKER 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC LEAKAGE CURRENT PROTECTION OVER VOLTAGE WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS SAFETY & WITHSTAND VOLTAGE EMC ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF DIMENSION PACKING NOTE LPC-60-1400 9 ~ 48V SETUP, RISE TIME OTHERS ( except for 1750mA ) DC VOLTAGE RANGE LOAD REGULATION INPUT R-41027766 RATED CURRENT RIPPLE & NOISE (max.) Note.2 200mVp-p OUTPUT ( for 1750mA only) 85% 87% 0.25mA / 240VAC 50.4 ~ 60V 44.1 ~ 56.7V 39.1 ~ 45.9V Protection type : Shut off o/p voltage, clamping by TVS diode -30 ~ +70℃ (Refer to "Derating Curve") 20 ~ 90% RH non-condensing -40 ~ +80℃, 10 ~ 95% RH ±0.03%/℃ (0 ~ 50℃) 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes UL1310, CAN/CSA C22.2 No. 223-M91(for LPC-60-1750 only), BIS IS15885(except for LPC-60-1750), EAC TP TC 004, IP67, IEC62368-1 approved; Design refer to BS EN/EN62368-1 I/P-O/P:3KVAC I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A, BS EN/EN61000-3-3, EAC TP TC 020 Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, criteria A, EAC TP TC 020 732Khrs min. MIL-HDBK-217F (25℃) 162.5*42.5*32mm (L*W*H) 0.4Kg; 32pcs/13.8Kg/0.63CUFT 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Derating may be needed under low input voltage. Please check the static characteristics for more details. 5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time. 7. Suitable for indoor use or outdoor use without direct sunlight exposure. Please avoid immerse in the water over 30 minute. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft). 9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf 10. This product is not intended for LED lighting luminaire applications in the EU.(In the EU the LPF/NPF/XLG series are recommended.) 11. To fulfill requirements of latest ErP regulation for lighting luminaires, this LED Driver can only be used behind a switch without permanently connected to mains. ※ Product Liability Disclaimer：For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx File Name:LPC-60-SPEC 2021-09-03 PDF
Документация на LPC-60-1750

LPC-60.cdr

Дата модификации: 03.09.2021

Размер: 70.1 Кб

2 стр.

LPC-60 60W Single Output Switching Power Supply ¡¡E¡½ E ¡E ¡E ¡E ¡E ¡E ¡E ¡E ¡E ¡E ¡E ¡E ¡E Features : Constant current design Universal AC input / Full range Withstand 300VAC surge input for 5 seconds Protections: Short circuit / Over voltage Cooling by free air convection Fully encapsulated with IP67 level (Note.8) Fully isolated plastic case Class power unit, no FG Class 2 power unit Pass LPS Suitable for LED lighting and moving sign applications (Note.7) 100% full load burn-in test Low cost, high reliability 2 years warranty ¢º LPS IP67 SPECIFICATION MODEL OUTPUT LPC-60-1050 LPC-60-1400 LPC-60-1750 1400mA 1750mA DC VOLTAGE RANGE 9 ~ 48V 9 ~ 42V 9 ~ 34V RATED POWER 50.4W 58.8W 59.5W 200mVp-p 200mVp-p VOLTAGE TOLERANCE Note.3 CURRENT ACCURACY LOAD REGULATION SETUP, RISE TIME VOLTAGE RANGE 50ms/230VAC Note.4 90 ~ 264VAC FREQUENCY RANGE 47 ~ 63Hz EFFICIENCY (Typ.) 87% AC CURRENT (Typ.) INRUSH CURRENT(max.) 1.2A/115VAC LEAKAGE CURRENT PROTECTION OVER VOLTAGE WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION EMC 127 ~ 370VDC 85% 87% 0.7A/230VAC £g COLD START 60A(twidth=540 s measured at 50% Ipeak) at 230VAC 0.25mA / 240VAC 50.4 ~ 60V 44.1 ~ 56.7V 39.1 ~ 45.9V Protection type : Shut off o/p voltage, clamping by TVS diode -30 ~ +70 ¢J (Refer to "Derating Curve") 20 ~ 90% RH non-condensing ¢J ¡Ó0.03%/¢J (0 ~ 50¢J) -40 ~ +80 , 10 ~ 95% RH 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes UL1310, CAN/CSA C22.2 No. 223-M91(for LPC-60-1750 only), IP67 approved ; design refer to TUV EN60950-1 WITHSTAND VOLTAGE I/P-O/P:3KVAC ISOLATION RESISTANCE I/P-O/P:>100M Ohms / 500VDC / 25 / 70% RH Compliance to EN55022 (CISPR22) Class B, EN61000-3-2 Class A, EN61000-3-3 EMC EMISSION EMC IMMUNITY DIMENSION PACKING NOTE 500ms, 120ms / 115VAC at full load 16ms/115VAC at full load SAFETY STANDARDS MTBF OTHERS ¡Ó5.0% ¡Ó5.0% Ó¡ 1.0% Ó¡ 2.0% Note.6 500ms, 120ms / 230VAC HOLD UP TIME (Typ.) SAFETY & ( for 1750mA only) 1050mA LINE REGULATION INPUT ( except for 1750mA ) RATED CURRENT RIPPLE & NOISE (max.) Note.2 200mVp-p series ¢J Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A 732K hrs min. MIL-HDBK-217F (25 ) ¢J 162.5*42.5*32mm (L*W*H) 0.4Kg; 32pcs/13.8Kg/0.56CUFT ¢J 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Derating may be needed under low input voltage. Please check the static characteristics for more details. 5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time. 7. The unit might not be suitable for lighting applications in EU countries. Please check with your local authorities for the possible use of the unit. 8. Suitable for indoor use or outdoor use without direct sunlight exposure. Please avoid immerse in the water over 30 minute. File Name:LPC-60-SPEC 2012-12-26 PDF
Документация на серию LPC-60

LPC-60.cdr Keywords:

Дата модификации: 09.01.2013

Размер: 69.9 Кб

2 стр.
