LPS-100-27

MEAN WELL
AC/DC преобразователь: Открытый; 100 Вт; Выход 27В/3.8А; Вход: 88...264VAC / 127...370VDC; -10...60°C
развернуть ▼ свернуть ▲
Фотография серии LPS-100

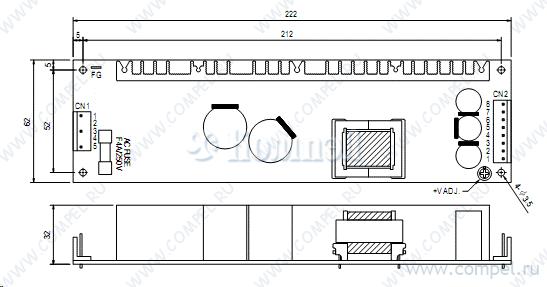

Чертеж серии LPS-100



Технические характеристики

показать свернуть
Выходная мощность (ном)
Выход
Напряжение 1 канала
Выходной ток 1 канала
Тип стабилизации
Вход
Конструктивное исполнение
Возможности
Типы защиты КЗ, перегрузка, перенапряжение
Количество выходов
Тип управления выходом
Исполнение
Входное напряжение AC
Входное напряжение DC
Коэффициент мощности
Напряжение изоляции вход-выход
Напряжение изоляции вход-земля
Напряжение изоляции выход-земля
Применение
КПД
Шум
Размер 222×62×32 мм
Рабочая температура
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 7

показать свернуть
Тип Наименование Корпус Упаковка i P вых Выход U1 I1 Стабилизация Вход Конструктив Возможности Защита Выходов Управление IP U вх AC U вх DC Коэф. мощн. U изол вх-вых U изол вх-земля U изол вых-земля Применение КПД Шум T раб Примечание Карточка
товара
P= LPP-100-27 (MW)

— 1 шт Преобразователь напряжения AC-DC ( DC-DC)на шасси. 102.6Вт, Uвх=85-264VAC (120-370VDC),... КЗ, перегрузка, перенапряжение —
A+ EPP-120S-27 (MW)

— на поддоне 10 шт

 КЗ, перегрузка, перенапряжение, перегрев — —
A+ RPS-120-27 (MW)

— 1 шт КЗ, перегрузка, перенапряжение, перегрев — —
A+ RPS-120S-27 (MW)

—

 — — — — — — — — —
A+ LOF120-20B27 (MORNSUN)

— 1 шт

 КЗ, перегрузка, перенапряжение, перегрев — — — — AC-DC Power Factor Correction Module
A+ LOF225-20B27 (MORNSUN)

—

 КЗ, перегрузка, перенапряжение, перегрев — — — — AC-DC Power Factor Correction Module, 1 Output, 130W, Hybrid
A+ LO120-20B27MU (MORNSUN)

—

 КЗ, перегрузка, перенапряжение, перегрев — Parameters with 10CFM cooling, some parameters may differ with Air Cooling

Файлы 2

показать свернуть
LPS-100 100W Single Output without PFC Function series User’s Manual ■ Features : Universal AC input / Full range Protections: Short circuit / Overload / Over voltage Cooling by free air convection 100% full load burn-in test Fix switching frequency at 134KHz 2 years warranty Bauar t gepruft Sicherheit egel ma ge od o s be wac g www. tuv.com ID 2000000000 SPECIFICATION MODEL OUTPUT INPUT LPS-100-7.5 LPS-100-12 LPS-100-13.5 LPS-100-15 LPS-100-24 LPS-100-27 LPS-100-48 3.3V 5V 7.5V 12V 13.5V 15V 24V 27V RATED CURRENT 20A 20A 13.3A 8.4A 7.5A 6.7A 4.2A 3.8A CURRENT RANGE 0 ~ 20A 0 ~ 20A 0 ~ 13.3A 0 ~ 8.4A 0 ~ 7.5A 0 ~ 6.7A 0 ~ 4.2A(6A 10s) 0 ~ 3.8A 0 ~ 2.1A RATED POWER 66W 48V 2.1A 100W 99.75W 100.8W 101.25W 100.5W 100.8W(144W 10s) 102.6W 100.8W RIPPLE & NOISE (max.) Note.2 150mVp-p 100mVp-p 100mVp-p 100mVp-p 100mVp-p 100mVp-p 150mVp-p 150mVp-p 200mVp-p VOLTAGE ADJ. RANGE 3 ~ 3.6V VOLTAGE TOLERANCE Note.3 ±3.0% 4.5 ~ 5.7V ±3.0% 6 ~ 9V ±2.0% 10 ~ 13.2V ±2.0% 12 ~ 15V ±2.0% 13.5 ~ 18V ±2.0% 20 ~ 26.4V ±1.0% 26 ~ 32V ±1.0% 41 ~ 56V ±1.0% LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% LOAD REGULATION SETUP, RISE TIME ±2.0% ±2.0% 800ms, 50ms/230VAC ±1.5% ±1.5% ±1.5% 1200ms, 50ms/115VAC at full load ±1.5% ±0.5% ±0.5% ±0.5% HOLD UP TIME (Typ.) 20ms/230VAC VOLTAGE RANGE 88 ~ 132VAC / 176 ~ 264VAC auto switch FREQUENCY RANGE 47 ~ 63Hz EFFICIENCY(Typ.) 69% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 2.3A/115VAC 20ms/115VAC at full load 77% 77% 248 ~ 370VDC 79% [DC input operation possible by connecting AC/N(-), AC/L(+)] 79% 80% COLD START 30A/115VAC <1mA / 240VAC OVERLOAD 105 ~ 140% (+24V: above 6.5A) rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS SAFETY & WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMC EMISSION EMC IMMUNITY MTBF DIMENSION PACKING 3.8 ~ 4.45V 80% 81% 81% 1.5A/230VAC LEAKAGE CURRENT WORKING TEMP. WORKING HUMIDITY NOTE TPTC004 LPS-100-3.3 LPS-100-5 OVER VOLTAGE OTHERS BS EN/EN62368-1 IEC62368-1 DC VOLTAGE PROTECTION (Note 4) UL62368-1 60A/230VAC 5.75 ~ 6.75V 9.4 ~ 10.9V 13.8 ~ 16.2V 15.5 ~ 18.2V 18 ~ 21V 27.6 ~ 32.4V 33.7 ~ 39.2V 57.6 ~ 67.2V Protection type : Hiccup mode, recovers automatically after fault condition is removed -10 ~ +60℃ (Refer to "Derating Curve") 20 ~ 90% RH non-condensing -20 ~ +85℃, 10 ~ 95% RH ±0.05%/℃ (0 ~ 50℃) 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 Compliance to BS EN/EN61000-4-2,3,4,5,6,11, light industry level, criteria A, EAC TP TC 020 203.6Khrs min. MIL-HDBK-217F (25℃) 222*62*32mm (L*W*H) 0.45Kg; 24pcs/12.5Kg/1.63CUFT 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com) 5. If the input range 85V-89V, the output load is changed from 0A-rated load, There will be reduced 20V for 1second (LPS-100-24). 6. Mounting holes M1 and M2 should be grounded for EMI purposes. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft). ※ Product Liability Disclaimer：For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx File Name:LPS-100-SPEC 2021-09-15 PDF
Документация на LPS-100-7.5

LPS-100-20210915.cdr

Дата модификации: 26.11.2021

Размер: 103.2 Кб

2 стр.

LPS-100 100W Single Output without PFC Function series Features : Universal AC input / Full range Protections:Short circuit/Over load/Over voltage Cooling by free air convection 100% full load burn-in test Fix switching frequency at 134KHz 3 years warranty SPECIFICATION MODEL OUTPUT LPS-100-3.3 LPS-100-5 LPS-100-7.5 LPS-100-12 LPS-100-13.5 LPS-100-15 LPS-100-24 LPS-100-27 LPS-100-48 DC VOLTAGE 3.3V 5V 7.5V 12V 13.5V 15V 24V 27V 48V RATED CURRENT 20A 20A 13.3A 8.4A 7.5A 6.7A 4.2A 3.8A 2.1A CURRENT RANGE 0 ~ 20A 0 ~ 20A 0 ~ 13.3A 0 ~ 8.4A 0 ~ 7.5A 0 ~ 6.7A 0 ~ 4.2A(6A 10s) 0 ~ 3.8A 0 ~ 2.1A RATED POWER 66W 100W 99.75W 100.8W 101.25W 100.5W 100.8W(144W 10s) 102.6W 100.8W RIPPLE & NOISE (max.) Note.2 150mVp-p 100mVp-p 100mVp-p 100mVp-p 100mVp-p 100mVp-p 150mVp-p 150mVp-p 200mVp-p VOLTAGE ADJ. RANGE 4.5 ~ 5.7V 3.0% 6 ~ 9V 2.0% 10 ~ 13.2V 2.0% 12 ~ 15V 2.0% 13.5 ~ 18V 2.0% 20 ~ 26.4V 1.0% 26 ~ 32V 1.0% 41 ~ 56V 1.0% 3 ~ 3.6V VOLTAGE TOLERANCE Note.3 3.0% LINE REGULATION INPUT 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 1.5% 1.5% 1.5% 1200ms, 50ms/115VAC at full load 1.5% 0.5% 0.5% 0.5% LOAD REGULATION SETUP, RISE TIME 2.0% 2.0% 800ms, 50ms/230VAC HOLD TIME (Typ.) 20ms/230VAC VOLTAGE RANGE 88 ~ 132VAC / 176 ~ 264VAC auto switch FREQUENCY RANGE 47 ~ 63Hz EFFICIENCY(Typ.) 69% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 2.3A/115VAC 0.5% 20ms/115VAC at full load 77% 248 ~ 370VDC 77% 79% 79% 80% LEAKAGE CURRENT COLD START 30A/115VAC <1mA / 240VAC OVER LOAD 105 ~ 140% (+24V: above 6.5A) rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed PROTECTION OVER VOLTAGE WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS WITHSTAND VOLTAGE 3.8 ~ 4.45V 80% 81% 81% 1.5A/230VAC 60A/230VAC 5.75 ~ 6.75V 9.4 ~ 10.9V 13.8 ~ 16.2V 15.5 ~ 18.2V 18 ~ 21V 27.6 ~ 32.4V 33.7 ~ 39.2V 57.6 ~ 67.2V Protection type : Hiccup mode, recovers automatically after fault condition is removed -10 ~ +60 (Refer to output load derating curve) 20 ~ 90% RH non-condensing -20 ~ +85 , 10 ~ 95% RH 0.05%/ (0 ~ 50 10 ~ 500Hz, 2G 10min./1cycle, Period for 60min.each along X, Y, Z axes UL60950-1, TUV EN60950-1 Approved I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC SAFETY & ISOLATION RESISTANCE EMC (Note 4) OTHERS I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC EMI CONDUCTION & RADIATION Compliance to EN55022 (CISPR22) Class B HARMONIC CURRENT Compliance to EN61000-3-2,-3 EMS IMMUNITY Compliance to EN61000-4-2,3,4,5,6,11, Light industry level, criteria A MTBF 203.6Khrs min. MIL-HDBK-217F (25 222*62*32mm (L*W*H) 0.45Kg; 24pcs/12.5Kg/1.76CUFT DIMENSION PACKING NOTE ) 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 5. If the input range 85V-89V, the output load is changed from 0A-rated load, There will be reduced 20V for 1second (LPS-100-24). 6. Mounting holes M1 and M2 should be grounded for EMI purposes. File Name:LPS-100-SPEC 2006-03-10 PDF
Документация на серию LPS-100

LPS-100.cdr

Дата модификации: 26.03.2006

Размер: 339 Кб

2 стр.

    Публикации 1

    показать свернуть
    24 апреля 2024
    новость

    MEAN WELL – эксперт по источникам питания. 100 вопросов о ИП MW

    Производя более 10 тысяч стандартных и ряд специализированных моделей источников питания и придерживаясь принципа полной поддержки клиентов, крупнейший мировой производитель ИП, компания MEAN WELL, подготовила список часто задаваемых вопросов о... ...читать
