LPV-100-36

MEAN WELL
AC-DC источник питания: мощность 100 Вт, выходное напряжение 36 В, ток 2.8 А, входное напряжение 90-264 В, IP67, -25...+70C
развернуть ▼ свернуть ▲

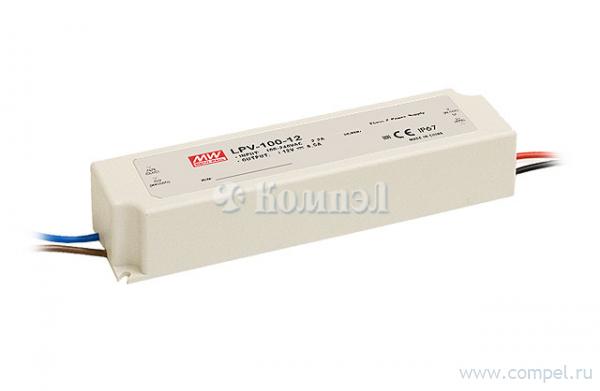

Фотография серии LPV-100

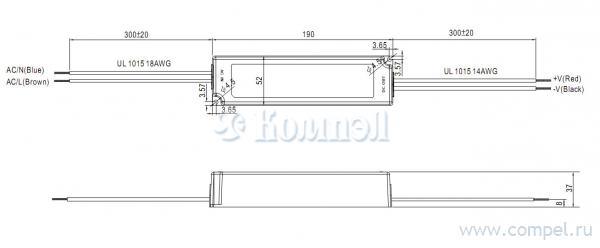

Чертёж серии LPV-100



Технические характеристики

показать свернуть
Тип преобразователя
Мощность выходная
Диапазон выходных напряжений
Диапазон выходных токов
Напряжение сети/входное номинальное
Режим стабилизации
Тип диммирования
Исполнение конструктивное
Степень защиты (IP)
Подстройка выходных параметров
Диапазон входных напряжений (AC)
Диапазон входных напряжений (DC)
Напряжение изоляции вход-выход
Количество выходов
Эффективность
Функция защиты КЗ, перегрузка, перенапряжение
Температура рабочая
Размер 190×52×37 мм
Применение
Особенности
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 2

показать свернуть
L P V- 1 0 0 100W Single Output Switching Power Supply ■ Features : series User’s Manual Constant voltage design Universal AC input / Full range Fully encapsulated with IP67 level (Note.7) Withstand 300VAC surge input for 5 seconds Protections: Short circuit / Overload / Over voltage Fully isolated plastic case Cooling by free air convection 100% full load burn-in test Low cost, high reliability Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)(Note.11) 2 years warranty IS 15885(Part 2/Sec13) IP67 SPECIFICATION MODEL OUTPUT LPV-100-12 LPV-100-15 LPV-100-24 LPV-100-36 LPV-100-48 DC VOLTAGE 5V 12V 15V 24V 36V 48V RATED CURRENT 12A 8.5A 6.7A 4.2A 2.8A 2.1A CURRENT RANGE 0 ~ 12A 0 ~ 8.5A 0 ~ 6.7A 0 ~ 4.2A 0 ~ 2.8A 0 ~ 2.1A RATED POWER 60W 102W 100.5W 100.8W 100.8W 100.8W RIPPLE & NOISE (max.) Note.2 80mVp-p 120mVp-p 120mVp-p 150mVp-p 150mVp-p 150mVp-p VOLTAGE TOLERANCE Note.3 ±8.0% ±5.0% 88% 88% 89% 41.4 ~ 48.6V 55.2 ~ 64.8V ±1.0% ±6.0% LOAD REGULATION SETUP, RISE TIME VOLTAGE RANGE 50ms/230VAC 2000ms, 25ms / 115VAC 14ms/115VAC at full load Note.4 90 ~ 264VAC 127 ~ 370VDC FREQUENCY RANGE 47 ~ 63Hz EFFICIENCY (Typ.) 80% AC CURRENT INRUSH CURRENT(Typ.) 2.2A/115VAC 1.2A/230VAC COLD START 75A(twidth=700μs measured at 50% Ipeak) at 230VAC MAX. No. of PSUs on 16A CIRCUIT BREAKER 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC LEAKAGE CURRENT OVERLOAD PROTECTION OVER VOLTAGE WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT 85% 87% 0.25mA / 240VAC 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed 5.75 ~ 6.75V 13.8 ~ 16.2V 17.25 ~ 20.25V 27.6 ~ 32.4V Protection type : Shut down o/p voltage, re-power on to recover -25 ~ +70℃ (Refer to "Derating Curve") 20 ~ 90% RH non-condensing -40 ~ +80℃, 10 ~ 95% RH ±0.03%/℃ (0 ~ 50℃) VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes SAFETY STANDARDS UL8750,CSA C22.2 No 250.13-12,UL879,CSA C22.2 No.207-M89,BIS IS15885(for LPV-100-12,LPV-100-24 only), EAC TP TC 004,IP67, IEC62368-1 approved; Design refer to BS EN/EN62368-1 SAFETY & WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMC EMISSION EMC IMMUNITY MTBF DIMENSION PACKING I/P-O/P:3KVAC I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A(≤80% load), BS EN/EN61000-3-3, EAC TP TC 020 Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN55024, light industry level, criteria A, EAC TP TC 020 703Khrs min. MIL-HDBK-217F (25℃) 190*52*37mm (L*W*H) 0.63Kg;20pcs/13.6Kg/0.55CUFT 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Derating may be needed under low input voltage. Please check the static characteristics for more details. 5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time. 7. Suitable for indoor use or outdoor use without direct sunlight exposure. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft). 9. Products sourced from the Americas regions may not have the TUV/BIS/CCC logo. Please contact your MEAN WELL sales for more information. 10. For any application note and IP water proof function installation caution, please refer our user manual before using. ‘ NOTE ±2.0% Note.6 2000ms, 25ms / 230VAC HOLD UP TIME (Typ.) OTHERS (for 12V,24V only) LPV-100-5 LINE REGULATION INPUT THOMAS SAMUEL THOMAS SAMUEL R-41027766 https://www.meanwell.com/Upload/PDF/LED_EN.pdf 11. This product is not intended for LED lighting luminaire applications in the EU.(In the EU the LPF/NPF/XLG series are recommended.) 12. To fulfill requirements of latest ErP regulation for lighting luminaires, this LED Driver can only be used behind a switch without permanently connected to mains. ※ Product Liability Disclaimer：For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx File Name:LPV-100-SPEC 2021-09-03 PDF
Документация на LPV-100-5

LPV-100.cdr

Дата модификации: 03.09.2021

Размер: 82.9 Кб

2 стр.

L P V- 1 0 0 100W Single Output Switching Power Supply series ■ Features : ‧Constant voltage design ‧Universal AC input / Full range ‧Fully encapsulated with IP67 level (Note.8) ‧Withstand 300VAC surge input for 5 seconds ‧Protections: Short circuit / Over current / Over voltage ‧Fully isolated plastic case ‧Cooling by free air convection ‧100% full load burn-in test ‧Low cost, high reliability ‧Suitable for LED lighting and moving sign applications(Note 7.) ‧2 years warranty IP67 SPECIFICATION MODEL LPV-100-12 LPV-100-15 LPV-100-24 LPV-100-36 LPV-100-48 5V 12V 15V 24V 36V 48V RATED CURRENT 12A 8.5A 6.7A 4.2A 2.8A 2.1A CURRENT RANGE 0 ~ 12A 0 ~ 8.5A 0 ~ 6.7A 0 ~ 4.2A 0 ~ 2.8A 0 ~ 2.1A RATED POWER 60W 102W 100.5W 100.8W 100.8W 100.8W RIPPLE & NOISE (max.) Note.2 80mVp-p 120mVp-p 120mVp-p 150mVp-p 150mVp-p 150mVp-p VOLTAGE TOLERANCE Note.3 ±8.0% ±5.0% 88% 88% 89% 41.4 ~ 48.6V 55.2 ~ 64.8V ±1.0% LINE REGULATION ±6.0% LOAD REGULATION SETUP, RISE TIME HOLD UP TIME (Typ.) VOLTAGE RANGE INPUT 50ms/230VAC Note.4 90 ~ 264VAC 127 ~ 370VDC 47 ~ 63Hz EFFICIENCY (Typ.) 80% AC CURRENT INRUSH CURRENT(Typ.) 2.2A/115VAC 1.2A/230VAC COLD START 75A(twidth=700μs measured at 50% Ipeak) at 230VAC OVER CURRENT PROTECTION OVER VOLTAGE WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS SAFETY & WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMC EMISSION EMC IMMUNITY MTBF DIMENSION PACKING NOTE 2000ms, 25ms / 115VAC 14ms/115VAC at full load FREQUENCY RANGE LEAKAGE CURRENT OTHERS ±2.0% Note.6 2000ms, 25ms / 230VAC 85% 87% 0.25mA / 240VAC 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed 5.75 ~ 6.75V 13.8 ~ 16.2V 17.25 ~ 20.25V 27.6 ~ 32.4V Protection type : Shut down o/p voltage, re-power on to recover -25 ~ +70℃ (Refer to "Derating Curve") 20 ~ 90% RH non-condensing -40 ~ +80℃, 10 ~ 95% RH ±0.03%/℃ (0 ~ 50℃) 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes IP67 approved; Design refer to TUV EN60950-1 I/P-O/P:3KVAC I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH Compliance to EN55022 (CISPR22) Class B, EN61000-3-2 Class A(≤80% load), EN61000-3-3 Compliance to EN61000-4-2,3,4,5,6,8,11; EN55024, light industry level, criteria A 703Khrs min. MIL-HDBK-217F (25℃) 190*52*37mm (L*W*H) 0.63Kg;20pcs/13.6Kg/0.55CUFT 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Derating may be needed under low input voltage. Please check the static characteristics for more details. 5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time. 7. The unit might not be suitable for lighting applications in EU countries. Please check with your local authorities for the possible use of the unit. 8. Suitable for indoor use or outdoor use without direct sunlight exposure. ‘ OUTPUT LPV-100-5 DC VOLTAGE File Name:LPV-100-SPEC 2014-03-27 PDF
Документация на серию LPV-100

LPV-100

Дата модификации: 02.04.2014

Размер: 461.8 Кб

2 стр.
