LPV-35-5

MEAN WELL
AC-DC источник питания: мощность 30 Вт, выходное напряжение 5 В, ток 6 А, входное напряжение 90-264 В, IP67, -30...+65C
развернуть ▼ свернуть ▲
Фотография серии LPV-35

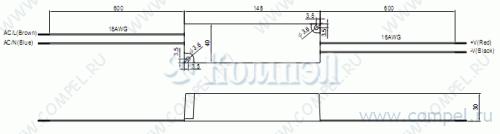

Чертеж серии LPV-35



Технические характеристики

показать свернуть
Тип преобразователя
Мощность выходная
Диапазон выходных напряжений
Диапазон выходных токов
Напряжение сети/входное номинальное
Режим стабилизации
Тип диммирования
Исполнение конструктивное
Степень защиты (IP)
Подстройка выходных параметров
Диапазон входных напряжений (AC)
Диапазон входных напряжений (DC)
Напряжение изоляции вход-выход
Количество выходов
Эффективность
Функция защиты КЗ, перегрузка, перенапряжение
Температура рабочая
Размер 148×40×30 мм
Применение
Особенности
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 2

показать свернуть
L P V- 3 5 35W Single Output Switching Power Supply ■ Features : series User’s Manual Constant voltage design Universal AC input / Full range Withstand 300VAC surge input for 5 seconds Protections: Short circuit / Overload / Over voltage Cooling by free air convection Fully encapsulated with IP67 level (Note.8) Fully isolated plastic case Class Ⅱ power unit, no FG Class 2 power unit Pass LPS Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)(Note.12) 100% full load burn-in test Low cost, high reliability 2 years warranty IS 15885(Part 2/Sec13) LPS IP67 SPECIFICATION MODEL OUTPUT LPV-35-12 LPV-35-15 LPV-35-24 LPV-35-36 DC VOLTAGE 5V 12V 15V 24V 36V RATED CURRENT 5A 3A 2.4A 1.5A 1A CURRENT RANGE 0 ~ 6A (Note.7) 0 ~ 3A 0 ~ 2.4A 0 ~ 1.5A 0 ~ 1A RATED POWER 30W 36W 36W 36W 36W RIPPLE & NOISE (max.) Note.2 80mVp-p 120mVp-p 120mVp-p 150mVp-p 150mVp-p VOLTAGE TOLERANCE Note.3 ±6.0% ±5.0% 85% 85% ±1.0% LOAD REGULATION SETUP, RISE TIME VOLTAGE RANGE 50ms/230VAC Note.4 90 ~ 264VAC 500ms, 20ms / 115VAC at full load 16ms/115VAC at full load 127 ~ 370VDC FREQUENCY RANGE 47 ~ 63Hz EFFICIENCY (Typ.) 77% AC CURRENT (Typ.) INRUSH CURRENT(Typ.) 1.1A/115VAC 0.7A/230VAC COLD START 55A(twidth=510μs measured at 50% Ipeak) at 230VAC MAX. No. of PSUs on 16A CIRCUIT BREAKER 4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC LEAKAGE CURRENT OVERLOAD PROTECTION OVER VOLTAGE WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS SAFETY & WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMC EMISSION EMC IMMUNITY 84% 84% 0.25mA / 240VAC 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed 5.75 ~ 6.75V 13.8 ~ 16.2V 17.25 ~ 20.25V 27.6 ~ 32.4V 41.4 ~ 48.6V Protection type : Shut down o/p voltage, re-power on to recover -30 ~ +65℃ (Refer to "Derating Curve") 20 ~ 90% RH non-condensing -40 ~ +80℃, 10 ~ 95% RH ±0.03%/℃ (0 ~ 50℃) 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes UL1310 class 2, CAN/CSA No. 223-M91, BIS IS15885(for LPV-35-12,LPV-35-24 only), IEC62368-1, EAC TP TC 004, IP67 approved;Design refer to BS EN/EN62368-1 I/P-O/P:3KVAC I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A, BS EN/EN61000-3-3, EAC TP TC 020 Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, criteria A, EAC TP TC 020 MTBF 743.5Khrs min. DIMENSION 148*40*30mm (L*W*H) 0.34Kg; 40pcs/14.6Kg/0.70CUFT PACKING NOTE ±2.0% ±4.0% Note.6 500ms, 20ms / 230VAC HOLD UP TIME (Typ.) OTHERS (for 12V,24V only) LPV-35-5 LINE REGULATION INPUT THOMAS SAMUEL THOMAS SAMUEL R-41027766 MIL-HDBK-217F (25℃) 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Derating may be needed under low input voltage. Please check the static characteristics for more details. 5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time. 7. LPV-35-5 can provide 6A of output current continuously. Based on the requirement of UL1310 class 2, the output current is only certified up to 5A for the test report of LPV-35-5. 8. Suitable for indoor use or outdoor use without direct sunlight exposure. Please avoid immerse in the water over 30 minute. 9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft). 10. Products sourced from the Americas regions may not have the TUV/BIS/CCC logo. Please contact your MEAN WELL sales for more information. 11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf 12. This product is not intended for LED lighting luminaire applications in the EU.(In the EU the LPF/NPF/XLG series are recommended.) 13. To fulfill requirements of latest ErP regulation for lighting luminaires, this LED Driver can only be used behind a switch without permanently connected to mains. ※ Product Liability Disclaimer：For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx File Name:LPV-35-SPEC 2021-09-03 PDF
Документация на LPV-35-12

LPV-35.cdr

Дата модификации: 03.09.2021

Размер: 72.8 Кб

2 стр.

L P V- 3 5 35W Single Output Switching Power Supply series ¡½ Features : ¡E ¡E ¡E ¡E ¡E ¡E ¡E ¡E ¡E ¡E ¡E ¡E ¡E ¡E Constant voltage design Universal AC input / Full range Withstand 300VAC surge input for 5 seconds Protections: Short circuit / Overload / Over voltage Cooling by free air convection Fully encapsulated with IP67 level (Note.9) Fully isolated plastic case Class power unit, no FG Class 2 power unit Pass LPS Suitable for LED lighting and moving sign applications (Note.8) 100% full load burn-in test Low cost, high reliability 2 years warranty ¢º LPS IP67 SPECIFICATION MODEL OUTPUT LPV-35-5 LPV-35-12 LPV-35-15 LPV-35-24 LPV-35-36 DC VOLTAGE 5V 12V 15V 24V 36V RATED CURRENT 5A 3A 2.4A 1.5A 1A CURRENT RANGE 0 ~ 6A (Note.7) 0 ~ 3A 0 ~ 2.4A 0 ~ 1.5A 0 ~ 1A RATED POWER 30W 36W 36W 36W 36W 120mVp-p 120mVp-p 150mVp-p 150mVp-p 85% 85% RIPPLE & NOISE (max.) Note.2 80mVp-p VOLTAGE TOLERANCE Note.3 LINE REGULATION LOAD REGULATION SETUP, RISE TIME INPUT 50ms/230VAC FREQUENCY RANGE 47 ~ 63Hz EFFICIENCY (Typ.) 77% AC CURRENT (Typ.) INRUSH CURRENT(max.) 1.1A/115VAC OVERLOAD PROTECTION OVER VOLTAGE WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION EMC OTHERS 500ms, 20ms / 115VAC at full load 16ms/115VAC at full load 127 ~ 370VDC 84% 84% 0.7A/230VAC £g COLD START 55A(twidth=510 s measured at 50% Ipeak) at 230VAC 0.25mA / 240VAC 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed 5.75 ~ 6.75V 13.8 ~ 16.2V 17.25 ~ 20.25V 27.6 ~ 32.4V -30 ~ +65 ¢J (Refer to "Derating Curve") 20 ~ 90% RH non-condensing ¢J, 10 ~ 95% RH ¡Ó0.03%/¢J (0 ~ 50¢J) -40 ~ +80 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes UL1310, CAN/CSA C22.2 No. 223-M91, IP67 approved ; design refer to TUV EN60950-1 WITHSTAND VOLTAGE I/P-O/P:3KVAC ISOLATION RESISTANCE I/P-O/P:>100M Ohms / 500VDC / 25 / 70% RH Compliance to EN55022 (CISPR22) Class B, EN61000-3-2 Class A, EN61000-3-3 EMC EMISSION EMC IMMUNITY 41.4 ~ 48.6V Protection type : Shut down o/p voltage, re-power on to recover SAFETY STANDARDS ¢J Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A MTBF 743.5Khrs min. DIMENSION 148*40*30mm (L*W*H) 0.34Kg; 40pcs/14.6Kg/0.63CUFT PACKING NOTE ¡Ó2.0% Note.4 90 ~ 264VAC LEAKAGE CURRENT SAFETY & ¡Ó5.0% Note.6 500ms, 20ms / 230VAC HOLD UP TIME (Typ.) VOLTAGE RANGE ¡Ó6.0% Ó¡ 1.0% Ó¡ 4.0% ¢J MIL-HDBK-217F (25 ) ¢J 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Derating may be needed under low input voltage. Please check the static characteristics for more details. 5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time. 7. LPV-35-5 can provide 6A of output current continuously. Based on the requirement of UL1310 class 2, the output current is only certified up to 5A for the test report of LPV-35-5. 8. The unit might not be suitable for lighting applications in EU countries. Please check with your local authorities for the possible use of the unit. 9. Suitable for indoor use or outdoor use without direct sunlight exposure. Please avoid immerse in the water over 30 minute. File Name:LPV-35-SPEC 2012-12-26 PDF
Документация на серию LPV-35

LPV-35.cdr Keywords:

Дата модификации: 09.01.2013

Размер: 74.9 Кб

2 стр.
