NFM-10-5

AC/DC преобразователь: На печатную плату; 10 Вт; Выход 5В/2А; Вход: 85...264VAC / 120...370VDC; -20...70°C
развернуть ▼ свернуть ▲



Технические характеристики

показать свернуть
Выходная мощность (ном)
Выход
Напряжение 1 канала
Выходной ток 1 канала
Тип стабилизации
Вход
Конструктивное исполнение
  Возможности: компактный дизайн, базовая модель, защита по II классу, источник открытого исполнения на ПП
Типы защиты КЗ, перегрузка, перенапряжение, перегрев
Количество выходов
Тип управления выходом
Исполнение
Входное напряжение AC
Входное напряжение DC
Коэффициент мощности
Напряжение изоляции вход-выход
Применение
КПД
Шум

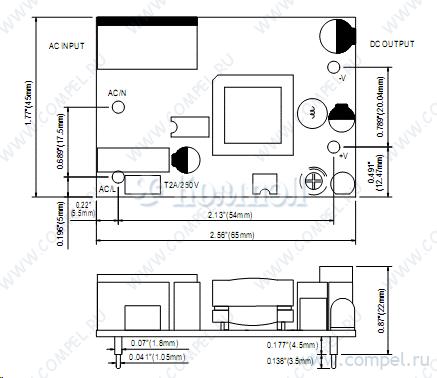

Размер 65×45×22 мм
Рабочая температура
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 16

показать свернуть
Тип Наименование Корпус Упаковка i P вых Выход U1 I1 Стабилизация Вход Конструктив Возможности Защита Выходов Управление IP U вх AC U вх DC Коэф. мощн. U изол вх-вых U изол вх-земля U изол вых-земля Применение КПД Шум T раб Карточка
товара
P= MFM-10-5 (MW) 1 шт КЗ, перегрузка, перегрев, перенапряжение
A+ MPM-10-5 (MW) 1 шт КЗ, перегрузка, перенапряжение, перегрев
A+ IRM-10-5 (MW) на поддоне 270 шт компактный дизайн, базовая модель, защита по II классу, источник закрытого исполнения на ПП КЗ, перегрузка, перенапряжение
A+ LD10-23B05R2 (MORNSUN) 1 шт КЗ, перегрузка, перенапряжение
A+ LD10-23B05R2-M (MORNSUN) 1 шт

A+ LDE10-20B05 (MORNSUN) 1 шт КЗ, перегрузка, перенапряжение
A+ LHE10-20B05 (MORNSUN) 1 шт КЗ, перегрузка, перенапряжение
A+ LS10-13B05R3 (MORNSUN) 1 шт КЗ, перегрузка, перенапряжение
A+ TMPS 10-105 (TRACO) 1 шт КЗ, перегрузка, перенапряжение
A+ TMT 10105 (TRACO) 1 шт AC-DC сетевой преобразователь - P вых: 10 Вт; Выход: 5 В; U1: 5 В; I1: до 2 А; Стабилиз... компактный дизайн, ограничение тока, источник закрытого исполнения на ПП
A+ TMPW 10-105 (TRACO) 10 шт
A+ RAC10-05SB (RECOM) 1 шт

A+ RAC10-05SB-E (RECOM) 8 шт

A+ RAC10-05SC/277 (RECOM) 1 шт
A+ RAC10-05SK/277 (RECOM) в линейках 15 шт
A+ RACM18-05SER (RECOM) THERMAL; OUTPUT OVER VOLTAGE; SHORT CIRCUIT

Файлы 2

показать свернуть
10W Single Output Medical Grade Switching Power Supply NFM-10 series ■ Features : Universal AC input / Full range Protections: Short circuit / Overload / Over voltage / Over temperature Ultra-miniature size, light weight Cooling by free air convection Isolation classⅡ Medical safety approved (2 x MOPP between primary to secondary) No load power consumption<0.5W 100% full load burn-in test Fixed switching frequency at 67KHz High reliability Suitable for BF application with appropriate system consideration 3 years warranty EN 60601-1 IEC 60601-1 SPECIFICATION 8 MODEL OUTPUT NFM-10-5 NFM-10-12 NFM-10-15 NFM-10-24 3.3V 5V 12V 15V 24V RATED CURRENT 2.5A 2A 0.85A 0.67A 0.42A CURRENT RANGE 0 ~ 2.5A 0 ~ 2A 0 ~ 0.85A 0 ~ 0.67A 0 ~ 0.42A RATED POWER 8.25W 10W 10.2W 10.05W 10.08W RIPPLE & NOISE (max.) Note.2 150mVp-p 150mVp-p 150mVp-p 150mVp-p 240mVp-p VOLTAGE ADJ. RANGE 4.5 ~ 5.5V 10.8 ~ 13.2V 13.5 ~ 16.5V 21.6 ~ 26.4V VOLTAGE TOLERANCE Note.3 ±2.0% 3 ~ 3.63V ±2.0% ±1.0% ±1.0% ±1.0% LINE REGULATION ±1.0% ±1.0% ±0.5% ±0.5% ±0.5% LOAD REGULATION ±1.0% ±1.0% ±0.5% ±0.5% ±0.5% SETUP, RISE TIME 1800ms, 20ms/230VAC HOLD UP TIME (Typ.) 100ms/230VAC VOLTAGE RANGE 85 ~ 264VAC FREQUENCY RANGE 47 ~ 440Hz 79% 79% NR EFFICIENCY (Typ.) 66% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 0.25A/115VAC LEAKAGE CURRENT 1800ms, 20ms/115VAC at full load 24ms/115VAC at full load 120 ~ 370VDC ND INPUT NFM-10-3.3 DC VOLTAGE 78% 74% 0.15A/230VAC COLD START 25A/115VAC 45A/230VAC Note.6 Touch current < 80μ A/264VAC OVERLOAD PROTECTION OVER VOLTAGE OVER TEMPERATURE Note.5 WORKING TEMP. Above 105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed 3.8 ~ 4.95V 5.75 ~ 6.75V 13.8 ~ 16.2V 17.25 ~ 20.25V Protection type : Shut down o/p voltage, recovers automatically after temperature goes down -20 ~ +70℃ (Refer to "Derating Curve") 20 ~ 90% RH non-condensing WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS ±0.03%/℃ (0 ~ 50℃) 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes ANSI/AAMI ES60601-1,TUV EN60601-1, IEC60601-1, EAC TP TC 004 approved ISOLATION LEVEL SAFETY & WITHSTAND VOLTAGE Primary-Secondary: 2xMOPP I/P-O/P:4KVAC EMC (Note 4) OTHERS -40 ~ +85℃, 10 ~ 95% RH ISOLATION RESISTANCE EMC EMISSION I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH Compliance to EN55011(CISPR11), EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020 EMC IMMUNITY MTBF Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN60601-1-2, EN61204-3, medical level, criteria A, EAC TP TC 020 DIMENSION PACKING NOTE 27.6 ~ 32.4V Protection type : Shut off o/p voltage, clamping by zener diode Tj 140℃ typically (U1) detect on main control IC 723.2Khrs min. MIL-HDBK-217F (25℃) 65*45*22mm (L*W*H) 0.045Kg; 120pcs/6.4Kg/0.97CUFT 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 5. The over temperature protection (OTP) is the built-in function of the control IC (U1). The activating level described above is based on the specification provided by the IC manufacturer. 6. Touch current was measured from primary input to DC output. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft). File Name:NFM-10-SPEC 2018-01-12 PDF
Документация на NFM-10-5

NFM-10-20180112.cdr

Дата модификации: 02.07.2019

Размер: 209 Кб

2 стр.

NFM-10 10W Output Switching Power Supply series Features : Universal AC input / Full range Protections: Short circuit / Overload / Over voltage / Over temperature Ultra-miniature size, light weight Cooling by free air convection Isolation class UL60601-1/IEC60601-1/EN60601-1 medical safety approved No load power consumption<0.5W 100% full load burn-in test Fixed switching frequency at 67KHz High reliability 3 years warranty EN60601-1 IEC60601-1 SPECIFICATION MODEL NFM-10-3.3 NFM-10-5 NFM-10-12 NFM-10-15 NFM-10-24 DC VOLTAGE 3.3V 5V 12V 15V 24V RATED CURRENT 2.5A 2A 0.85A 0.67A 0.42A CURRENT RANGE 0 ~ 2.5A 0 ~ 2A 0 ~ 0.85A 0 ~ 0.67A 0 ~ 0.42A RATED POWER 8.25W RIPPLE & NOISE (max.) Note.2 80mVp-p OUTPUT INPUT VOLTAGE ADJ. RANGE 10.05W 10.08W 150mVp-p 240mVp-p 4.5 ~ 5.5V 10.8 ~ 13.2V 13.5 ~ 16.5V 21.6 ~ 26.4V 2.0% 2.0% 1.0% 1.0% 1.0% LINE REGULATION 1.0% 1.0% 0.5% 0.5% 0.5% LOAD REGULATION 1.0% 1.0% 0.5% 0.5% 0.5% SETUP, RISE TIME 1000ms, 20ms/230VAC HOLD UP TIME (Typ.) 100ms/230VAC VOLTAGE RANGE 85 ~ 264VAC FREQUENCY RANGE 47 ~ 440Hz EFFICIENCY (Typ.) 66% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 0.25A/115VAC PROTECTION OVER VOLTAGE OVER TEMPERATURE Note.5 WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS WITHSTAND VOLTAGE SAFETY & ISOLATION RESISTANCE EMC EMI CONDUCTION & RADIATION (Note 4) HARMONIC CURRENT EMS IMMUNITY MTBF DIMENSION PACKING NOTE 10.2W 150mVp-p VOLTAGE TOLERANCE Note.3 OVERLOAD OTHERS 3 ~ 3.63V 10W 80mVp-p 1000ms, 20ms/115VAC at full load 24ms/115VAC at full load 120 ~ 370VDC 74% 78% 79% 79% 0.15A/230VAC COLD START 25A/115VAC 45A/230VAC Above 105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed 3.8 ~ 4.95V 13.8 ~ 16.2V 5.75 ~ 6.75V 17.25 ~ 20.25V 27.6 ~ 32.4V Protection type : Shut off Tj 140 typically (U1) Detect on main control IC Protection type : Shut down o/p voltage, recovers automatically after temperature goes down -20 ~ +70 (Refer to output load derating curve) 20 ~ 90% RH non-condensing -40 ~ +85 , 10 ~ 95% RH 0.03%/ (0 ~ 50 10 ~ 500Hz, 2G 10min./1cycle, Period for 60min.each along X, Y, Z axes UL60601-1,TUV EN60601-1 Approved I/P-O/P:4KVAC I/P-O/P:100M Ohms/500VDC Compliance to EN55011(CISPR11),EN55022 (CISPR22) Class B Compliance to EN61000-3-2,-3 Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, EN60601-1-2, EN61204-3 Medical level, criteria A 723.2Khrs min. MIL-HDBK-217F (25 65*45*22mm (L*W*H) 0.045Kg; 120pcs/6.4Kg/0.97CUFT ) 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 5. The over temperature protection (OTP) is the built-in function of the control IC (U1). The activating level described above is based on the specification provided by the IC manufacturer. File Name:NFM-10-SPEC 2006-12-18 PDF
Документация на серию NFM-10

NFM-10.cdr

Дата модификации: 12.01.2007

Размер: 256.4 Кб

2 стр.
