PID-250B

MEAN WELL
AC/DC преобразователь: Открытый; 250 Вт; Выходов 2: 24В/9.4А, 5В/5А; Вход: 90...264VAC / 127...370VDC; -20...70°C
развернуть ▼ свернуть ▲
Фотография серии PID-250

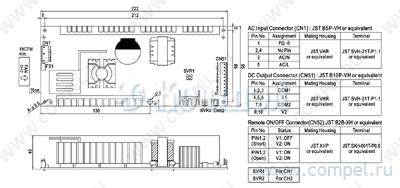

Чертеж серии PID-250



Технические характеристики

показать свернуть
Выходная мощность (ном)
Выход
Напряжение 1 канала
Выходной ток 1 канала
Тип стабилизации
Вход
Конструктивное исполнение
Возможности ККМ, изолированные каналы, дистанционное Вкл/Выкл
Типы защиты КЗ, перегрузка, перенапряжение, перегрев
Количество выходов
Тип управления выходом
Исполнение
Входное напряжение AC
Входное напряжение DC
Коэффициент мощности
Напряжение изоляции вход-выход
Напряжение изоляции вход-земля
Напряжение изоляции выход-земля
Применение
КПД
Шум
Размер 222×95×40 мм
Рабочая температура
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 2

показать свернуть
PID-250 250W Isolated Dual Output with PFC Function ■ Features : Universal AC input / Full range User’s Manual Isolated output & GND for CH1,CH2 Built-in active PFC function, PF>0.92 Protections:Short circuit / Overload / Over voltage / Over temperature Remote control for CH1 Peak load 170% for CH1 within 10 sec. Cooling by free air convection 100% full load burn-in test 3 years warranty Bauar t gepruft Sicherheit egel ma ge od o s be wac g www. tuv.com ID 2000000000 SPECIFICATION UL62368-1 MODEL PID-250A PID-250D CH1 CH2 CH1 CH2 CH1 CH2 CH1 CH2 DC VOLTAGE 12V 5V 24V 5V 36V 5V 48V 5V RATED CURRENT 15A(Peak 20A) 5A 9.4A(Peak 16.7A) 5A 6.3A(Peak 11.1A) 5A 0 ~ 15A 0 ~ 5A 0 ~ 9.4A (Peak 16.7A) 0 ~ 6.3A (Peak 11.1A) RIPPLE & NOISE (max.) Note.2 120mVp-p 50mVp-p 150mVp-p 50mVp-p VOLTAGE ADJ. RANGE 4.75 ~ 5.25V ±2.0% 21.6 ~ 26.4V ±2.0% Note.6 (Peak 20A) RATED POWER 4.7A(Peak 8.4A) 5A 0 ~ 5A 0 ~ 4.7A (Peak 8.4A) 200mVp-p 50mVp-p 200mVp-p 50mVp-p 4.75 ~ 5.25V ±2.0% 32.4 ~ 39.6V ±2.0% 4.75 ~ 5.25V ±2.0% 43.2 ~ 52.8V ±2.0% 4.75 ~ 5.25V ±2.0% 0 ~ 5A 250.6W 205W 10.8 ~ 13.2V VOLTAGE TOLERANCE Note.3 ±3.0% 251.8W 0 ~ 5A 250.6W LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% LOAD REGULATION ±1.0% ±2.0% ±1.0% ±2.0% ±1.0% ±2.0% ±1.0% ±2.0% SETUP, RISE TIME 2500ms, 60ms/115VAC HOLD UP TIME (Typ.) 30ms at full load VOLTAGE RANGE INPUT PID-250C OUTPUT NUMBER CURRENT RANGE OUTPUT PID-250B BS EN/EN62368-1 TPTC004 IEC62368-1 Note.5 90 ~ 264VAC 127 ~ 370VDC FREQUENCY RANGE 47 ~ 63Hz POWER FACTOR PF≧0.92/230VAC EFFICIENCY(Typ.) 83% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 3A/115VAC LEAKAGE CURRENT 1200ms, 60ms/230VAC PF≧0.97/115VAC at full load 86% 86% 86% 1.5A/230VAC COLD START 58A/230VAC <3.5mA / 240VAC CH1: 105 ~ 170% rated output power Normally work within 10 sec and then shut down, re-power on to recover OVERLOAD Over 180% rated power or short circuit, constant current limiting within 10 sec and then shut down, re-power on to recover CH2: 101 ~ 150% rated output power PROTECTION OVER VOLTAGE Protection type : Hiccup mode, recovers automatically after fault condition is removed 40 ~ 48V 5.5~ 6.75V 54 ~ 64.8V 5.5 ~ 6.75V 13.8 ~ 16.2V 5.5 ~ 6.75V 27.6 ~ 32.4V 5.5 ~ 6.75V Protection type : Shut down o/p voltage, re-power on to recover for CH1 ; Hiccup mode, recovers automatically afer fault condition OVER TEMPERATURE Shut down o/p voltage(CH1), recovers automatically after temperature goes down is removed for CH2(by zener diode clamp) FUNCTION REMOTE CONTROL WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS SAFETY & WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC (Note 4) EMC EMISSION EMC IMMUNITY MTBF OTHERS DIMENSION PACKING NOTE CN52 : Open=CH1 & CH2 power on ; Short = CH1 power off, CH2 power on; when CH2 is malfunction, CH1 will be shut down -20 ~ +70℃ (Refer to "Derating Curve") 20 ~ 90% RH non-condensing -20 ~ +85℃, 10 ~ 95% RH ±0.05%/℃ (0 ~ 50℃) 10 ~ 500Hz, 2G 10min./1cycle, period for 60min each along X, Y, Z axes UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 Compliance to BS EN/ EN61000-4-2,3,4,5,6,8,11, BS EN/ EN61000-6-2, heavy industry level, criteria A , EAC TP TC 020 150.4K hrs min. MIL-HDBK-217F (25℃) 222*95*40mm (L*W*H) 0.74Kg; 18pcs/14.3Kg/0.98CUFT 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com) 5. Derating may be needed under low input voltage. Please check the derating curve for more details. 6. Peak current should reduce to 150% of rated value if the input voltage <110VAC. 7. Heat Sink HS1,HS2,HS3 can not be shorted. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft). ※ Product Liability Disclaimer：For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx File Name:PID-250-SPEC 2021-09-15 PDF
Документация на PID-250C

PID-250-20210915.cdr

Дата модификации: 26.11.2021

Размер: 117.4 Кб

2 стр.

PID-250 250W Isolated Dual Output with PFC Function Features : Universal AC input / Full range Isolated output & GND for CH1,CH2 Built-in active PFC function, PF>0.93 Protections:Short circuit/Overload/Over voltage/Over temperature Remote control for CH1 Cooling by free air convection 100% full load burn-in test Peak load 170% for CH1 within 10 sec. 3 years warranty SPECIFICATION MODEL PID-250A PID-250D CH2 CH1 CH2 CH1 CH2 CH1 CH2 DC VOLTAGE 12V 5V 24V 5V 36V 5V 48V 5V RATED CURRENT 15A(Peak 20A) 5A 9.4A(Peak 16.7A) 5A 6.3A(Peak 11.1A) 5A 0 ~ 15A 0 ~ 9.4A (Peak 16.7A) 0 ~ 5A 0 ~ 6.3A (Peak 11.1A) 0 ~ 5A Note.6 (Peak 20A) 205W RATED POWER 250.6W 0 ~ 5A 251.8W 4.7A(Peak 8.4A) 5A 0 ~ 4.7A (Peak 8.4A) 0 ~ 5A 250.6W RIPPLE & NOISE (max.) Note.2 120mVp-p 50mVp-p 150mVp-p 50mVp-p 200mVp-p 50mVp-p 200mVp-p 50mVp-p VOLTAGE ADJ. RANGE 4.75 ~ 5.25V 2.0% 21.6 ~ 26.4V 2.0% 4.75 ~ 5.25V 2.0% 32.4 ~ 39.6V 2.0% 4.75 ~ 5.25V 2.0% 43.2 ~ 52.8V 2.0% 4.75 ~ 5.25V 2.0% 10.8 ~ 13.2V VOLTAGE TOLERANCE Note.3 3.0% LINE REGULATION 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% LOAD REGULATION 1.0% 2.0% 1.0% 2.0% 1.0% 2.0% 1.0% 2.0% 2500ms, 60ms/115VAC SETUP, RISE TIME 1200ms, 60ms/230VAC 30ms at full load HOLD UP TIME (Typ.) VOLTAGE RANGE INPUT PID-250C CH1 CURRENT RANGE OUTPUT PID-250B OUTPUT NUMBER Note.5 90 ~ 264VAC 127 ~ 370VDC FREQUENCY RANGE 47 ~ 63Hz POWER FACTOR PF 0.93/230VAC EFFICIENCY(Typ.) 84% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 3A/115VAC LEAKAGE CURRENT PF 0.97/115VAC at full load 87% 87% 87% 1.5A/230VAC COLD START 55A/230VAC <3.5mA / 240VAC CH1: 105 ~ 170% rated output power Normally work within 10 sec and then shut down, re-power on to recover Over 180% rated power or short circuit, constant current limiting within 10 sec and then shut down, re-power on to recover OVERLOAD CH2: 101 ~ 135% rated output power PROTECTION OVER VOLTAGE Protection type : Hiccup mode, recovers automatically after fault condition is removed 13.8 ~ 16.2V 5.5 ~ 6.75V 27.6 ~ 32.4V 5.5 ~ 6.75V 40 ~ 48V 5.5~ 6.75V 54 ~ 64.8V 5.5 ~ 6.75V Protection type : Shut down o/p voltage, re-power on to recover for CH1 ; Hiccup mode, recovers automatically afer fault condition is removed for CH2.(by zener diode clamp) OVER TEMPERATURE FUNCTION REMOTE CONTROL WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS WITHSTAND VOLTAGE 95 5 Detect on heatsink of power transistor Protection type : Shut down o/p voltage, recovers automatically after temperature goes down CN52 : Open=CH1 & CH2 power on ; Short = CH1 power off, CH2 power on. when CH2 is malfunction, CH1 will be shut down -20 ~ +70 (Refer to output load derating curve) 20 ~ 90% RH non-condensing -20 ~ +85 , 10 ~ 95% RH 0.05%/ (0 ~ 50 10 ~ 500Hz, 2G 10min./1cycle, Period for 60min.each along X, Y, Z axes UL60950-1, TUV EN60950-1 Approved I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC SAFETY & I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC 25 70%RH ISOLATION RESISTANCE EMC EMI CONDUCTION & RADIATION Compliance to EN55022 (CISPR22) Class B (Note 4) HARMONIC CURRENT Compliance to EN61000-3-2,-3 OTHERS EMS IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, Heavy industry level, criteria A MTBF 150.4Khrs min. MIL-HDBK-217F (25 ) 222*95*40mm open frame type (L*W*H), 250*105.4*53mm enclosed type (L*W*H) 0.74Kg; 18pcs/14.3Kg/0.91CUFT DIMENSION PACKING NOTE 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 5. Derating may be needed under low input voltage. Please check the derating curve for more details. 6. Peak current should reduce to 150% of rated value if the input voltage <110VAC. File Name:PID-250-SPEC 2007-01-10 PDF
Документация на серию PID-250

PID-250.cdr

Дата модификации: 26.03.2007

Размер: 427.7 Кб

3 стр.
