PLC-45-48

ИП для светодиодного освещения: 45.6 Вт; 950 мА / до 48 В (стаб. по току или напр.); вход: 90…264 В
развернуть ▼ свернуть ▲



Технические характеристики

показать свернуть
Тип преобразователя
Мощность выходная
Диапазон выходных напряжений
Диапазон выходных токов
Напряжение сети/входное номинальное
Режим стабилизации
Тип диммирования
Исполнение конструктивное
Степень защиты (IP)
Подстройка выходных параметров
Диапазон входных напряжений (AC)
Диапазон входных напряжений (DC)
Напряжение изоляции вход-выход
Количество выходов
Коэффициент мощности
Эффективность
Функция защиты КЗ, перегрузка, перенапряжение, перегрев
Температура рабочая

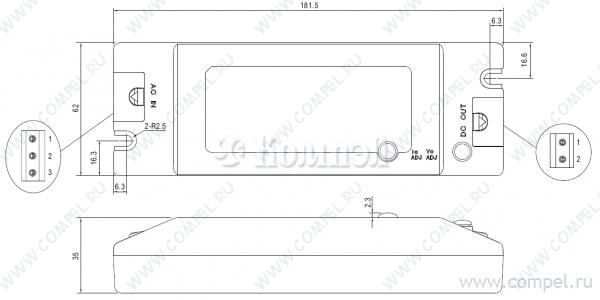

Размер 181×62×35 мм
Применение
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 2

показать свернуть
PLC-45 45W Single Output LED Power Supply series ■ ‧ ‧ ‧ User’s Manual  ‧ ‧ ‧ ‧ ≧ ‧ ‧ ‧ ‧ ‧ ‧ ‧  SPECIFICATION MODEL   LPS ..   PLC-45-12 PLC-45-15 PLC-45-20 PLC-45-24 PLC-45-27 PLC-45-36 PLC-45-48 12V 15V 20V 24V 27V 36V 48V CONSTANT CURRENT REGION Note.6 9 ~ 12V 11.25 ~15V 15 ~ 20V 18 ~24V 20.25 ~27V 27 ~ 36V 36 ~ 48V RATED CURRENT 3.8A 3A 2.3A 1.9A 1.7A 1.25A 0.95A CURRENT RANGE 0 ~ 3.8A 0 ~ 3A 0 ~ 2.3A 0 ~ 1.9A 0 ~ 1.7A 0 ~ 1.25A 0 ~ 0.95A RATED POWER 45.6W 45W 46W 45.6W 45.9W 45W 45.6W RIPPLE & NOISE (max.) Note.2 2Vp-p 2.4Vp-p 1.8Vp-p 2.7Vp-p 2.7Vp-p 3.6Vp-p 4.6Vp-p VOLTAGE ADJ. RANGE Note.5 11.5 ~ 13V 14.5 ~ 16.2V 19.5 ~ 22V 24 ~ 26V 25 ~ 30V 32.5 ~ 39V 43.6 ~ 51.8V CURRENT ADJ. RANGE Note.5 2.85 ~ 3.914A 2.25 ~ 3.1A 1.725 ~ 2.37A 1.425 ~1.957A 1.275 ~ 1.75A 0.938 ~ 1.288A 0.713 ~ 0.979A DC VOLTAGE OUTPUT  VOLTAGE TOLERANCE Note.3 ±10% LINE REGULATION ±3.0% LOAD REGULATION ±5.0% SETUP TIME VOLTAGE RANGE INPUT 500ms / 230VAC 1200ms / 115VAC at full load Note.4 90 ~ 264VAC 47 ~ 63Hz POWER FACTOR (Typ.) TOTAL HARMONIC DISTORTION PF>0.92/115VAC, PF>0.9/230VAC at full load (Please refer to "Power Factor Characteristic" curve) THD< 20% when output loading≧75% at 115VAC/230VAC input EFFICIENCY (Typ.) 84.5% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 0.55A/115VAC 0.25A/230VAC COLD START 35A(twidth=50μs measured at 50% Ipeak) at 230VAC MAX. No. of PSUs on 16A CIRCUIT BREAKER 42 units (circuit breaker of type B) / 42 units (circuit breaker of type C) at 230VAC 86.5% 86.5% <0.75mA / 240VAC OVER CURRENT 95 ~ 110% SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed. 13.8 ~ 16V 17.5 ~ 21V 22.8 ~ 25V 28 ~ 32V 86.5% 87.5% 87.5% Protection type : Constant current limiting, recovers automatically after fault condition is removed 31 ~ 35V 41 ~ 46V 54 ~ 60V Protection type : Shut down o/p voltage, re-power on to recover OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down WORKING TEMP. -30 ~ +50℃ (Refer to "Derating Curve") WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT 20 ~ 95% RH non-condensing -40 ~ +80℃, 10 ~ 95% RH ±0.03%/℃ (0 ~ 50℃) VIBRATION 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes SAFETY STANDARDS UL1310, TUV BS EN/EN61347-1, BS EN/EN61347-2-13, GB19510.14, GB19510.1, CAN/CSA C22.2 No. 223-M91(except for 48V), EAC TP TC 004 approved I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC SAFETY & WITHSTAND VOLTAGE EMC ISOLATION RESISTANCE EMC IMMUNITY I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH Compliance to BS EN/EN55015, GB17743, GB17625.1, BS EN/EN61000-3-2 Class C (≧75% load) ; BS EN/EN61000-3-3, EAC TP TC 020 Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024,BS EN/EN61547, light industry level, criteria A,EAC TP TC 020 MTBF 515Khrs min. DIMENSION 181.5*62*35mm (L*W*H) 0.41Kg; 30pcs/13.3Kg/0.67CUFT EMC EMISSION PACKING NOTE 85% LEAKAGE CURRENT PROTECTION OVER VOLTAGE OTHERS 127 ~ 370VDC FREQUENCY RANGE MIL-HDBK-217F (25℃) ℃           ℃℃ ※ Product Liability Disclaimer:For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx File Name:PLC-45-SPEC 2021-12-24 PDF
Документация на PLC-45-48

PLC-45.cdr

Дата модификации: 24.12.2021

Размер: 551.8 Кб

3 стр.

PLC-45 45W Single Output LED Power Supply series Features : Universal AC input / Full range Fully isolated plastic case with terminal block style of I/O Built-in constant current limiting circuit Adjustable output voltage and current level Protections:Short circuit/Over load/Over voltage/Over temperature Built-in active PFC function, comply with EN61000-3-2 class C ( 75% load) UL1310 class 2 power unit Pass LPS Cooling by free air convection 100% full load burn-in test High reliability Suitable for LED lighting and moving sign applications Compliance to worldwide safety regulations for lighting 2 years warranty 110 F M SELV M EQUIVALENT SPECIFICATION MODEL DC VOLTAGE ( except for 48V ) PLC-45-15 PLC-45-20 PLC-45-24 PLC-45-27 PLC-45-36 12V 15V 20V 24V 27V 36V PLC-45-48 48V 11.25 ~15V 15 ~ 20V 18 ~24V 20.25 ~27V 27 ~ 36V 36 ~ 48V RATED CURRENT 3.8A 3A 2.3A 1.9A 1.7A 1.25A 0.95A CURRENT RANGE 0 ~ 3.8A 0 ~ 3A 0 ~ 2.3A 0 ~ 1.9A 0 ~ 1.7A 0 ~ 1.25A 0 ~ 0.95A RATED POWER 45.6W 45W 46W 45.6W 45.9W 45W 45.6W RIPPLE & NOISE (max.) Note.2 2Vp-p 2.4Vp-p 1.8Vp-p 2.7Vp-p 2.7Vp-p 3.6Vp-p 4.6Vp-p VOLTAGE ADJ. RANGE Note.5 11.5 ~ 13V 14.5 ~ 16.2V 19.5 ~ 22V 24 ~ 26V 25 ~ 30V 32.5 ~ 39V 43.6 ~ 51.8V CURRENT ADJ. RANGE Note.5 2.85 ~ 3.914A 2.25 ~ 3.1A 1.725 ~ 2.37A 1.425 ~1.957A 1.275 ~ 1.75A 0.938 ~ 1.288A 0.713 ~ 0.979A 86.5% 86.5% 87.5% 87.5% VOLTAGE TOLERANCE Note.3 10% LINE REGULATION 3.0% 5.0% LOAD REGULATION 1500ms / 230VAC 3000ms / 115VAC at full load SETUP TIME VOLTAGE RANGE INPUT ( for 48V only) PLC-45-12 CONSTANT CURRENT REGION Note.6 9 ~ 12V OUTPUT LPS Note.4 90 ~ 264VAC 127 ~ 370VDC FREQUENCY RANGE 47 ~ 63Hz POWER FACTOR PF 0.9 at 75 ~ 100% load, 115VAC / 230VAC EFFICIENCY(Typ.) 83.5% 85% AC CURRENT INRUSH CURRENT(max.) 0.55A/115VAC 40A/230VAC 0.25A/230VAC LEAKAGE CURRENT OVER CURRENT SHORT CIRCUIT PROTECTION OVER VOLTAGE OVER TEMPERATURE WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT 86.5% <0.75mA / 240VAC 110% (max) 95 ~ 110% Protection type : Constant current limiting, recovers automatically after fault condition is removed Hiccup mode, recovers automatically after fault condition is removed. 13.8 ~ 16V 17.5 ~ 21V 22.8 ~ 25V 28 ~ 32V 31 ~ 35V 41 ~ 46V 54 ~ 60V Protection type : Shut down o/p voltage, re-power on to recover 95 10 (TSW1) detect on heatsink of power transistor Protection type : Shut down o/p voltage, recovers automatically after temperature goes down -30 ~ +50 (Refer to output load derating curve) 20 ~ 95% RH non-condensing -40 ~ +80 , 10 ~ 95% RH 0.03%/ (0 ~ 50 ) VIBRATION 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes SAFETY STANDARDS UL1310 Class 2, TUV EN61347-1, EN61347-2-13, CAN/CSA C22.2 No. 223-M91(except for 48V) approved WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC SAFETY & ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25 / 70% RH EMC EMI CONDUCTION & RADIATION Compliance to EN55015, EN55022 (CISPR22) Class B Compliance to EN61000-3-2 Class C ( 75% load) ; EN61000-3-3 HARMONIC CURRENT EMS IMMUNITY MTBF OTHERS DIMENSION PACKING NOTE Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024,EN61547, light industry level, criteria A 515Khrs min. MIL-HDBK-217F (25 ) 181.5*62*35mm (L*W*H) 0.41Kg; 30pcs/13.3Kg/0.67CUFT 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. Direct connecting to LEDs is not suggested for models with “RIPPLE & NOISE” > 10% and using additional drivers is highly recommended. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Derating may be needed under low input voltage. Please check the static characteristics for more details. 5. Output voltage can be adjusted through the SVR1 on the PCB ; limit of output constant current level can be adjusted through the SVR2 on the PCB. 6. Constant current operation region is within 75% ~100% rated output voltage. This is the suitable operation region for LED related applications, but please reconfirm special electrical requirements for some specific system design. 7. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. File Name:PLC-45-SPEC 2010-08-10 PDF
Документация на серию PLC-45

PLC-45.cdr

Дата модификации: 04.10.2010

Размер: 144.9 Кб

3 стр.
