PLD-16-350B

MEAN WELL
AC/DC драйвер LED
развернуть ▼ свернуть ▲

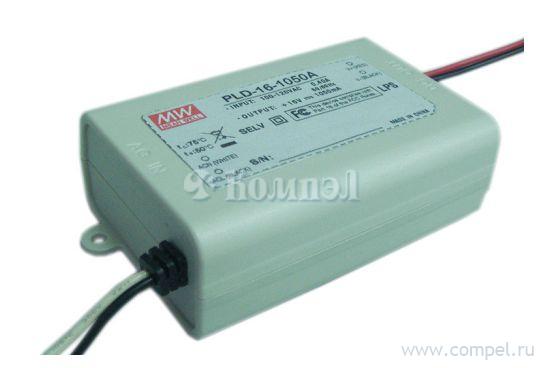

Фотография серии PLD-16
Чертёж серии PLD-16



Технические характеристики

показать свернуть
Тип преобразователя
Мощность выходная
Диапазон выходных напряжений
Диапазон выходных токов
Напряжение сети/входное номинальное
Режим стабилизации
Тип диммирования
Исполнение конструктивное
Степень защиты (IP)
Подстройка выходных параметров
Диапазон входных напряжений (AC)
Диапазон входных напряжений (DC)
Напряжение изоляции вход-выход
Количество выходов
Коэффициент мощности
Эффективность
Функция защиты
Температура рабочая
Размер 84×57×29.5 мм
Применение
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 2

показать свернуть
PLD-16 16W Single Output LED Power Supply ■ Features : series User’s Manual 115VAC or 230VAC models available Built-in active PFC function Constant current design Protections: Short circuit / Over temperature Cooling by free air convection Fully isolated plastic case Class 2 Power Unit Class Ⅱ power unit, no FG IP42 design Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices) SELV PLD-16-350 A 100% full load burn-in test Low cost High reliability 3 years warranty 110 IP42 ( for B type only) ( for A type only) ( for B type only) ( for B type only) ( for B type only) ( for B type only) A : With AC input 90~ 135VAC. B : With AC input 180~ 295VAC. SPECIFICATION MODEL RATED CURRENT PLD-16-350 PLD-16-700 PLD-16-1050 PLD-16-1400 350mA 700mA 1050mA 1400mA 16 ~ 24V 12 ~ 16V 8 ~ 12V OPERATING VOLTAGE RANGE 24 ~ 48V OUTPUT INPUT CURRENT ACCURACY ±5.0% RATED POWER 16.8W 16.8W 16.8W 16.8W RIPPLE & NOISE (max.) Note.1 4.6Vp-p 2.7Vp-p 2.2Vp-p 2Vp-p NO LOAD OUTPUT VOLTAGE (max.) 60V 35V 25V 16V SETUP TIME 500ms / 230VAC 2000ms / 115VAC at full load FREQUENCY RANGE 47 ~ 63Hz PF>0.9/115VAC, PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve) POWER FACTOR (Typ.) A series THD< 20% when output loading≧70% at 115VAC TOTAL HARMONIC DISTORTION B series THD< 20% when output loading≧70% at 230VAC input and output loading≧80% at 277VAC input 84.5% 84% 82.5% A series 84.5% EFFICIENCY (Typ.) 86% 85% 83.5% B series 85.5% AC CURRENT (Typ.) INRUSH CURRENT(Typ.) MAX. No. of PSUs on 16A CIRCUIT BREAKER A series 58 units (circuit breaker of type B) / 58 units (circuit breaker of type C) at 115VAC B series 128 units (circuit breaker of type B) / 128 units (circuit breaker of type C) at 230VAC LEAKAGE CURRENT SHORT CIRCUIT PROTECTION OVER TEMPERATURE WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT SAFETY & EMC -30 ~ +50℃ (Refer to "Derating Curve") 20 ~ 95% RH non-condensing -40 ~ +80℃, 10 ~ 95% RH ±0.03%/℃ (0 ~ 50℃) 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes SAFETY STANDARDS UL8750,CSA C22.2 No.250.0-08;ENEC BS EN/EN 613471-1,BS EN/EN 61347-2-13 independent, BS EN/EN62384(for B type only), EAC TP TC 004, IP42 approved WITHSTAND VOLTAGE I/P-O/P:3.75KVAC ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH Compliance to BS EN/EN55015 (B type only), BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3, FCC part 18 non-consumer equipment(A type only), EAC TP TC 020 EMC IMMUNITY MTBF DIMENSION PACKING NOTE <0.5mA / 240VAC Hiccup mode, recovers automatically after fault condition is removed. Shut down o/p voltage, re-power on to recover VIBRATION EMC EMISSION OTHERS 0.4A/115VAC 0.2A/230VAC 0.15A/277VAC COLD START 20A(twidth=25μs measured at 50% Ipeak) at 230VAC Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level, criteria A, EAC TP TC 020 906.5Khrs min. MIL-HDBK-217F (25℃) 84*57*29.5mm (L*W*H) 0.19Kg; 72pcs/14.7Kg/0.92CUFT 1. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 2. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers. 3. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains. 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft). 5. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf ※ Product Liability Disclaimer：For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx File Name:PLD-16-SPEC 2021-09-10 PDF
Документация на PLD-16-700B

PLD-16.cdr

Дата модификации: 06.09.2021

Размер: 100.1 Кб

3 стр.

PLD-16 16W Single Output LED Power Supply series Features : na ry 115VAC or 230VAC models available Built-in active PFC function Constant current design Protections: Short circuit / Over temperature Cooling by free air convection Fully isolated plastic case Class power unit, no FG Suitable for indoor LED lighting applications 100% full load burn-in test Low cost High reliability 3 years warranty PLD-16-700 PLD-16-1050 PLD-16-1400 700mA 1050mA 1400mA 16 ~ 24V 12 ~ 16V 8 ~ 12V 0 ~ 700mA 0 ~ 1050mA 0 ~ 1400mA SELV PLD-16-350 A A : With AC input 90~ 135VAC. B : With AC input 180~ 295VAC. SPECIFICATION MODEL PLD-16-350 RATED CURRENT 350mA OPERATING VOLTAGE RANGE 24 ~ 48V INPUT PROTECTION 16.8W 16.8W 2.7Vp-p 2.2Vp-p 2Vp-p NO LOAD OUTPUT VOLTAGE (max.) 63V 35V 25V 16.8W 16V SETUP TIME 1000ms / 230VAC 2000ms / 115VAC at full load FREQUENCY RANGE 47 ~ 63Hz POWER FACTOR (Typ.) PF>0.9/115VAC, PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve) EFFICIENCY (Typ.) 86% AC CURRENT (Typ.) INRUSH CURRENT(max.) 0.4A/115VAC 40A/230VAC 84% <0.5mA / 240VAC SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed. 95 10 (RTH1) OVER TEMPERATURE 84% Protection type : Shut down o/p voltage, re-power on to recover -30 ~ +60 (Refer to "Derating Curve") 20 ~ 95% RH non-condensing -40 ~ +80 0.03%/ , 10 ~ 95% RH (0 ~ 50 ) 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes SAFETY STANDARDS Design refer to UL8750, EN61347-1, EN61347-2-13 WITHSTAND VOLTAGE I/P-O/P:3.75KVAC ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25 / 70% RH Compliance to EN55015 (B type only), EN61000-3-2 Class C ; EN61000-3-3, FCC part5 Class B (A type only) Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level, criteria A EMC EMISSION 906.5Khrs min. MIL-HDBK-217F (25 84*57*29.5mm (L*W*H) 0.19Kg; 72pcs/14.7Kg/0.92CUFT Pr EMC IMMUNITY MTBF DIMENSION PACKING NOTE 86% 0.2A/230VAC LEAKAGE CURRENT VIBRATION OTHERS ( for B type only) 5.0% 16.8W WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT EMC ( for B type only) RIPPLE & NOISE (max.) Note.1 4.6Vp-p RATED POWER WORKING TEMP. SAFETY & ( for A type only) eli OUTPUT CURRENT ACCURACY 0 ~ 350mA mi CURRENT RANGE ( for A type only) ) 1. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 2. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers. File Name:PLD-16-SPEC 2011-09-30 PDF
Документация на серию PLD-16

PLD-16(110930).cdr

Дата модификации: 18.10.2011

Размер: 204.2 Кб

3 стр.

    Публикации 3

    показать свернуть
    01 сентября 2021
    статья

    Светодиодные драйверы MEAN WELL для систем внутреннего освещения

    Игорь Елисеев (г. Химки) LED–драйверы MEAN WELL применимы во всех сегментах светодиодного освещения. Семейства APC, PLD, PCD, LDC и LCM включают в себя практически все возможные варианты с различными наборами характеристик для разнообразных... ...читать

    07 декабря 2012
    статья

    Теперь – по технологии SC3: новые светодиоды от CREE

        Эту статью можно начать со слов старшего директора по маркетингу компании CREE Майка Уотсона: «Инновации в производительность и оптимизацию светодиодов для различных приложений имеют решающее значение для разработки... ...читать

    17 августа 2012
    новость

    PLD-16 - сетевые источники питания для LED освещения

    Серия LED драйверов PLD–16 от компании MEAN WELL представлена источниками постоянного тока на 350, 700, 1050, 1400 мА с широким диапазоном входного напряжения переменного тока и предназначена для установки в осветительные приборы с... ...читать
