PLP-60-12

MEAN WELL
ИП для светодиодного освещения: 60 Вт; 5000 мА / до 12 В (стаб. по току или напр.); вход: 90...264 В; Выходная мощность: 60 Вт Входное напряжение: 90...264 В Режим стабилизации ток/напряжение: ток или напряжение Выходной ток (макс): 5000 мА Выходное напряжение: до 12 В Тип управления выходным током: IRES Напряжение изоляции вход-выход: 3.75 кВ Размер: 102.0x51.0x28.0 мм Рабочая температура: -30...70 °C Температура хранения: -40...80 °C
развернуть ▼ свернуть ▲

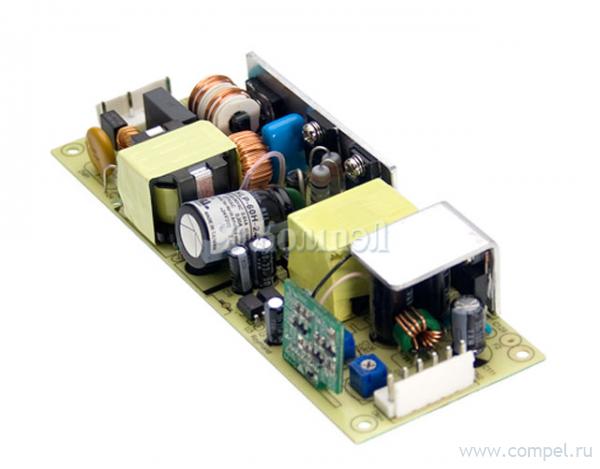

Фотография серии PLP-60
Чертеж серии PLP-60



Технические характеристики

показать свернуть
Тип преобразователя
Мощность выходная
Диапазон выходных напряжений
Диапазон выходных токов
Напряжение сети/входное номинальное
Режим стабилизации
Тип диммирования
Исполнение конструктивное
Степень защиты (IP)
Подстройка выходных параметров
Диапазон входных напряжений (AC)
Диапазон входных напряжений (DC)
Напряжение изоляции вход-выход
Количество выходов
Коэффициент мощности
Эффективность
Функция защиты КЗ, перегрузка, перенапряжение
Температура рабочая
Размер 102×50.8×30 мм
Применение
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 2

показать свернуть
PLP-60 60W Single Output LED Power Supply series User’s Manual ■ Features : Universal AC input / Full range Protections: Short circuit / Over current / Over voltage Built-in active PFC function Cooling by free air convection Class 2 power unit Output current level adjustable 100% full load burn-in test High reliability Suitable for built-in applications of LED lighting 2 years warranty Bauar t gepruft Sicherheit egel ma ge od o s be wac g ( for 48V only) SPECIFICATION www. tuv.com ID 2000000000 BS EN/EN61347-1,-2-13 MODEL DC VOLTAGE PLP-60-12 PLP-60-24 12V 24V 48V 18 ~ 24V 36 ~ 48V CONSTANT CURRENT REGION Note.5 9 ~ 12V OUTPUT ( except for 48V ) PLP-60-48 RATED CURRENT 5A 2.5A 1.3A CURRENT RANGE 0 ~ 5A 0 ~ 2.5A 0 ~ 1.3A RATED POWER 60W 60W 62.4W 4.5Vp-p 4.8Vp-p 1.875 ~ 2.5A 0.975 ~ 1.3A RIPPLE & NOISE (max.) Note.2 4.5Vp-p CURRENT ADJ. RANGE 3.75 ~ 5A VOLTAGE TOLERANCE Note.3 ±10% LINE REGULATION ±3.0% LOAD REGULATION ±5.0% 500ms / 230VAC 1200ms / 115VAC at full load SETUP TIME VOLTAGE RANGE Note.4 90 ~ 264VAC 127 ~ 370VDC FREQUENCY RANGE 47 ~ 63Hz POWER FACTOR (Typ.) PF≧0.9 at 75 ~ 100% load, 115VAC / 230VAC TOTAL HARMONIC DISTORTION THD< 20% when output loading≥75% at 115VAC/230VAC input INPUT EFFICIENCY (Typ.) 84% AC CURRENT (Typ.) INRUSH CURRENT (max.) 0.8A/115VAC MAX.No. of PSUs on 16A CIRCUIT BREAKER Note.5 PROTECTION SHORT CIRCUIT OVER VOLTAGE WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT SAFETY & EMC OTHERS COLD START 35A(twidth=55μs measured at 50% Ipeak) at 230VAC 32units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC 100 ~ 110% Protection type : Constant current limiting, recovers automatically after fault condition is removed Hiccup mode, recovers automatically after fault condition is removed 15 ~ 18V 28 ~ 35V 57 ~ 63V Protection type : Shut down o/p voltage, re-power on to recover -30 ~ +70℃ (Refer to "Derating Curve") 20 ~ 95% RH non-condensing -40 ~ +80℃, 10 ~ 95% RH ±0.03%/℃ (0 ~ 50℃) VIBRATION 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes SAFETY STANDARDS GB19510.1,GB19510.14,UL8750, TUV BS EN/EN61347-1, BS EN/EN61347-2-13, CSA C22.2 No. 250.0-08(except for 48V), EAC TP TC 004 approved ; design refer to UL60950-1 WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH Compliance to GB17625,GB17743, BS EN/EN55015, BS EN/EN61000-3-2 Class C(≧75% load); BS EN/EN61000-3-3,EAC TP TC 020 EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024,BS EN/EN61547, light industry level, criteria A,EAC TP TC 020 MIL-HDBK-217F (25℃) MTBF 583.3K hrs min. DIMENSION 101.6*50.8*29.6mm (L*W*H) 0.16Kg; 96pcs/16.4Kg/0.89CUFT PACKING NOTE 89% <0.75mA / 240VAC LEAKAGE CURRENT OVER CURRENT 88% 0.4A/230VAC 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Derating may be needed under low input voltage. Please check the static characteristics for more details. 5. Please refer to "DRIVING METHODS OF LED MODULE". 6. Heat sink HS1,HS2 can not be shorted. 7. Heat sink HS1 must have safety isolation distance with system case. 8. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. 9. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers. 10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains. 11. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com) 12. PLP-60-12 is used for any light source that exempt from the ErP-Directive (EU) 2019/2020 requirement, for example this model could be use for signalling products(including, but not limited to road-, railway-, marineorair traffic-signalling , traffic control or airfield lamps) . ※ Product Liability Disclaimer：For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx File Name:PLP-60-SPEC 2021-09-10 PDF
Документация на PLP-60-48

PLP-60.cdr

Дата модификации: 06.09.2021

Размер: 96.4 Кб

3 стр.

PLP-60 60W Single Output LED Power Supply series Features : Universal AC input / Full range Protections: Short circuit / Overload / Over voltage Built-in active PFC function Cooling by free air convection Output current level adjustab 100% full load burn-in test High reliability Suitable for built-in applications of LED lighting 2 years warranty SELV EQUIVALENT ( SPECIFICATION MODEL PLP-60-12 DC VOLTAGE 12V CONSTANT CURRENT OPERATION VOLTAGE Note.5 9 ~ 12V OUTPUT PLP-60-48 24V 48V 18 ~ 24V 36 ~ 48V 1.3A RATED CURRENT 5A 2.5A CURRENT RANGE 0 ~ 5A 0 ~ 2.5A 0 ~ 1.3A RATED POWER 60W 60W 62.5W 4.5Vp-p 4.8Vp-p 1.875 ~ 2.5A 0.975 ~ 1.3A RIPPLE & NOISE (max.) Note.2 4.5Vp-p CURRENT ADJ. RANGE 3.75 ~ 5A VOLTAGE TOLERANCE Note.3 10% LINE REGULATION 3.0% 5.0% LOAD REGULATION 1000ms / 230VAC 2000ms / 115VAC at full load SETUP TIME VOLTAGE RANGE INPUT PLP-60-24 except for 48V ) Note.4 90 ~ 264VAC FREQUENCY RANGE 47 ~ 63Hz POWER FACTOR PF 0.9 at 75 ~ 100% load, 115VAC / 230VAC EFFICIENCY(Typ.) 84% AC CURRENT INRUSH CURRENT(max.) 0.8A/115VAC 42A/230VAC LEAKAGE CURRENT <0.75mA / 240VAC OVER CURRENT Note.5 PROTECTION SHORT CIRCUIT OVER VOLTAGE WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT 88% 89% 0.4A/230VAC 100 ~ 110% Protection type : Constant current limiting, recovers automatically after fault condition is removed Protection type : Hiccup mode, recovers automatically after fault condition is removed 15 ~ 18V 28 ~ 35V 57 ~ 63V Protection type : Shut down o/p voltage, re-power on to recover -30 ~ +70 (Refer to output load derating curve) 20 ~ 95% RH non-condensing -40 ~ +80 , 10 ~ 95% RH 0.03%/ (0 ~ 50 ) VIBRATION 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes SAFETY STANDARDS Design refer to TUV EN61347-1, EN61347-2-13, UL60950-1 WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC SAFETY & ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH EMC EMI CONDUCTION & RADIATION Compliance to EN55015 Compliance to EN61000-3-2 Class C( 75% load); EN61000-3-3 HARMONIC CURRENT Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024,EN61547, light industry level, criteria A EMS IMMUNITY OTHERS MTBF 583.3Khrs min. DIMENSION 101.6*50.8*28mm (L*W*H) 0.16Kg; 96pcs/16.4Kg/0.89CUFT PACKING NOTE MIL-HDBK-217F (25 ) 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor, direct connecting to LED's is not suggested for models with "RIPPLE & NOISE" > 10% and using additional drivers is highly recommended. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Derating may be needed under low input voltage. Please check the derating curve for more details. 5. Constant current operation region is within 75% ~100% rated output voltage. This is the suitable operation region for LED related applications, but please reconfirm special electrical requirements for some specific system design. 6. Heat sink HS1,HS2 can not be shorted. 7. Heat sink HS1 must have safety isolation distance with system case. File Name:PLP-60-SPEC 2009-08-10 PDF
Документация на серию PLP-60

PLP-60.cdr

Дата модификации: 10.08.2009

Размер: 252.6 Кб

2 стр.
