QP-200F

MEAN WELL
AC-DC (DC-DC), 200Вт, Uвх=90-264VAC (127-370VDC), четыре выхода +5В/20А, +15В/6А, +24В/6А, +15В/1А, корр.коэф.мощн., подстр. Uвых1,2=-5/+10%, изоляция 3кVAC (вх-вых), 1,5кVAC (вх-корп), 215х115х50 мм, -10...+60°С (со сниж. мощн.) Производитель: MEAN WELL
развернуть ▼ свернуть ▲
Фотография серии QP-200

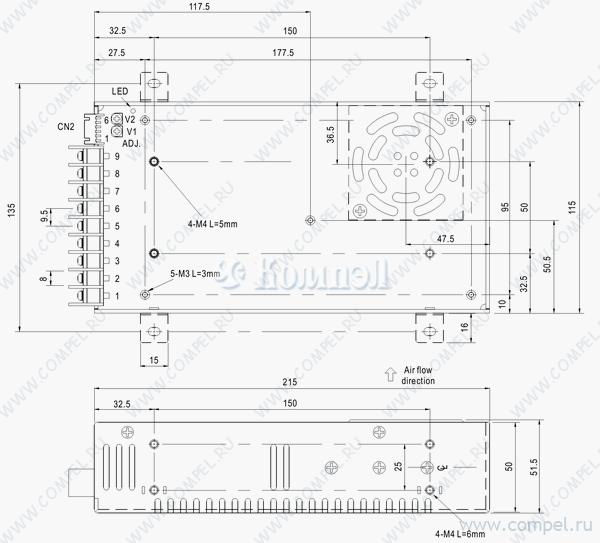

Чертеж серии QP-200



Технические характеристики

показать свернуть
Выходная мощность (ном)
Выход
Напряжение 1 канала
Выходной ток 1 канала
Тип стабилизации
Вход
Конструктивное исполнение
Возможности
Типы защиты КЗ, перегрузка, перенапряжение, перегрев
Количество выходов
Тип управления выходом
Исполнение
Входное напряжение AC
Входное напряжение DC
Коэффициент мощности
Напряжение изоляции вход-выход
Напряжение изоляции вход-земля
Напряжение изоляции выход-земля
Применение
КПД
Шум
Размер 215×115×50 мм
Рабочая температура
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 2

показать свернуть
QP-200 200W Quad Output with PFC Function ■ Features : series User’s Manual Universal AC input / Full range Built-in active PFC function, PF>0.95 Protections: Short circuit / Overload / Over voltage / Over temperature Forced air cooling by built-in DC fan CH1,2 can be adjustable from -5~+10% With power good and fail signal output(Optional) Built-in remote sense function for CH1,2 100% full load burn-in test CH4 can set to positive after consult us before delivery(Optional) Fixed switching frequency at PFC:67KHz PWM:134KHz 3 years warranty Bauar t gepruft Sicherheit egel ma ge od o s be wac g SPECIFICATION www. tuv.com ID 2000000000 CH1 CH2 CH3 CH4 CH1 CH2 CH3 CH4 CH1 CH2 CH3 CH4 12V 24V -12V 5V 15V 24V -15V 5V 3.3V 12V -5V RATED CURRENT 5V 15A 4A 3A 0.7A 15A 3A 3A 0.7A 15A 15A 6A 0.7A CURRENT RANGE 3 ~ 20A 0 ~ 6A 0.4 ~ 5A 0 ~ 1A 3 ~ 20A 0 ~ 5A 0.4 ~ 5A 0 ~ 1A 3 ~ 20A 0 ~ 20A 0.5 ~ 8A 0 ~ 1A 7A 6A 1A 20A 6A 6A 1A 20A 20A 8A 1A 203.4W Note.4 20A 202.5W 200W RIPPLE & NOISE (max.) Note.2 100mVp-p 150mVp-p 150mVp-p 150mVp-p 100mVp-p 150mVp-p 150mVp-p 150mVp-p 100mVp-p 100mVp-p 150mVp-p 150mVp-p VOLTAGE ADJ. RANGE CH1: 4.75 ~ 5.5V VOLTAGE TOLERANCE Note.3 ±3.0% CH2: 11.4 ~ 13.2V CH1: 4.75 ~ 5.5V CH2: 14.25 ~ 16.5V CH1: 4.75 ~ 5.5V CH2: 3.14 ~ 3.63V ±3.0% +10,-6% ±6.0% ±3.0% ±3.0% +10,-6% ±6.0% ±3.0% +8,-10% ±6.0% ±3.0% LINE REGULATION ±1.0% ±1.0% ±2.0% ±1.0% ±1.0% ±1.0% ±2.0% ±1.0% ±1.0% ±1.0% ±2.0% ±1.0% LOAD REGULATION ±2.0% ±2.0% ±6.0% ±2.0% ±2.0% ±2.0% ±6.0% ±2.0% ±2.0% ±2.0% ±6.0% ±2.0% SETUP, RISE TIME 800ms, 50ms at full load HOLD UP TIME (Typ.) VOLTAGE RANGE PROTECTION IEC62368-1 QP-200-3A DC VOLTAGE PEAK CURRENT INPUT QP-200F OUTPUT NUMBER RATED POWER OUTPUT BS EN/EN62368-1 TPTC004 UL62368-1 QP-200D MODEL 24ms at full load Note.5 90 ~ 264VAC 127 ~ 370VDC FREQUENCY RANGE 47 ~ 63Hz POWER FACTOR (Typ.) PF>0.95/230VAC EFFICIENCY (Typ.) 75% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 3.5A/115VAC 2A/230VAC COLD START 30A PF>0.98/115VAC at full load 72% 75% LEAKAGE CURRENT <2mA / 240VAC OVERLOAD 105 ~ 150% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed OVER VOLTAGE CH1:5.75 ~ 6.75V CH2:13.8 ~ 16.2V CH1: 5.75 ~ 6.75V Protection type : Shut down o/p voltage, re-power on to recover CH2:17.25 ~ 20.25V CH1:5.75 ~ 6.75V CH2:3.8 ~ 4.4V Shut down o/p voltage, recovers automatically after temperature goes down OVER TEMPERATURE FUNCTION POWER GOOD / POWER FAIL(OPTIONAL) 10ms/1ms -10 ~ +60℃ (Refer to "Derating Curve") WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS SAFETY & WITHSTAND VOLTAGE EMC (Note 6) OTHERS -20 ~ +85℃ , 10 ~ 95% RH non-condensing ± 0.03%/℃ (0~50℃ ) 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC ISOLATION RESISTANCE EMC EMISSION I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, criteria A, EAC TP TC 020 MTBF 160.6K hrs min. DIMENSION 215*115*50mm (L*W*H) 1.2Kg; 12pcs/15.4Kg/0.9CUFT PACKING NOTE 20 ~ 90% RH non-condensing MIL-HDBK-217F (25℃ ) 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. 33.3% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power. 5. Derating may be needed under low input voltages. Please check the derating curve for more details. 6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com) 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft). ※ Product Liability Disclaimer：For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx File Name:QP-200-SPEC 2021-09-16 PDF
Документация на QP-200F

QP-200-20210915.cdr

Дата модификации: 28.09.2021

Размер: 134.5 Кб

4 стр.

QP-200 200W Quad Output with PFC Function series Features : Universal AC input / Full range Built-in active PFC function, PF>0.95 Protections:Short circuit/Over load/Over voltage/Over temperature Forced air cooling by built-in DC fan CH1,2 can be adjustable from -5~+10% With power good and fail signal output(Optional) Built-in remote sense function for CH1,2 100% full load burn-in test CH4 can set to positive after consult us before delivery Fixed switching frequency at PFC:67KHz PWM:134KHz(Optional) 3 years warranty .. SPECIFICATION QP-200D MODEL CH1 CH2 CH3 CH4 CH1 CH2 CH3 CH4 CH1 CH2 CH3 CH4 DC VOLTAGE 5V 12V 24V -12V 5V 15V 24V -15V 5V 3.3V 12V -5V RATED CURRENT 15A 4A 3A 0.7A 15A 3A 3A 0.7A 15A 15A 6A 0.7A CURRENT RANGE 3 ~ 20A 0 ~ 6A 0.4 ~ 5A 0 ~ 1A 3 ~ 20A 0 ~ 5A 0.4 ~ 5A 0 ~ 1A 3 ~ 20A 0 ~ 20A 0.5 ~ 8A 0 ~ 1A 7A 6A 1A 6A 6A 1A 20A 8A 1A 203.4W RATED POWER Note.4 20A 202.5W 20A 200W 20A RIPPLE & NOISE (max.) Note.2 100mVp-p 150mVp-p 150mVp-p 150mVp-p 100mVp-p 150mVp-p 150mVp-p 150mVp-p 100mVp-p 100mVp-p 150mVp-p 150mVp-p CH2: 14.25 ~ 16.5V CH1: 4.75 ~ 5.5V CH2: 3.14 ~ 3.63V VOLTAGE TOLERANCE Note.3 CH1: 4.75 ~ 5.5V 3.0% 3.0% +10,-6% 6.0% 3.0% 3.0% +10,-6% 6.0% 3.0% 3.0% +8,-10% LINE REGULATION 1.0% 1.0% 2.0% 1.0% 1.0% 1.0% 2.0% 1.0% 1.0% 1.0% 2.0% 1.0% LOAD REGULATION 2.0% 2.0% 6.0% 2.0% 2.0% 2.0% 6.0% 2.0% 2.0% 2.0% 6.0% 2.0% VOLTAGE ADJ. RANGE CH1: 4.75 ~ 5.5V 6.0% 24ms at full load HOLD TIME (Typ.) VOLTAGE RANGE CH2: 11.4 ~ 13.2V 800ms, 50ms at full load SETUP, RISE TIME INPUT QP-200-3A OUTPUT NUMBER PEAK CURRENT OUTPUT QP-200F Note.6 90 ~ 264VAC 127 ~ 370VDC FREQUENCY RANGE 47 ~ 63Hz POWER FACTOR (Typ.) PF>0.95/230VAC EFFICIENCY (Typ.) 75% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 3.5A/115VAC 2A/230VAC COLD START 30A PF>0.98/115VAC at full load 75% 72% LEAKAGE CURRENT <2mA / 240VAC OVER LOAD 105 ~ 150% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed PROTECTION OVER VOLTAGE OVER TEMPERATURE CH1:5.75 ~ 6.75V CH2:13.8 ~ 16.2V CH1: 5.75 ~ 6.75V Protection type : Shut down o/p voltage, re-power on to recover 95 5 CH2:17.25 ~ 20.25V CH1:5.75 ~ 6.75V CH2:3.8 ~ 4.4V (TSW1) Detect on heatsink of Q1,Q2 power transistor Protection type : Shut down o/p voltage, recovers automatically after temperature goes down FUNCTION POWER GOOD / POWER FAIL(OPTIONAL) 10ms/1ms -10 ~ +60 (Refer to output load derating curve) WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS WITHSTAND VOLTAGE 20 ~ 90% RH non-condensing -20 ~ +85 , 10 ~ 95% RH 0.03%/ (0~50 ) 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes UL60950-1, TUV EN60950-1 Approved I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC SAFETY & ISOLATION RESISTANCE Compliance to EN55022 (CISPR22) Class B EMI CONDUCTION & RADIATION EMC (Note 5) OTHERS HARMONIC CURRENT Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, Light industry level, criteria A MTBF 160.6K hrs min. DIMENSION 230*115*50mm (L*W*H) 1.2Kg; 12pcs/15.4Kg/0.92CUFT PACKING NOTE Compliance to EN61000-3-2,-3 EMS IMMUNITY MIL-HDBK-217F (25 ) 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. 33.3% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power. 5. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 6. Derating may be needed under low input voltages. Please check the derating curve for more details. File Name:QP-200-SPEC 2005-09-13 PDF
Документация на серию QP-200

QP-200.cdr

Дата модификации: 25.10.2005

Размер: 736 Кб

4 стр.
