SCP-75-12

MEAN WELL
AC/DC преобразователь корпусированный
развернуть ▼ свернуть ▲
Фотография серии SCP-75

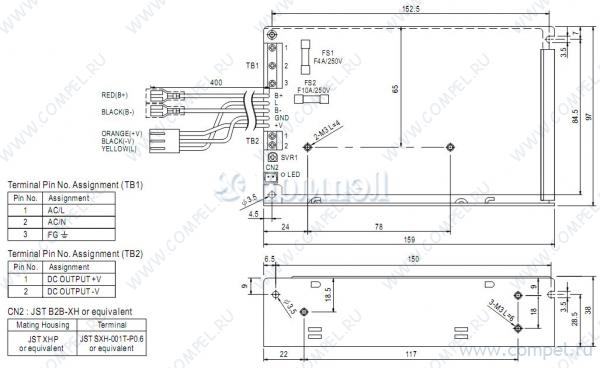

Чертеж серии SCP-75



Технические характеристики

показать свернуть
Выходная мощность (ном)
Выход
Напряжение 1 канала
Выходной ток 1 канала
Тип стабилизации
Вход
Конструктивное исполнение
Возможности
Типы защиты КЗ, переполюсовка, перенапряжение, перегрузка
Количество выходов
Тип управления выходом
Исполнение
Входное напряжение AC
Входное напряжение DC
Коэффициент мощности
Напряжение изоляции вход-выход
Напряжение изоляции вход-земля
Напряжение изоляции выход-земля
Применение
КПД
Шум
Размер 97×159×38 мм
Рабочая температура
Примечание Источник питания с функцией UPS
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 1

показать свернуть
Тип Наименование Корпус Упаковка i P вых Выход U1 I1 Стабилизация Вход Конструктив Возможности Защита Выходов Управление IP U вх AC U вх DC Коэф. мощн. U изол вх-вых U изол вх-земля U изол вых-земля Применение КПД Шум T раб Примечание Карточка
товара
A+ SCP-75-12RS (MW)

—

 — — — — — — — — — — — — — —

Файлы 2

показать свернуть
SCP-75 75W Single Output Switching Power Supply series ■ ‧ ‧  ‧ ‧ ‧ ‧ ‧ ‧ ‧ ‧ SPECIFICATION UL62368-1 MODEL SCP-75-12 SCP-75-24 DC VOLTAGE 13.8V 27.6V RATED CURRENT 5.4A 2.7A CURRENT RANGE 0 ~ 5.4A PEAK 5S OUTPUT INPUT 74.5W 200mVp-p +15,-5% ±1.0% +15,-5% VOLTAGE TOLERANCE Note.3 ±2.0% Note.4 ±1.0% LOAD REGULATION Note.5 ±2.0% ±1.0% ±1.0% SETUP, RISE TIME 500ms, 30ms/230VAC HOLD UP TIME (Typ.) 50ms/230VAC VOLTAGE RANGE 85 ~ 264VAC FREQUENCY RANGE 47 ~ 63Hz EFFICIENCY (Typ.) 80% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 1.5A/115VAC 0.9A/230VAC COLD START 45A LEAKAGE CURRENT <2mA / 240VAC By NTC (not provide with the power supply) OVERLOAD PROTECTION OVER VOLTAGE WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS SAFETY & WITHSTAND VOLTAGE EMC ISOLATION RESISTANCE (Note 6) EMC EMISSION NOTE 74.5W VOLTAGE ADJ. RANGE TEMP. COMPENSATION FUNCTION OUTPUT VOLTAGE SENSOR OTHERS 3.2A RIPPLE & NOISE (max.) Note.2 120mVp-p LINE REGULATION IEC62368-1 0 ~ 2.7A Note.6 6.5A RATED POWER TPTC004 1200ms, 30ms/115VAC at full load 16ms/115VAC at full load 120 ~ 370VDC 84% L=output voltage +0.2 ~ 0.7V(AC OK); L=0V(AC Fail) 3.2 ~ 4.3A rated output power 6.5 ~ 8.7A rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed 33.1 ~ 38.6V 16.6 ~ 19.3V Protection type : Shut down o/p voltage, re-power on to recover -20 ~ +60℃ (Refer to output load derating curve) 20 ~ 90% RH non-condensing -40 ~ +85℃, 10 ~ 95% RH ±0.05% /℃ (0 ~ 45℃) 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes UL62368-1, CB(IEC62368-1), EAC TP TC 004 approved, Design refer to BS EN/EN62368-1 I/P-O/P:3KVAC I/P-FG:2.0KVAC O/P-FG:0.5KVAC I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,3, EAC TP TC 020 EMC IMMUNITY Compliance to BS EN/EN61000-4-2, 3, 4, 5, 6, 8,11, BS EN/ENV50204, BS EN/EN55024, BS EN/EN61000-6-1, light industry level, criteria A, EAC TP TC 020 MTBF 461.2K hrs min. DIMENSION 159*97*38mm (L*W*H) PACKING 0.5Kg; 30pcs/16Kg/1CUFT MIL-HDBK-217F (25℃) ℃        ℃℃ (As available on http://www.meanwell.com) ※：https://www.meanwell.com/serviceDisclaimer.aspx File Name:SCP-75-SPEC 2021-07-05 PDF
Документация на SCP-75-24

未命名 -1

Дата модификации: 17.08.2021

Размер: 573.9 Кб

3 стр.

SCP-75 75W Single Output Switching Power Supply series Features : Universal AC input/Full range Protections: Short circuit / Overload / Over voltage / Battery polarity protections (by fuse) Cooling by free air convection LED indicator for power on No load power consumption <0.75W 100% full load burn-in test 2 years warranty SPECIFICATION MODEL SCP-75-12 SCP-75-24 DC VOLTAGE 13.8V 27.6V RATED CURRENT 5.4A 2.7A CURRENT RANGE 0 ~ 5.4A 0 ~ 2.7A PEAK 5S Note.6 6.5A OUTPUT INPUT 200mVp-p VOLTAGE ADJ. RANGE +15,-5% 1.0% +15,-5% VOLTAGE TOLERANCE Note.3 2.0% LINE REGULATION Note.4 1.0% LOAD REGULATION Note.5 2.0% HOLD UP TIME (Typ.) 50ms/230VAC VOLTAGE RANGE 85 ~ 264VAC FREQUENCY RANGE 47 ~ 63Hz EFFICIENCY (Typ.) 81% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 1.5A/115VAC 0.9A/230VAC COLD START 45A LEAKAGE CURRENT <2mA / 240VAC By NTC (not provide with the power supply) OVER VOLTAGE WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS WITHSTAND VOLTAGE OTHERS 1200ms, 30ms/115VAC at full load 16ms/115VAC at full load 120 ~ 370VDC 85% L=output voltage +0.7 -0 V 3.2 ~ 4.3A rated output power 6.5 ~ 8.7A rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed 33.1 ~ 38.6V 16.6 ~ 19.3V Protection type : Shut down o/p voltage, re-power on to recover -20 ~ +60 (Refer to output load derating curve) 20 ~ 90% RH non-condensing -40 ~ +85 , 10 ~ 95% RH 0.03%/ (0 ~ 45 ) 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes UL60950-1, CB(IEC60950-1),CCC GB4943 approved I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 EMI CONDUCTION & RADIATION Compliance to EN55022 (CISPR22) Class B HARMONIC CURRENT Compliance to EN61000-3-2,-3 / 70% RH EMS IMMUNITY Compliance to EN61000-4-2, 3, 4, 5, 6, 8,11, ENV50204, EN55024, EN61000-6-1, light industry level, criteria A MTBF 461.2K hrs min. MIL-HDBK-217F (25 159*97*38mm (L*W*H) 0.5Kg; 30pcs/16Kg/1CUFT DIMENSION PACKING NOTE 1.0% 500ms, 30ms/230VAC PROTECTION (Note 6) 1.0% SETUP, RISE TIME OVERLOAD EMC 74.5W RIPPLE & NOISE (max.) Note.2 120mVp-p TEMP. COMPENSATION FUNCTION OUTPUT VOLTAGE SENSOR SAFETY & 3.2A 74.5W RATED POWER ) 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Line regulation is measured from low line to high line at rated load. 5. Load regulation is measured from 0% to 100% rated load. 6. 33% Duty cycle maximum within every 15 seconds. Average output power should not exceed the rated power. 7. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. File Name:SCP-75-SPEC 2010-02-09 PDF
Документация на серию SCP-75

SCP-75.cdr

Дата модификации: 07.05.2010

Размер: 317.3 Кб

3 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
