SP-750-5

MEAN WELL
AC/DC преобразователь корпусированный
развернуть ▼ свернуть ▲
Фотография серии SP-750

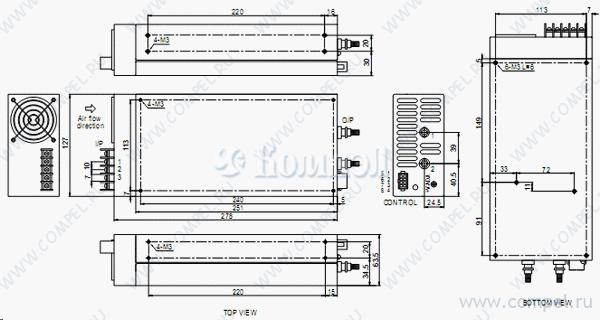

Чертеж серии SP-750



Технические характеристики

показать свернуть
Выходная мощность (ном)
Выход
Напряжение 1 канала
Выходной ток 1 канала
Тип стабилизации
Вход
Конструктивное исполнение
  Возможности: ККМ, дистанционное Вкл/Выкл, компенсация на проводах, ограничение тока, сигнал DC OK, сигнал AC Fail,
Типы защиты КЗ, перегрузка, перенапряжение, перегрев
Количество выходов
Тип управления выходом
Исполнение
Входное напряжение AC
Входное напряжение DC
Коэффициент мощности
Напряжение изоляции вход-выход
Напряжение изоляции вход-земля
Напряжение изоляции выход-земля
Применение
КПД
Шум
Размер 278×127×63.5 мм
Рабочая температура
Примечание AC-DC Power Factor Correction Module, 1 Output, 600W, Hybrid
