EEEHC1H100P

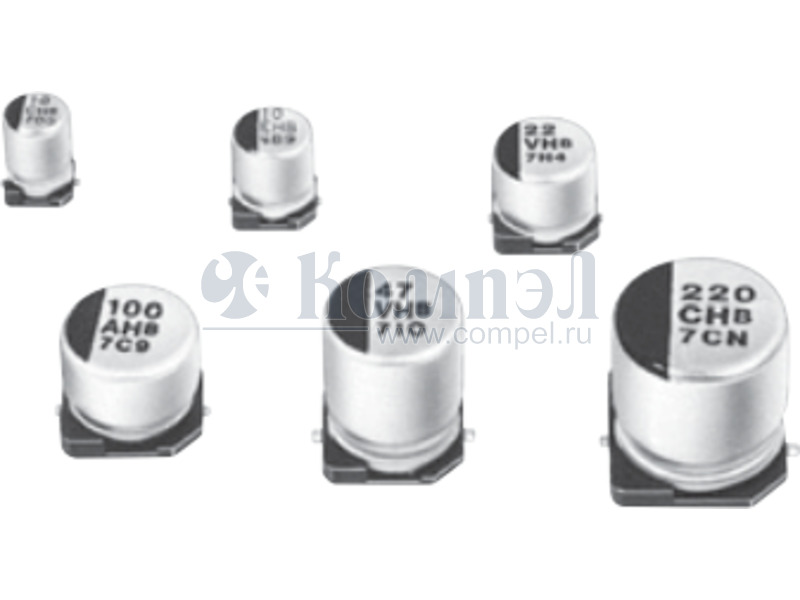

Конденсатор алюминиевый 50 В x 10 мкФ ±20%, SMD, -40...105 °C, 3000 ч
развернуть ▼ свернуть ▲

Технические характеристики

показать свернуть
Ёмкость номинальная
Допуск по ёмкости
Напряжение номинальное
Температура рабочая
Срок службы
Диаметр корпуса
Высота корпуса
Способ монтажа
Ток пульсаций низких частот
Диаметр x Высота 6.3×6.3×6.6 мм
  Примечание: Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 10uF, Surface Mount, 2626
