MS8552

Ruimeng Technology
MS8551/8552/8554 Single Power Supply, Rail-to-Rail Input and Output, High-Precision Operational Amplifier PRODUCT DESCRIPTION The MS8551/8552/8554 is a rail-to-rail input and output, highprecision operational amplifier. It has ultra-low input offset voltage and bias current. The single power supply ranges from 1.8V to 5V. Rail-to-rail input and output enables the MS8551/8552/8554 to easily ampl...
развернуть ▼ свернуть ▲

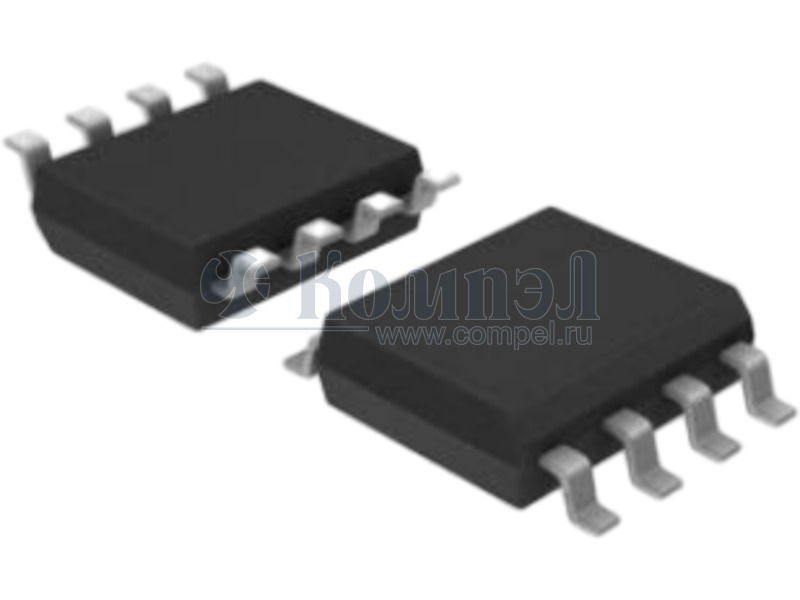

Внешний вид MS8552

Технические характеристики

показать свернуть
Корпус SOP-8
Тип ОУ Высокопрецизионный операционный усилитель
Кол-во каналов ОУ
Напряжение питания
Ток собственного потребления
Rail-to-Rail выводы
Частота единичного усиления
Максимальная скорость нарастания выходного сигнала
Уровень шума
Диапазон рабочих температур
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 1

показать свернуть
MS8551/8552/8554 Single Power Supply, Rail-to-Rail Input and Output, High-Precision Operational Amplifier PRODUCT DESCRIPTION The MS8551/8552/8554 is a rail-to-rail input and output, highprecision operational amplifier. It has ultra-low input offset voltage and bias current. The single power supply ranges from 1.8V to 5V. Rail-to-rail input and output enables the MS8551/8552/8554 to easily amplify the sensor signal of high-level and low-level. All features make it SOT23-5 ideal for medical device, strain gauge amplifier and sensors, such as temperature, position and pressure sensors. And it can also be used in other applications which need high-precision, long-term stability and operate in 1.8V to 5V power supply. The MS8551/8552/8554 can be applicable to industrial temperature range from -40°C to +125°C. SOP8 FEATURES ⚫ Low Offset Voltage: 1μV (TYP) ⚫ Rail-to-Rail Input and Output ⚫ Single Power Supply: 1.8V to 5.5V ⚫ Voltage Gain: 145dB (TYP) (5V Operating Voltage) ⚫ Power Supply Rejection Ratio: 120dB (TYP) ⚫ Common-mode Rejection Ratio: 120dB (TYP) ⚫ Ultra-low Input Bias Current: 10pA ⚫ Low Operating Current: 800μA Each Channel (TYP) ⚫ Overload Recovery Time: 50μs (5V Operating Voltage) ⚫ No Need for Additional External Capacitor MSOP8 PRODUCT SPECIFICATION Part Number Package Marking MS8551S SOT23-5 8551S MS8551 SOP8 MS8551 MS8552 SOP8 MS8552 MS8552M MSOP8 MS8552M MS8554 SOP14 MS8554 PRODUCT GRADE Grade Offset Voltage (μV) Condition A 0-2 5V Power Supply B 2-6 5V Power Supply C 6-24 5V Power Supply Hangzhou Ruimeng Technology Co.,Ltd http://www.relmon.com VERSION: V2.4 SOP14 APPLICATIONS ⚫ Temperature Measurement ⚫ Pressure Sensor ⚫ High-precision Current Sense ⚫ Electronic Weigh ⚫ Strain Gauge Amplifier ⚫ Medical Device ⚫ Thermocouple Amplifier ⚫ Handheld Test Device 2022.12.29 - PAGE 1 - PDF
Документация на MS8551S

TONE RINGER JO肙 JARDIM x8?! PORRA! DIA 8 VOTA N肙!

Дата модификации: 04.01.2024

Размер: 1.12 Мб

23 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
