MS8629

Ruimeng Technology
MS8628/8629/8630 Zero Drift, Single Supply, Rail-to-Rail Input /Output, High-Precision Operational Amplifier PRODUCT DESCRIPTION The MS8628/MS8629/MS8630 is rail-to-rail input/output, wide bandwidth, low noise, auto-zero amplifier, which is featured by ultralow offset, drift and bias current. And it adopts 1.8V to 5V single power supply ( ±0.9 V to ±2.5 V dual power supply). The MS8628/MS8629/M...
развернуть ▼ свернуть ▲

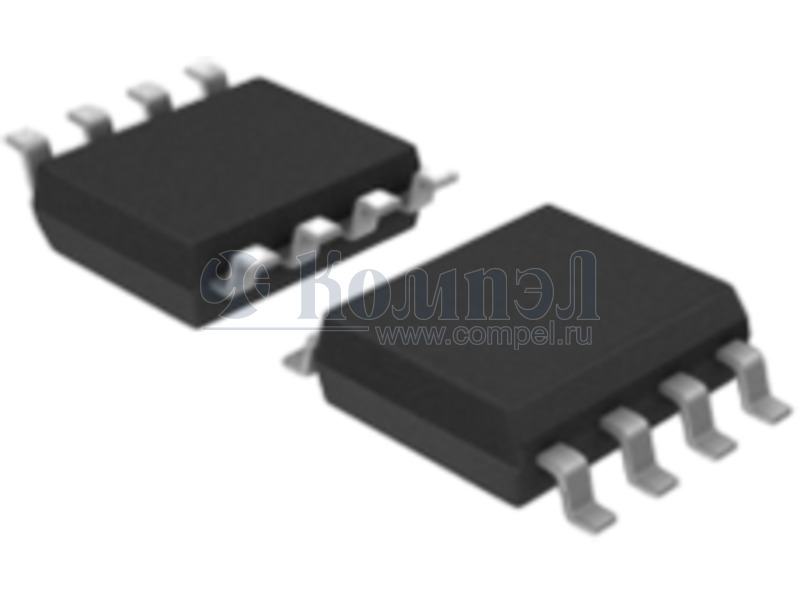

Внешний вид MS8629

Технические характеристики

показать свернуть
Корпус SOP-8
Тип ОУ Высокопрецизионный операционный усилитель
Техническая особенность ОУ
Кол-во каналов ОУ
Напряжение питания
Ток собственного потребления
Rail-to-Rail выводы
Программируемый коэффициент усиления
Частота единичного усиления
Максимальная скорость нарастания выходного сигнала
Уровень шума
Диапазон рабочих температур
Примечание
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 2

показать свернуть
MS8628/8629/8630 Zero Drift, Single Supply, Rail-to-Rail Input /Output, High-Precision Operational Amplifier PRODUCT DESCRIPTION The MS8628/MS8629/MS8630 is rail-to-rail input/output, wide bandwidth, low noise, auto-zero amplifier, which is featured by ultralow offset, drift and bias current. And it adopts 1.8V to 5V single power supply ( ±0.9 V to ±2.5 V dual power supply). The MS8628/MS8629/MS8630 has features advantages that only previous expensive auto-zero or chopping amplifier has. In addition, it greatly reduces digital switch noise, which exist in most chopping stabilization amplifier. The ultra-low offset voltage, offset voltage drift and noise features, making the device drift approach zero throughout the operating temperature, are beneficial to many applications, such as position and pressure sensor, medical device and strain gauge. Many systems could apply the feature of rail-to-rail input/output to reduce input bias complexity and maximize the signal to noise ratio. The operating temperature range of the MS8628/MS8629/MS8630 is -40°C to 125°C. The MS8628 has lead SOP8 package. The MS8629 has lead SOP8, MSOP8 and DFN8 packages. The MS8630 has SOP14 and TSSOP14 packages. SOP8 MSOP8 DFN8 FEATURES             Lowest Noise Auto-zero Amplifier Low Offset Voltage: 2μV (TYP) Input Offset Drift0.05μV/°C Rail-To-Rail Input/Output Single Power Supply : 1.8V to 5.5V Voltage Gain: 126dB(TYP) (5V Operating Voltage) Power Supply Rejection Ratio: 123dB (TYP) Common-mode Rejection Ratio: 136dB (TYP) Ultra-low Input Bias Current: 11pA Low Operating Current: 0.8mA Each Channel (TYP) Overload Recovery Time: 50us (5V Operating Voltage) No Need for External Components SOP14 TSSOP14 PRODUCT SPECIFICATION APPLICATIONS Part Number Package Marking  MS8628 SOP8 MS8628 Automobile Sensor  Pressure and Position Sensor MS8629 SOP8 MS8629  Strain Gauge Amplifier MS8629M MSOP8 MS8629M  Medical Device MS8629D DFN8 8629D  Thermocouple Amplifier MS8630 SOP14 MS8630  Precision Current Detection MS8630T TSSOP14 MS8630T  Photodiode Amplifier Hangzhou Ruimeng Technology Co.,Ltd http://www.relmon.com VERSION: V2.5 2022.08.16 - PAGE 1 - PDF
Документация на MS8628

TONE RINGER JO肙 JARDIM x8?! PORRA! DIA 8 VOTA N肙!

Дата модификации: 16.08.2022

Размер: 1.91 Мб

20 стр.

MS8629D Zero drift, single power, rail-to-rail input/output high precision amplifier PRODUCT DESCRIPTION MS8629D is wide band, low noise, self­stable zero ,rail­to­rail input/output amplifier. It has ultra­low offset and low bias current characteristics. It uses 1.8V to 5V single Power supply (+0.9 V to +2.5 V dual power supply). MS8629D has the same characteristics as a previously expensive self­stabilizing zero or chopper amplifier . In addition, the digital switches noises present in most chopper stabilized amplifiers are greatly reduced. MS8629D can be used for position and pressure sensors, medical care Prepare and strain gauge amplifier applications are extremely advantageous. The rated temperature range of MS8629D is ­40℃ to 125℃.The MS8629D package uses DFN8. FEATURES  Low Offset Voltage: 2uV (TYP)  Rail­to­Rail input­output swing  Single power 1.8V to 5.5V range  Voltage gain: 126dB (TYP) (operating voltage 5V)  Power supply rejection ratio: 123 dB (TYP)  Common mode rejection ratio: 136dB (TYP)  Very low input bias current: 11pA  Low operating current: 0.8mA (TYP) per channel  Overload recovery time: 50uS (@operating voltage 5V) DFN8 APPLICATIONS  Automobile sensor  Pressure and position sensors  Strain Gauge Amplifier  Medical Instruments  Thermocouple Amplifier  Precise Current Detection  Photodiode Amplifier PRODUCT SPECIFICATION Part Number MS8929D Package DFN8 Hangzhou Ruimeng Technology Co.,LTD http://www.relmon.com Marking 8629D VERSION：1.0 2021.03.16 ­ PAGE 1 ­ PDF
Документация на MS8629

TONE RINGER JO肙 JARDIM x8?! PORRA! DIA 8 VOTA N肙!

Дата модификации: 23.03.2022

Размер: 252 Кб

9 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
