RS8452XK

Runic
RS845X 36V, 8MHz Rail-to-Rail Output CMOS Operational Amplifier FEATURES • HIGH GAIN BANDWIDTH:8MHz • INPUT OFFSET VOLTAGE: ±0.8mV (Typical) • QUIESCENT CURRENT:2.75mA/Amp • Rail to Rail Output • Supply Range: +5V to +36V • SPECIFIED UP TO +125°C • Micro SIZE PACKAGES: SOT23-5 APPLICATIONS DESCRIPTION The RS845X families of products offer high voltage (36V) operation and rail-t...
развернуть ▼ свернуть ▲

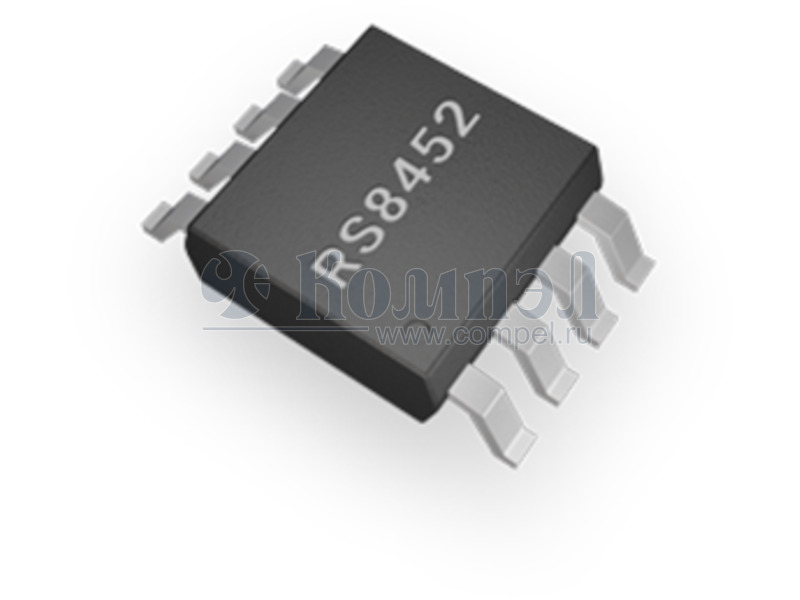

Внешний вид серии RS8452

Технические характеристики

показать свернуть
Корпус SO-8 SOIC8
Тип ОУ
Кол-во каналов ОУ
Напряжение питания
Ток собственного потребления
Rail-to-Rail выводы
Частота единичного усиления
Максимальная скорость нарастания выходного сигнала
Уровень шума
Диапазон рабочих температур
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 1

показать свернуть
Тип Наименование Корпус Упаковка i Тип ОУ Особенность Каналы U пит Iпотр R‑to‑R Прог. Кусил. GBW Скорость Шум T раб Примечание Карточка
товара
P- RS8452XK-Q1 (RUNIC)

— в линейках 20 шт

 — — — — — — — — — — — —

Файлы 2

показать свернуть
RS845X 36V, 8MHz Rail-to-Rail Output CMOS Operational Amplifier FEATURES • HIGH GAIN BANDWIDTH:8MHz • INPUT OFFSET VOLTAGE: ±0.8mV (Typical) • QUIESCENT CURRENT:2.75mA/Amp • Rail to Rail Output • Supply Range: +5V to +36V • SPECIFIED UP TO +125°C • Micro SIZE PACKAGES: SOT23-5 APPLICATIONS DESCRIPTION The RS845X families of products offer high voltage (36V) operation and rail-to-rail output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (8MHz) and slew rate of 5V/us. The op-amps are unity gain stable and feature an ultra-low input bias current. The input can operate normally within the negative power rail to 2V below of the positive power rail. The RS845X families of operational amplifiers are specified at the full temperature range of −40°C to +125°C under single power supplies of 5V to 36V or dual power supplies of ±2.5V to ±18V. • SENSORS • PHOTODIODE AMPLIFICATION • ACTIVE FILTERS PART NUMBER • TEST EQUIPMENT RS8451 • DRIVING A/D CONVERTERS REV A.1 Device Information (1) PACKAGE BODY SIZE(NOM) SOT23-5 2.90mm x 1.60mm SOIC-8 4.90mm x 3.90mm RS8452 MSOP-8 3.00mm x 3.00mm SOIC-14 8.65mm x 3.90mm RS8454 TSSOP-14 5.00mm x 4.40mm (1) For all available packages, see the orderable addendum at the end of the data sheet. 1 / 14 www.run-ic.com PDF
Документация на семейство RS8451, RS8452, RS8454

Дата модификации: 10.01.2022

Размер: 787.9 Кб

15 стр.

RS845X 36V, 8MHz Rail-to-Rail Output CMOS Operational Amplifier FEATURES • HIGH GAIN BANDWIDTH:8MHz • INPUT OFFSET VOLTAGE: ±0.8mV (Typical) • QUIESCENT CURRENT:2.75mA/Amp • Rail to Rail Output • Supply Range: +5V to +36V • SPECIFIED UP TO +125°C • Micro SIZE PACKAGES: SOT23-5 APPLICATIONS • SENSORS • PHOTODIODE AMPLIFICATION • ACTIVE FILTERS • TEST EQUIPMENT • DRIVING A/D CONVERTERS DESCRIPTION The RS845X families of products offer high voltage (36V) operation and rail-to-rail output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (8MHz) and slew rate of 5V/us. The op-amps are unity gain stable and feature an ultra-low input bias current. The input can operate normally within the negative power rail to 2V below of the positive power rail. The RS845X families of operational amplifiers are specified at the full temperature range of −40°C to +125°C under single power supplies of 5V to 36V or dual power supplies of ±2.5V to ±18V. Device Information (1) PART NUMBER RS8451 RS8452 RS8454 PACKAGE BODY SIZE(NOM) SOT23-5 2.90mm x 1.60mm SOIC-8(SOP8) 4.90mm x 3.90mm MSOP-8 3.00mm x 3.00mm SOIC-14(SOP14) 8.65mm x 3.90mm TSSOP-14 5.00mm x 4.40mm (1) For all available packages, see the orderable addendum at the end of the data sheet. REV A.2 1 / 14 www.run-ic.com PDF
Документация на RS8451XF

Дата модификации: 01.07.2021

Размер: 826.1 Кб

16 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
