SD2421A

SDIC
SD2421 Loop Powered 4-20mA DAC Features 4-20mA current output  16 bits resolution and monotonicity  ±0.01% integral nonlinearity  3V/3.3V/5V selectable voltage source  2.5V and 1.25V precision reference  520uA maximum quiescent current  HART® compatible  Flexible serial interface  Flexible alarm current output  Short circuit protection and over current protection  16 pins SOIC package...
развернуть ▼ свернуть ▲

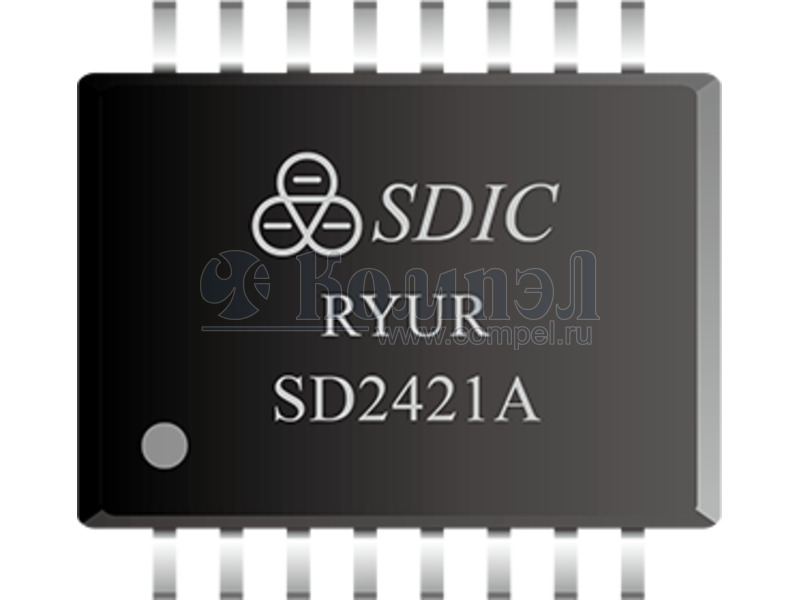

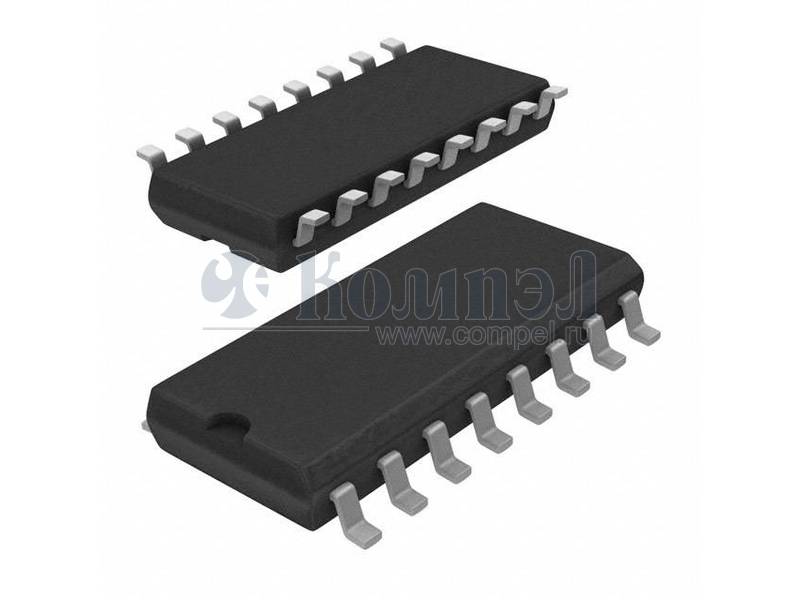

Внешний вид SD2421A

Технические характеристики

показать свернуть
Корпус SOP-16
Кол-во каналов
Интерфейс обмена данными
Тип выхода
Рабочая температура
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 1

показать свернуть
SD2421 Loop Powered 4-20mA DAC Features 4-20mA current output  16 bits resolution and monotonicity  ±0.01% integral nonlinearity  3V/3.3V/5V selectable voltage source  2.5V and 1.25V precision reference  520uA maximum quiescent current  HART® compatible  Flexible serial interface  Flexible alarm current output  Short circuit protection and over current protection  16 pins SOIC packages  -40℃ to +85℃ operating range  General Description The SD2421 is a complete 4-20mA loop powered DAC which converts digital signal into current. Its large scale integration, high precision, and low cost design is specifically well suited for smart 4-20mA transmitter manufacturer in the industrial control area. The DAC uses Σ-Δ architecture. It guarantees 16 bits resolution and monotonicity, and ±0.01% integral nonlinearity. The IC provides 4mA zero scale output current (±0.02% FS error), and 20mA full scale output current (±0.1% FS error). Full scale setup time to ±0.1% is less than 8ms. SDIC Microelectronics http://www.SDICmicro.com Rev. 0.2 Sep 2019 The SD2421 has a built-in voltage regulator that can be set to 3V, 3.3V, or 5V through different pin connections. The IC also has built-in 2.5V and 1.25V precision voltage references. Both regulator and precision references are used by the IC itself, and can also be used by other devices in the transmitter system. Thus, there is no need for standalone regulator or precision reference. However, a pass transistor is required in order to extend the loop operating voltage range. Together with this transistor, the SD2421 system can work from VCC+2V to the transistor’s breakdown voltage. The SD2421 can work together with HART or other similar FSK protocols without affecting the IC’s own performance. It communicates to microcontroller through three serial ports. The simple scheme can operate up to 3Mbps. The SD2421 has programmable alarm current function that can send out of range current to indicate malfunction. There is built-in short circuit protect between COM and LOOPRTN, and over current protection between BOOST and LOOPRTN. Ordering Information Package Part Number SOP16（wide body） SD2421A PDF
Документация на SD2421A

Features Keywords:

Дата модификации: 21.09.2022

Размер: 506.8 Кб

16 стр.

    Публикации 1

    показать свернуть
    25 мая
    статья

    Решения SDIC для токовой петли 4…20 мА

    Константин Кузьминов (г. Заполярный) Развитие стандарта HART позволяет модернизировать существующие системы и создавать новые – надежные, простые и имеющие расширяемый функционал. Компания SDIC предлагает HART–модемы SD2015, SD2017, SD2057,... ...читать

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
