SQ52201FBC

Silergy
ИМС токового монитора, выход I2C, в корпусе SOP10, производства Silergy (SILERGY)
развернуть ▼ свернуть ▲

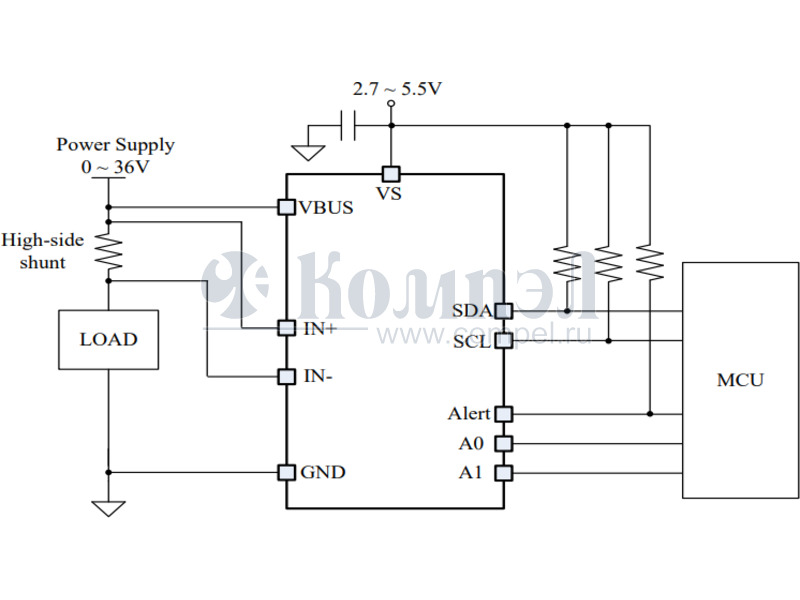

Внешний вид SQ52201FBC
Внешний вид SQ52201FBC



Технические характеристики

показать свернуть
Корпус SOP10
Диапазон допустимых напряжений смещения относительно общего провода
Тип выходного сигнала
Максимальное смещение (+/-)
Максимальный дрейф смещения
Минимальный коэффициент ослабления синфазного сигнала
Номинальная ширина полосы сигнала
Типовой ток собственного потребления
Диапазон питающих напряжений
Рабочая температура
Примечание 36V high accuracy current shunt, bus voltage and power monitor with I2C
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 1

показать свернуть
Application Note: SQ52201 36V High-accuracy Current/Power Monitor With Programmable Alert Function General Description Features The SQ52201 is a high accuracy current shunt, bus voltage and power monitor with an I2C or SMBUScompatible interface.      The shunt voltage drop and the bus supply voltage are both sampled accurately in the device. The sampled data are processed inside the device to generate the power data with programmable calibration, averaging technique and internal multiplier. Programmable alert function provides abundant alert sources settings and makes the application system more reliable.       The SQ52201 senses current on common mode bus voltages that can vary from 0V to 36V, independent of the supply voltage. The device operates from a single 2.7V to 5.5V supply. The SQ52201 is specified over the operating temperature range between –40°C and +125°C and features up to 16 programmable addresses on the I2C-compatible interface. Applications        The SQ52201 is available in the MSOP-10 package. Ordering Information SQ52201 □(□□)□ Temperature Code Package Code Optional Spec Code Ordering Number SQ52201FBC Package type MSOP10 Senses Bus Voltages from 0 V to 36 V High-Side or Low-Side Sensing Bi-directional Current Sensing Reports Current, Voltage, and Power High Accuracy:  0.02% Gain Error (Typ) for Shunt Voltage 0.02% Gain Error (Typ) for Bus Voltage  2.5μV Offset (Typ) for Shunt Voltage  1.25mV Offset (Typ) for Bus Voltage Configurable Averaging Options Configurable Conversion Time Abundant Alert Sources Setting 16 Programmable Addresses High Speed I2C Mode Compatible Operates from 2.7V to 5.5V Power Supply Servers Telecom Equipment Computing Power Management Battery Chargers Power Supplies Test Equipment Note -- Typical Application 2.7 ~ 5.5V Power Supply 0 ~ 36V VBUS VS High-side shunt SDA LOAD IN+ SCL IN- MCU Alert A0 GND A1 Figure 1. Typical Application AN_SQ52201 Rev. 0.9 © 2021 Silergy Corp. Silergy Corp. 1 All Rights Reserved. PDF
Документация на SQ52201FBC

IOS Check List

Дата модификации: 28.12.2023

Размер: 2.25 Мб

19 стр.
