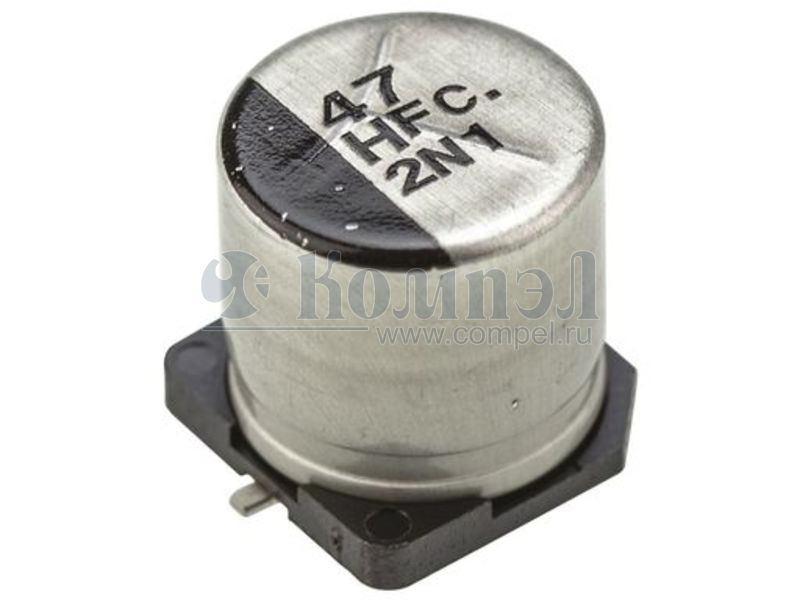

Серия алюминиевых конденсаторов FC_SMD

Общие характеристики

Раздел Алюминиевые конденсаторы
Допуск по ёмкости
Температура рабочая
Срок службы
Способ монтажа

Документация на серию FC_SMD

Aluminum Electrolytic Capacitors Low impedance Surface Mount Type FC series FC HA Features ● ● ● ● ● Endurance : 105 ℃ 1000 h Low impedance (1/2 for HA series) Vibration-proof product (30G guaranteed) is available upon request (ø8 ≦) AEC-Q200 compliant RoHS compliant Specifications Category temp. range Rated voltage range Capacitance range Capacitance tolerance Leakage current –40 ℃ to +105 ℃ 6.3 V to 50 V 1 μF to 1500 μF ±20 % (120 Hz / +20℃) I ≦ 0.01 CV or 3 (μA) After 2 minutes (Whichever is greater) Dissipation factor (tan δ) Please see the attached characteristics list Rated voltage(V) 6.3 10 16 25 35 50 Characteristics Z (-25 ℃) / Z (+20 ℃) 2 2 2 2 2 2 (Impedance ratio at 120 Hz) at low temperature Z (-40 ℃) / Z (+20 ℃) 3 3 3 3 3 3 After applying rated working voltage for 1000 hours at +105 ℃ ± 2 ℃ and then being stabilized at +20 ℃, capacitors shall meet the following limits. Capacitance change Within ±20 % of the initial value Endurance Dissipation factor (tan δ) ≦ 200 % of the initial limit DC leakege current Within the initial limit After storage for 1000 hours at +105 ℃ ± 2 ℃ with no voltage applied and then being Shelf life stabilized at +20 ℃, capacitors shall meet the limits specified in endurance. (With voltage treatment) After reflow soldering and then being stabilized at +20 ℃, capacitors shall meet the following limits. Resistance to Capacitance change Within ±10 % of the initial value soldering heat Dissipation factor (tan δ) Within the initial limit DC leakege current Within the initial limit Frequency correction factor for ripple current Frequency (Hz) Correction factor 50, 60 0.70 120 0.75 0.3 max. (P) K B±0.2 Capacitance (μF) Rated voltage code Lot number R.voltage code Unit:V E V H 25 35 50 W L Mark for Lead-Free Pressure Relief(ø10 and larger) Size code øD B 4.0 L 5.4 +0.1 -0.2 +0.1 -0.2 +0.1 -0.2 C 5.0 5.4 D 6.3 5.4 E 8.0 6.2±0.3 8.0 10.2±0.3 F G 10.0 10.2±0.3 (I) Series identification products (Black dot) 6.3 10 16 A±0.2 H øD±0.5 Negative polarity marking (–) j A C 100 k to 1.00 Dimensions Example : 6.3 V 22 μF Marking color : BLACK 22 j FC 10 k ~ 0.95 (I) Marking 1k 0.90 ( )Reference size H I W 4.3 5.5 max. 1.8 0.65±0.1 1.0 0.35 5.3 6.5 max. 2.2 0.65±0.1 1.5 0.35 6.6 7.8 max. 2.6 0.65±0.1 1.8 0.35 8.3 9.5 max. 3.4 0.65±0.1 2.2 0.35 8.3 10.0 max. 3.4 0.90±0.2 3.1 0.70±0.2 10 0.90±0.2 4.6 0.70±0.2 12.0 max. 3.5 P Unit:mm A, B K +0.15 -0.20 +0.15 -0.20 +0.15 -0.20 +0.15 -0.20 ・The dimensions of the vibration-proof products, please refer to the page of the mounting specification. Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use. Should a safety concern arise regarding this product, please be sure to contact us immediately. 06-Dec-19 PDF
Документация на EEEFC0J101P

Series catalog

Дата модификации: 24.09.2021

Размер: 618.4 Кб

10 стр.

Aluminum Electrolytic Capacitors (SMD Type) Surface Mount Type Series : FC Type : V Low impedance FC ↑ HA Features ● Endurance : 105 °C 1000 h ● Low impedance (1/2 for HA series) ● Vibration-proof product is available ● RoHS compliant upon request. (08 mm and larger) Specifications Category temperature range Rated voltage range Capacitance range Capacitance tolerance Leakage current Dissipation factor (tan d) Characteristics at low temperature Endurance Shelf life Resistance to soldering heat AEC-Q200 –40 °C to +105 °C 6.3 V.DC to 50 V.DC 1 µF to 1500 µF ±20 % (120 Hz/+20 °C) I < 0.01 CV or 3 (µA) After 2 minutes (Whichever is greater) Please see the attached characteristics list V.DC 6.3 10 16 25 35 50 Z(–25 °C) / Z(+20 °C) 2 2 2 2 2 2 (Impedance ratio at 120 Hz) Z(–40 °C) / Z(+20 °C) 3 3 3 3 3 3 After applying rated working voltage for 1000 hours at +105 °C±2 °C and then being stabilized at +20 °C, Capacitors shall meet the following limits. Capacitance change Within ±20 % of the initial value < 200 % of the initial limit tan d DC leakage current Within the initial limit After storage for 1000 hours at +105 °C±2 °C with no voltage applied and then being stabilized at +20 °C, capacitors shall meet the limits specified in Endurance.(With voltage treatment) After reflow soldering and then being stabilized at +20 °C, capacitor shall meet the following limits. Capacitance change Within ±10 % of the initial value tan d Within the initial limit DC leakage current Within the initial limit AEC-Q200 compliant Frequency correction factor for ripple current Frequency (Hz) 50, 60 120 1k 10 k 100 k to Correction factor 0.70 0.75 0.90 0.95 1.00 22 j FC Capacitance (µF) L Series identification Mark for Lead-Free products (Black dot) Rated voltage code (P) W Pressure Relief (010 and larger) ( ) Reference size (Unit : mm) Lot number R. Voltage 6.3 (V.DC) Code j + (I) Negative polarity marking (–) A±0.2 – H 0D±0.5 0.3 max. K Example : 6.3 V.DC 22 µF Marking color : BLACK (I) Dimensions B±0.2 Marking 10 16 25 35 50 A C E V H Size L A, B H code 0D + 0.1 4.3 5.5 max. B 4.0 5.4 - 0.2 C 5.0 5.4 +- 0.1 5.3 6.5 max. 0.2 D 6.3 5.4 +- 0.1 6.6 7.8 max. 0.2 E 8.0 6.2±0.3 8.3 9.5 max. F 8.0 10.2±0.3 8.3 10.0 max. G 10.0 10.2±0.3 10.3 12.0 max. I W P K 1.8 2.2 2.6 3.4 3.4 3.5 0.65±0.1 0.65±0.1 0.65±0.1 0.65±0.1 0.90±0.2 0.90±0.2 1.0 1.5 1.8 2.2 3.1 4.6 0.35+- 0.15 0.20 0.35+- 0.15 0.20 0.35+- 0.15 0.20 0.35+- 0.15 0.20 0.70±0.2 0.70±0.2 Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use. Should a safety concern arise regarding this product, please be sure to contact us immediately. 02 Mar. 2016 PDF
Документация на серию FC_SMD

N_AEC_V-FC_E.indd

Дата модификации: 27.03.2019

Размер: 83.3 Кб

3 стр.

    Товары серии FC_SMD

    Наименование i Упаковка Ёмкость Напряжение Диаметр Высота Ток пульсаций НЧ Размер
    EEEFC0J101P (PAN)

    1000 шт 6.3×6.3×6.6 мм
    EEEFC0J102P (PAN)

    500 шт 10×10×10 мм
    EEEFC0J102V (PAN)

    500 шт 12 мм
    EEEFC0J152P (PAN)

    500 шт 10×10×10 мм
    EEEFC0J152V (PAN)

    500 шт 12 мм
    EEEFC0J220R (PAN)

    2000 шт 4×4×4.3 мм
    EEEFC0J221P (PAN)

    1000 шт 8×8×8.3 мм
    EEEFC0J221V (PAN)

    1000 шт 9.5 мм
    EEEFC0J331P (PAN)

    500 шт 8×8×8.3 мм
    EEEFC0J331V (PAN)

    500 шт 10 мм
    EEEFC0J470R (PAN)

    1000 шт 5×5×5.3 мм
    EEEFC0J680P (PAN)

    1000 шт 6.3×6.3×6.6 мм
    EEEFC1A101P (PAN)

    1000 шт 8×8×8.3 мм
    EEEFC1A101V (PAN)

    1000 шт 9.5 мм
    EEEFC1A102P (PAN)

    в ленте 500 шт 10×10×10 мм
    EEEFC1A102V (PAN)

    500 шт 12 мм
    EEEFC1A151P (PAN)

    1000 шт 8×8×8.3 мм
    EEEFC1A151V (PAN)

    1000 шт 9.5 мм
    EEEFC1A221P (PAN)

    500 шт 8×8×8.3 мм
    EEEFC1A221V (PAN)

    500 шт 10 мм
    EEEFC1A330R (PAN)

    1000 шт 5×5×5.3 мм
    EEEFC1A471P (PAN)

    в ленте 500 шт 10×10×10 мм
    EEEFC1A471V (PAN)

    500 шт 12 мм
    EEEFC1C100R (PAN)

    в ленте 2000 шт 4×4×4.3 мм
    EEEFC1C101P (PAN)

    1000 шт 8×8×8.3 мм
    EEEFC1C101V (PAN)

    1000 шт 9.5 мм
    EEEFC1C220R (PAN)

    1000 шт 5×5×5.3 мм
    EEEFC1C221P (PAN)

    500 шт 10×10×10 мм
    EEEFC1C221V (PAN)

    500 шт 12 мм
    EEEFC1C331P (PAN)

    500 шт 10×10×10 мм
    EEEFC1C331V (PAN)

    500 шт 12 мм
    EEEFC1C470P (PAN)

    в ленте 1000 шт 6.3×6.3×6.6 мм
    EEEFC1C471P (PAN)

    500 шт 10×10×10 мм
    EEEFC1C471V (PAN)

    500 шт 12 мм
    EEEFC1C680P (PAN)

    1000 шт 8×8×8.3 мм
    EEEFC1C680V (PAN)

    1000 шт 9.5 мм
    EEEFC1C681P (PAN)

    500 шт 10×10×10 мм
    EEEFC1C681V (PAN)

    500 шт 12 мм
    EEEFC1E101P (PAN)

    в ленте 500 шт 8×8×8.3 мм
    EEEFC1E101V (PAN)

    500 шт 10 мм
    EEEFC1E220P (PAN)

    1000 шт 6.3×6.3×6.6 мм
    EEEFC1E221P (PAN)

    в ленте 500 шт 10×10×10 мм
    EEEFC1E221V (PAN)

    500 шт 12 мм
    EEEFC1E330P (PAN)

    1000 шт 6.3×6.3×6.6 мм
    EEEFC1E331P (PAN)

    500 шт 10×10×10 мм
    EEEFC1E331V (PAN)

    500 шт 12 мм
    EEEFC1E470P (PAN)

    1000 шт 8×8×8.3 мм
    EEEFC1E470V (PAN)

    1000 шт 9.5 мм
    EEEFC1E471P (PAN)

    500 шт 10×10×10 мм
    EEEFC1E471V (PAN)

    500 шт 12 мм
    EEEFC1E680P (PAN)

    500 шт 8×8×8.3 мм
    EEEFC1E680V (PAN)

    500 шт 10 мм
    EEEFC1E6R8R (PAN)

    2000 шт 4×4×4.3 мм
    EEEFC1H100P (PAN)

    1000 шт 6.3×6.3×6.6 мм
    EEEFC1H101P (PAN)

    в ленте 50 шт 10×10×10 мм
    EEEFC1H101V (PAN)

    500 шт 12 мм
    EEEFC1H1R0R (PAN)

    2000 шт 4×4×4.3 мм
    EEEFC1H220P (PAN)

    1000 шт 8×8×8.3 мм
    EEEFC1H220V (PAN)

    1000 шт 9.5 мм
    EEEFC1H221P (PAN)

    в ленте 500 шт 10×10×10 мм
    EEEFC1H221V (PAN)

    500 шт 12 мм
    EEEFC1H2R2R (PAN)

    2000 шт 4×4×4.3 мм
    EEEFC1H330P (PAN)

    500 шт 8×8×8.3 мм
    EEEFC1H330V (PAN)

    500 шт 10 мм
    EEEFC1H3R3R (PAN)

    2000 шт 4×4×4.3 мм
    EEEFC1H470P (PAN)

    в ленте 500 шт 10×10×10 мм
    EEEFC1H470V (PAN)

    500 шт 12 мм
    EEEFC1H4R7R (PAN)

    1000 шт 5×5×5.3 мм
    EEEFC1V100R (PAN)

    в ленте 1000 шт 5×5×5.3 мм
    EEEFC1V101P (PAN)

    в ленте 500 шт 10×10×10 мм
    EEEFC1V101V (PAN)

    500 шт 12 мм
    EEEFC1V1R0R (PAN)

    2000 шт 4×4×4.3 мм
    EEEFC1V220P (PAN)

    в ленте 1000 шт 6.3×6.3×6.6 мм
    EEEFC1V221P (PAN)

    500 шт 10×10×10 мм
    EEEFC1V221V (PAN)

    500 шт 12 мм
    EEEFC1V2R2R (PAN)

    2000 шт 4×4×4.3 мм
    EEEFC1V330P (PAN)

    1000 шт 8×8×8.3 мм
    EEEFC1V330V (PAN)

    1000 шт 9.5 мм
    EEEFC1V331P (PAN)

    в ленте 500 шт 10×10×10 мм
    EEEFC1V331V (PAN)

    500 шт 12 мм
    EEEFC1V3R3R (PAN)

    2000 шт 4×4×4.3 мм
    EEEFC1V470P (PAN)

    в линейках 1000 шт 8×8×8.3 мм
    EEEFC1V470V (PAN)

    1000 шт 9.5 мм
    EEEFC1V4R7R (PAN)

    2000 шт 4×4×4.3 мм
    EEEFC1V6R8R (PAN)

    1000 шт 5×5×5.3 мм
