DRT-960-24

MEAN WELL
AC-DC на DIN-рейку (DC-DC), 960Вт, Uвх=340-550VAC 3фазы, 4 провода, один выход 24В/40А, подстр. Uвых=24...28В, DIN-рейка, изоляция 3кVAC (вх-вых), 1,5кVAC (вх-корп), 276х125.2х100 мм, -20...+40°С Производитель: MEAN WELL
развернуть ▼ свернуть ▲

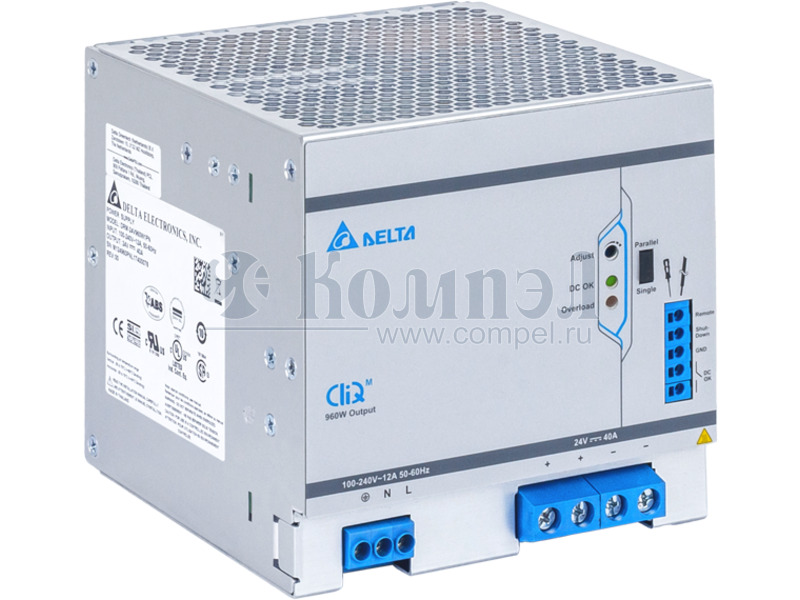

Фотография серии DRT-960

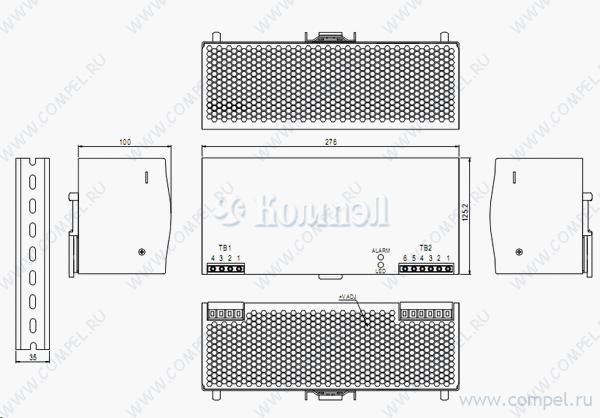

Чертеж серии DRT-960



Технические характеристики

показать свернуть
Выходная мощность (ном)
Выход
Напряжение 1 канала
Выходной ток 1 канала
Тип стабилизации
Вход
Конструктивное исполнение
Возможности
Типы защиты КЗ, перегрузка, перенапряжение, перегрев
Количество выходов
Тип управления выходом
Исполнение
Входное напряжение AC
Коэффициент мощности
Напряжение изоляции вход-выход
Напряжение изоляции вход-земля
Напряжение изоляции выход-земля
Применение
КПД
Шум
Размер 110×125.2×100 мм
Рабочая температура
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 4

показать свернуть
Тип Наименование Корпус Упаковка i P вых Выход U1 I1 Стабилизация Вход Конструктив Возможности Защита Выходов Управление IP U вх AC U вх DC Коэф. мощн. U изол вх-вых U изол вх-земля U изол вых-земля Применение КПД Шум T раб Карточка
товара
A+ SDR-960-24 (MW)

— в коробках 6 шт AC-DC сетевой преобразователь - P вых: 960 Вт; Выход: 24 В; U1: 24...28 В; I1: до 52 А;... ККМ, сухой контакт DC OK, ограничение тока, параллельное включение, пиковая перегрузка КЗ, перегрузка, перенапряжение, перегрев
A+ 1469520000 (WDML)

— AC-DC сетевой преобразователь - P вых: 960 Вт; Выход: 24; U1: 22...28 В; I1: до 40 А; С... 3х-цветный светодиодный сигнал: DC OK, предупреждение, ошибка; реле состояния, ККМ КЗ, перегрузка, перегрев, обратное напряжение малогабаритные распределительные шкафы —
A+ 1478150000 (WDML)

— 1 шт AC-DC сетевой преобразователь - P вых: 960 Вт; Выход: 24; U1: 22.5...29.5 В; I1: до 48 ... последовательное переключение; 2х-цветный светодиодный сигнал релейного выхода вкл./выкл.; запуск ? -40 °C — — —
A+ 2938879 QUINT-PS-100-240AC/24DC/40 (PHOENIX)

— 1 шт AC-DC сетевой преобразователь - P вых: 960 Вт; Выход: 24 В; U1: 22.5...29.5 В; I1: 40..... — — — — — — —

Файлы 2

показать свернуть
960W Three Phase Industrial DIN RAIL Power Supply D R T- 9 6 0 series ■ Features : Three-Phase AC 340 ~ 550V wide range input High efficiency 91% and low dissipation Protections: Short circuit / Overload / Over voltage / Over temperature Optional parallel function(1+1) Cooling by free air convection Can be installed on DIN rail TS-35/7.5 or 15 UL 508(industrial control equipment)approved EN61000-6-2(EN50082-2) industrial immunity level 100% full load burn-in test 3 years warranty Bauar t gepruft Sicherheit egel ma ge od o s be wac g www. tuv.com ID 2000000000 SPECIFICATION MODEL OUTPUT INPUT DRT-960-24 DRT-960-48 DC VOLTAGE 24V 48V RATED CURRENT 40A 20A CURRENT RANGE 0 ~ 40A 0 ~ 20A RATED POWER 960W 960W RIPPLE & NOISE (max.) Note.2 80mVp-p 80mVp-p VOLTAGE ADJ. RANGE 48 ~ 55V ±1.0% 24 ~ 28V VOLTAGE TOLERANCE Note.3 ±1.0% ±0.5% LINE REGULATION ±0.5% LOAD REGULATION ±0.5% SETUP, RISE TIME 200ms, 60ms/400VAC HOLD UP TIME (Typ.) VOLTAGE RANGE 14ms/400VAC 30ms/500VAC at full load Three-Phase 340 ~ 550VAC (Dual phase operation possible in connecting L1,L3,FG Note.5 ) FREQUENCY RANGE 47 ~ 63Hz EFFICIENCY (Typ.) 91% AC CURRENT (Typ.) INRUSH CURRENT (max.) 2A/400VAC 1.6A/500VAC COLD START 50A LEAKAGE CURRENT ±0.5% 200ms, 60ms/500VAC at full load 92% <3.5mA / 530VAC 105 ~ 125% rated output power OVERLOAD PROTECTION OVER VOLTAGE OVER TEMPERATURE Protection type : Shut down o/p voltage, re-power on to recover Shut down o/p voltage, recovers automatically after temperature goes down WORKING TEMP. -20 ~ +60℃ (Refer to "Derating Curve") WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS SAFETY & WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC (Note 4) EMC EMISSION EMC IMMUNITY MTBF OTHERS DIMENSION PACKING NOTE Protection type : Constant current limiting, unit will shut down o/p voltage after 3 sec. , re-power on to recover 30 ~ 36V 59 ~ 66V 20 ~ 90% RH non-condensing -40 ~ +85℃, 10 ~ 95% RH non-condensing ±0.03%/℃ (0 ~ 50℃) Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 UL508, UL60950-1, TUV EN60950-1, EAC TP TC 004 approved I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH Compliance to EN55011 (CISPR11), EN55032 (CISPR32), EN61204-3 Class B, EN61000-3-2,-3, EAC TP TC 020 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61204-3, EN61000-6-2 (EN50082-2), heavy industry level, criteria A, EAC TP TC 020 122.5K hrs min. MIL-HDBK-217F (25℃) 276*125.2*100mm (W*H*D) 3.3Kg; 4pcs/14.2Kg/1.14CUFT 1. All parameters NOT specially mentioned are measured at 400VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 5. Dual phase operation(connecting L1,L3,FG)is allowed under certain derating to output load. Please refer to the derating curves for details. 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft). File Name:DRT-960-SPEC 2018-01-15 PDF
Документация на DRT-960-48

DRT-960.cdr

Дата модификации: 03.01.2018

Размер: 91.7 Кб

3 стр.

D R T- 9 6 0 960W Three Phase Industrial DIN RAIL Power Supply series Features : Three-Phase AC 340 ~ 550V wide range input High efficiency 91% and low dissipation Protections: Short circuit / Overload / Over voltage / Over temperature Optional parallel function(1+1) Cooling by free air convection Can be installed on DIN rail TS-35/7.5 or 15 UL 508(industrial control equipment)approved EN61000-6-2(EN50082-2) industrial immunity level 100% full load burn-in test 3 years warranty R SPECIFICATION MODEL OUTPUT INPUT DRT-960-24 DRT-960-48 DC VOLTAGE 24V 48V RATED CURRENT 40A 20A CURRENT RANGE 0 ~ 40A 0 ~ 20A RATED POWER 960W 960W RIPPLE & NOISE (max.) Note.2 80mVp-p 80mVp-p VOLTAGE ADJ. RANGE 48 ~ 55V 1.0% 24 ~ 28V VOLTAGE TOLERANCE Note.3 1.0% LINE REGULATION 0.5% LOAD REGULATION 0.5% 0.5% 0.5% SETUP, RISE TIME 200ms, 60ms/400VAC HOLD UP TIME (Typ.) VOLTAGE RANGE 14ms/400VAC 30ms/500VAC at full load Three-Phase 340 ~ 550VAC (Dual phase operation possible in connecting L1,L3,FG Note.5) FREQUENCY RANGE 47 ~ 63Hz EFFICIENCY (Typ.) 91% AC CURRENT (Typ.) INRUSH CURRENT (max.) 2A/400VAC 1.6A/500VAC COLD START 50A LEAKAGE CURRENT 200ms, 60ms/500VAC at full load 92% <3.5mA / 530VAC 105 ~ 125% rated output power OVERLOAD PROTECTION OVER VOLTAGE OVER TEMPERATURE WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS WITHSTAND VOLTAGE SAFETY & EMC (Note 4) 5 (TSW2) Detect on heatsink of power diode Protection type : Shut down o/p voltage, recovers automatically after temperature goes down -20 ~ +60 (Refer to output load derating curve) 20 ~ 90% RH non-condensing -40 ~ +85 , 10 ~ 95% RH 0.03%/ (0 ~ 50 Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 UL508, UL60950-1, TUV EN60950-1 Approved I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC EMI CONDUCTION & RADIATION Compliance to EN55011 (CISPR11), EN55022 (CISPR22), EN61204-3 Class B MTBF DIMENSION PACKING NOTE Protection type : Shut down o/p voltage, re-power on to recover 110 5 (TSW1) Detect on heatsink of power transistor 85 ISOLATION RESISTANCE HARMONIC CURRENT EMS IMMUNITY OTHERS Protection type : Constant current limiting, unit will shut down o/p voltage after 3 sec. , re-power on to recover 30 ~ 36V 59 ~ 66V Compliance to EN61000-3-2,-3 Compliance to EN61000-4-2,3,4,5,6,8,11, ENV50204, EN61204-3, EN61000-6-2 (EN50082-2) Heavy industry level, criteria A 122.5Khrs min. MIL-HDBK-217F (25 ) 276*125.2*100mm (W*H*D) 3.3Kg; 4pcs/14.2Kg/1.14CUFT 1. All parameters NOT specially mentioned are measured at 400VAC input, rated load and 25 of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 5. Dual phase operation(connecting L1,L3,FG)is allowed under certain derating to output load. Please refer to the derating curves for details. File Name:DRT-960-SPEC 2007-01-12 PDF
Документация на серию DRT-960

DRT-960.cdr

Дата модификации: 13.02.2007

Размер: 287.3 Кб

3 стр.
