LPC-20-350

MEAN WELL
ИП для светодиодного освещения: 20 Вт; 350 мА (стаб. по току); Вход: 90...264 В;
развернуть ▼ свернуть ▲

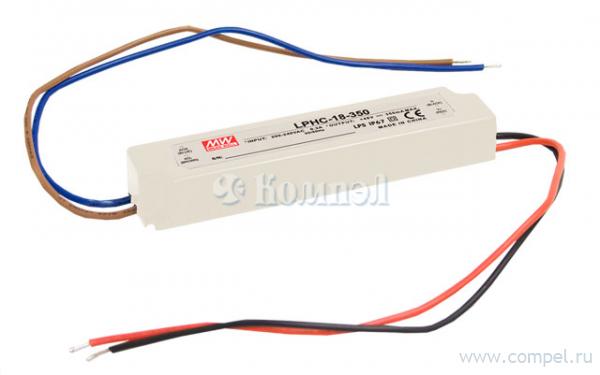

Фотография серии LPC-20
Чертеж серии LPC-20



Технические характеристики

показать свернуть
Тип преобразователя
Мощность выходная
Диапазон выходных напряжений
Диапазон выходных токов
Напряжение сети/входное номинальное
Режим стабилизации
Тип диммирования
Исполнение конструктивное
Степень защиты (IP)
Подстройка выходных параметров
Диапазон входных напряжений (AC)
Напряжение изоляции вход-выход
Количество выходов
Эффективность
Функция защиты
Температура рабочая
Размер 118×35×26 мм
Применение для промышленного и наружного освещения
Особенности
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 1

показать свернуть
Тип Наименование Корпус Упаковка i Тип преобразователя Мощность выходная Напряжение выходное Ток выходной Напряжение входное Режим стабилизации Димминг Исполнение конструктивное Степень защиты (IP) Тип управления выходом Напряжение входное (AC) Напряжение входное (DC) Напряжение изоляции Количество выходов Коэффициент мощности Эффективность Функция защиты Температура рабочая Применение Особенности Карточка
товара
P+ APC-16-350 (MW)

— в коробках 120 шт —

Файлы 2

показать свернуть
LPC-20 20W Single Output Switching Power Supply ■ Features : Constant current design Universal AC input / Full range Withstand 300VAC surge input for 5 seconds Protections: Short circuit / Over voltage Cooling by free air convection Small and compact size Fully encapsulated with IP67 level (Note.7) Fully isolated plastic case Class Ⅱ power unit, no FG Class 2 power unit Pass LPS Suitable for LED related fixture or appliance series User’s Manual (such as LED Decoration or Advertisement devices)(Note.10) 100% full load burn-in test Low cost, high reliability 2 years warranty LPS IP67 SPECIFICATION MODEL Bauar t gepruft Sicherheit egel ma ge od o s be wac g LPC-20-350 LPC-20-700 RATED CURRENT 350mA 700mA DC VOLTAGE RANGE 9 ~ 48V 9 ~ 30V RATED POWER 16.8W 21W RIPPLE & NOISE (max.) Note.2 200mVp-p OUTPUT CURRENT ACCURACY ±5.0% LINE REGULATION ±1.0% SETUP, RISE TIME VOLTAGE RANGE ±2.0% 50ms/230VAC Note.4 90 ~ 264VAC EFFICIENCY (Typ.) 83% AC CURRENT (Typ.) INRUSH CURRENT(Typ.) 0.55A/115VAC 0.35A/230VAC COLD START 70A(twidth=220μs measured at 50% Ipeak) at 230VAC MAX. No. of PSUs on 16A CIRCUIT BREAKER 8 units (circuit breaker of type B) / 14 units (circuit breaker of type C) at 230VAC 0.25mA / 240VAC 50.4 ~ 60V -30~ +70℃ (Refer to "Derating Curve") WORKING HUMIDITY 20 ~ 90% RH non-condensing VIBRATION 31.5 ~ 40.5V Protection type : Shut off o/p voltage, clamping by zener diode WORKING TEMP. ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT -40 ~ +80℃, 10 ~ 95% RH ±0.03%/℃ (0 ~ 50℃) 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes SAFETY STANDARDS UL879, UL1310 , CSA C22.2 No. 207-M89(except for LPC-20-350), CAN/CSA C22.2 No. 223-M91(except for LPC-20-350), IEC/BS EN/EN 62368-1, EAC TP TC 004, IP67 approved WITHSTAND VOLTAGE I/P-O/P:3KVAC ISOLATION RESISTANCE I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A, BS EN/EN61000-3-3, EAC TP TC 020 EMC EMISSION EMC IMMUNITY MTBF DIMENSION PACKING NOTE 127 ~ 370VDC 47 ~ 63Hz PROTECTION OVER VOLTAGE OTHERS 500ms, 250ms / 115VAC at full load 16ms/115VAC at full load FREQUENCY RANGE LEAKAGE CURRENT EMC 200mVp-p Note.6 500ms, 250ms / 230VAC HOLD UP TIME (Typ.) SAFETY & ( except for 350mA ) VOLTAGE TOLERANCE Note.3 ±5.0% LOAD REGULATION INPUT ( for 350mA only) www.tuv.com ID 2000000000 Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, criteria A, EAC TP TC 020 786.5Khrs min. MIL-HDBK-217F (25℃) 118*35*26mm (L*W*H) 0.22Kg; 60pcs/14.2Kg/0.72CUFT 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Derating may be needed under low input voltage. Please check the static characteristics for more details. 5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time. 7. Suitable for indoor use or outdoor use without direct sunlight exposure. Please avoid immerse in the water over 30 minute. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft). 9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf 10. This product is not intended for LED lighting luminaire applications in the EU.(In the EU the LPF/NPF/XLG series are recommended.) 11. To fulfill requirements of latest ErP regulation for lighting luminaires, this LED Driver can only be used behind a switch without permanently connected to mains. ※ Product Liability Disclaimer：For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx File Name:LPC-20-SPEC 2021-09-03 PDF
Документация на LPC-20-700

LPC-20.cdr

Дата модификации: 03.09.2021

Размер: 73.9 Кб

2 стр.

LPC-20 20W Single Output Switching Power Supply ¡¡E¡½ E ¡E ¡E ¡E ¡E ¡E ¡E ¡E ¡E ¡E ¡E ¡E ¡E ¡ E series Features : Constant current design Universal AC input / Full range Withstand 300VAC surge input for 5 seconds Protections: Short circuit / Over voltage Cooling by free air convection Small and compact size Fully encapsulated with IP67 level (Note.7) Fully isolated plastic case Class power unit, no FG Class 2 power unit Pass LPS Suitable for LED lighting and moving sign applications 100% full load burn-in test Low cost, high reliability 2 years warranty ¢º LPS IP67 SPECIFICATION MODEL LPC-20-350 LPC-20-700 RATED CURRENT 350mA 700mA DC VOLTAGE RANGE 9 ~ 48V 9 ~ 30V RATED POWER 16.8W 21W RIPPLE & NOISE (max.) Note.2 200mVp-p OUTPUT VOLTAGE TOLERANCE Note.3 CURRENT ACCURACY LINE REGULATION LOAD REGULATION SETUP, RISE TIME 50ms/230VAC VOLTAGE RANGE INPUT Note.4 90 ~ 264VAC FREQUENCY RANGE 47 ~ 63Hz EFFICIENCY (Typ.) 83% AC CURRENT (Typ.) INRUSH CURRENT(max.) LEAKAGE CURRENT PROTECTION OVER VOLTAGE 0.55A/115VAC 500ms, 250ms / 115VAC at full load 16ms/115VAC at full load 127 ~ 370VDC 0.35A/230VAC £g COLD START 70A(twidth=220 s measured at 50% Ipeak) at 230VAC 0.25mA / 240VAC 50.4 ~ 60V ¢J (Refer to "Derating Curve") -30~ +70 WORKING HUMIDITY 20 ~ 90% RH non-condensing VIBRATION SAFETY STANDARDS 31.5 ~ 40.5V Protection type : Shut off o/p voltage, clamping by zener diode WORKING TEMP. ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT ¢J, 10 ~ 95% RH ¡Ó0.03%/¢J (0 ~ 50¢J) -40 ~ +80 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes UL879, UL1310 , CSA C22.2 No. 207-M89(except for LPC-20-350), CAN/CSA C22.2 No. 223-M91(except for LPC-20-350), IP67 approved ; design refer to TUV EN60950-1 SAFETY & WITHSTAND VOLTAGE I/P-O/P:3KVAC EMC I/P-O/P:>100M Ohms / 500VDC / 25 / 70% RH Compliance to EN55022 (CISPR22) Class B, EN61000-3-2 Class A, EN61000-3-3 ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF OTHERS DIMENSION PACKING NOTE ( except for 350mA ) 200mVp-p ¡Ó5.0% ¡Ó5.0% Ó¡ 1.0% Ó¡ 2.0% Note.6 500ms, 250ms / 230VAC HOLD UP TIME (Typ.) ( for 350mA only) ¢J Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A 786.5K hrs min. MIL-HDBK-217F (25 ) 118*35*26mm (L*W*H) 0.22Kg; 60pcs/14.2Kg/0.62CUFT ¢J ¢J 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Derating may be needed under low input voltage. Please check the static characteristics for more details. 5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time. 7. Suitable for indoor use or outdoor use without direct sunlight exposure. Please avoid immerse in the water over 30 minute. 8. The unit might not be suitable for lighting applications in EU countries. Please check with your local authorities for the possible use of the unit. File Name:LPC-20-SPEC 2012-12-26 PDF
Документация на серию LPC-20

LPC-20.cdr Keywords:

Дата модификации: 09.01.2013

Размер: 72.8 Кб

2 стр.
