PM-10-3.3

AC/DC преобразователь: на печатную плату; 10 Вт; выход 3.3В @ 2.5А; вход: 85...264VAC / 120...370VDC; -20...70°C
развернуть ▼ свернуть ▲



Технические характеристики

показать свернуть
Выходная мощность (ном)
Выход
Напряжение 1 канала
Выходной ток 1 канала
Тип стабилизации
Вход
Конструктивное исполнение
  Возможности: компактный дизайн, базовая модель, защита по II классу, источник закрытого исполнения на ПП
Типы защиты КЗ, перегрузка, перенапряжение
Количество выходов
Тип управления выходом
Исполнение
Входное напряжение AC
Входное напряжение DC
Коэффициент мощности
Напряжение изоляции вход-выход
Применение
КПД
Шум

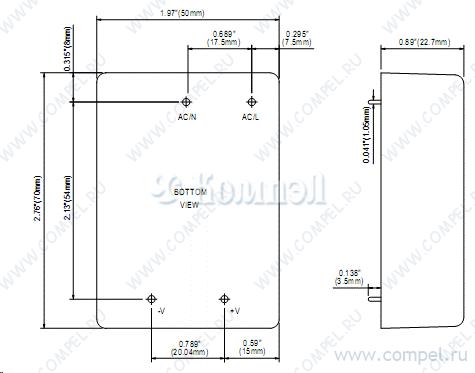

Размер 70×50×22.7 мм
Рабочая температура
Примечание AC-DC Regulated Power Supply Module, 1 Output, 8.25W, Hybrid
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 2

показать свернуть
Тип Наименование Корпус Упаковка i P вых Выход U1 I1 Стабилизация Вход Конструктив Возможности Защита Выходов Управление IP U вх AC U вх DC Коэф. мощн. U изол вх-вых U изол вх-земля U изол вых-земля Применение КПД Шум T раб Примечание Карточка
товара
P= MPM-10-3.3 (MW)

30 шт КЗ, перегрузка, перенапряжение, перегрев AC-DC Regulated Power Supply Module
A+ IRM-10-3.3 (MW)

на поддоне 270 шт AC-DC сетевой преобразователь - P вых: 8.2 Вт; Выход: 3.3 В; U1: 3.3 В; I1: до 2.5 А; С... компактный дизайн, базовая модель, защита по II классу, источник закрытого исполнения на ПП КЗ, перегрузка, перенапряжение AC-DC Regulated Power Supply Module, 1 Output, 8.25W, Hybrid

Файлы 2

показать свернуть
10W Single Output Medical Grade Switching Power Supply PM-10 ■ Features : series User’s Manual Universal AC input / Full range Protections: Short circuit / Overload / Over voltage Ultra-miniature size, light weight Cooling by free air convection Isolation classⅡ Medical safety approved (2 x MOPP between primary to secondary) No load power consumption<0.5W 100% full load burn-in test Fixed switching frequency at 67KHz High reliability Suitable for BF application with appropriate system consideration 3 years warranty EN 60601-1 IEC 60601-1 SPECIFICATION 8 MODEL OUTPUT PM-10-3.3 PM-10-5 PM-10-12 PM-10-15 PM-10-24 DC VOLTAGE 3.3V 5V 12V 15V 24V RATED CURRENT 2.5A 2A 0.85A 0.67A 0.42A CURRENT RANGE 0 ~ 2.5A 0 ~ 2A 0 ~ 0.85A 0 ~ 0.67A 0 ~ 0.42A RATED POWER 8.25W 10W 10.2W 10.05W 10.08W 150mVp-p 150mVp-p 150mVp-p 240mVp-p VOLTAGE TOLERANCE Note.3 ±3.0% ±2.0% ±2.0% ±2.0% ±2.0% ±1.0% ±1.0% ±0.5% ±0.5% ±0.5% LOAD REGULATION ±1.0% ±1.0% ±1.0% ±1.0% ±0.5% SETUP, RISE TIME 1800ms, 20ms/230VAC HOLD UP TIME (Typ.) 100ms/230VAC VOLTAGE RANGE 85 ~ 264VAC FREQUENCY RANGE 47 ~ 440Hz 79% 79% RIPPLE & NOISE (max.) Note.2 150mVp-p LINE REGULATION INPUT EFFICIENCY (Typ.) 66% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 0.25A/115VAC LEAKAGE CURRENT 1800ms, 20ms/115VAC at full load 24ms/115VAC at full load 120 ~ 370VDC 74% 78% 0.15A/230VAC COLD START 25A/115VAC 45A/230VAC Note.5 Touch current < 80μ A/264VAC OVERLOAD PROTECTION OVER VOLTAGE WORKING TEMP. Above 105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed 3.8 ~ 4.95V 5.75 ~ 6.75V 13.8 ~ 16.2V 17.25 ~ 20.25V -20 ~ +70℃ (Refer to "Derating Curve") 20 ~ 90% RH non-condensing WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS ±0.03%/℃ (0 ~ 50℃) 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1, EAC TP TC 004 approved ISOLATION LEVEL SAFETY & WITHSTAND VOLTAGE Primary-Secondary: 2xMOPP I/P-O/P:4KVAC EMC (Note 4) OTHERS -40 ~ +85℃, 10 ~ 95% RH ISOLATION RESISTANCE EMC EMISSION I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH Compliance to EN55011(CISPR11),EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020 EMC IMMUNITY MTBF Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN60601-1-2, EN61204-3, medical level, criteria A, EAC TP TC 020 DIMENSION PACKING NOTE 27.6 ~ 32.4V Protection type : Shut off o/p voltage, clamping by zener diode 723.2Khrs min. MIL-HDBK-217F (25℃) 70*50*22.7mm (L*W*H) 0.105Kg; 120pcs/13.6Kg/0.94CUFT 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 5. Touch current was measured from primary input to DC output. 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft). File Name:PM-10-SPEC 2021-09-15 PDF
Документация на PM-10-5

PM-10-20210915.cdr

Дата модификации: 15.09.2021

Размер: 70.6 Кб

2 стр.

PM-10 10W Output Switching Power Supply series Features : Universal AC input / Full range Protections: Short circuit / Overload / Over voltage Ultra-miniature size, light weight Cooling by free air convection Isolation class UL60601-1/IEC60601-1/EN60601-1 medical safety approved No load power consumption<0.5W 100% full load burn-in test Fixed switching frequency at 67KHz High reliability 3 years warranty EN60601-1 IEC60601-1 SPECIFICATION MODEL DC VOLTAGE OUTPUT INPUT PM-10-12 PM-10-15 PM-10-24 12V 15V 24V 2.5A 2A 0.85A 0.67A 0.42A CURRENT RANGE 0 ~ 2.5A 0 ~ 2A 0 ~ 0.85A 0 ~ 0.67A 0 ~ 0.42A RATED POWER 8.25W 10W 10.2W 10.05W 10.08W 80mVp-p 150mVp-p 150mVp-p 240mVp-p RIPPLE & NOISE (max.) Note.2 80mVp-p VOLTAGE TOLERANCE Note.3 3.0% 2.0% 2.0% 2.0% 2.0% LINE REGULATION 1.0% 1.0% 0.5% 0.5% 0.5% LOAD REGULATION 1.0% 1.0% 1.0% 1.0% 0.5% SETUP, RISE TIME 1000ms, 20ms/230VAC HOLD UP TIME (Typ.) 100ms/230VAC VOLTAGE RANGE 85 ~ 264VAC FREQUENCY RANGE 47 ~ 440Hz EFFICIENCY (Typ.) 66% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 0.25A/115VAC OVERLOAD OVER VOLTAGE WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS WITHSTAND VOLTAGE SAFETY & ISOLATION RESISTANCE EMC EMI CONDUCTION & RADIATION (Note 4) HARMONIC CURRENT EMS IMMUNITY MTBF DIMENSION PACKING NOTE PM-10-5 5V RATED CURRENT PROTECTION OTHERS PM-10-3.3 3.3V 1000ms, 20ms/115VAC at full load 24ms/115VAC at full load 120 ~ 370VDC 74% 78% 79% 79% 0.15A/230VAC COLD START 25A/115VAC 45A/230VAC Above 105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed 3.8 ~ 4.95V 13.8 ~ 16.2V 5.75 ~ 6.75V 17.25 ~ 20.25V 27.6 ~ 32.4V Protection type : Shut off -20 ~ +70 (Refer to output load derating curve) 20 ~ 90% RH non-condensing -40 ~ +85 , 10 ~ 95% RH 0.03%/ (0 ~ 50 10 ~ 500Hz, 2G 10min./1cycle, Period for 60min.each along X, Y, Z axes UL60601-1,TUV EN60601-1 Approved I/P-O/P:4KVAC I/P-O/P:100M Ohms/500VDC Compliance to EN55011(CISPR11),EN55022 (CISPR22) Class B Compliance to EN61000-3-2,-3 Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, EN60601-1-2, EN61204-3 Medical level, criteria A 723.2Khrs min. MIL-HDBK-217F (25 70*50*22.7mm (L*W*H) 0.105Kg; 120pcs/13.6Kg/0.97CUFT ) 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. File Name:PM-10-SPEC 2006-12-18 PDF
Документация на серию PM-10

PM-10.cdr

Дата модификации: 12.01.2007

Размер: 243.1 Кб

2 стр.
