RD-50A

MEAN WELL
Компактный AC-DC (DC-DC), 50Вт, Uвх=88-264VAC (120-370VDC), два выхода +5В/6А, +12В/3А, подстр. Uвых1=-5/+10%, изоляция 3кVAC (вх-вых), 1,5кVAC (вх-корп), 99х97х36 мм, -20...+70°С Производитель: MEAN WELL
развернуть ▼ свернуть ▲
Фотография серии RD-50

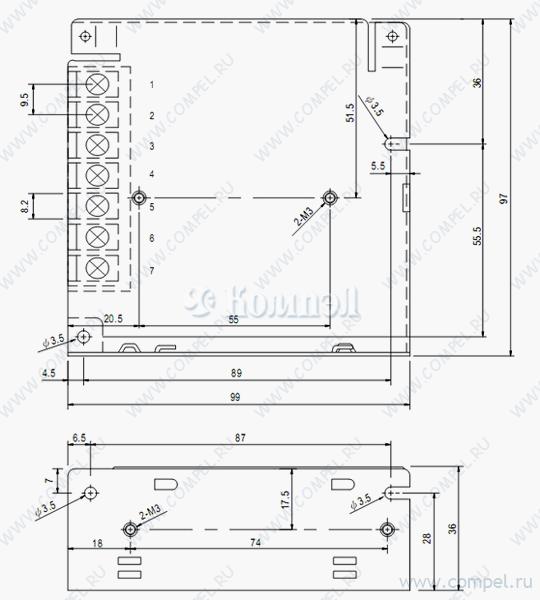

Чертеж серии RD-50



Технические характеристики

показать свернуть
Выходная мощность (ном)
Выход
Напряжение 1 канала
Выходной ток 1 канала
Тип стабилизации
Вход
Конструктивное исполнение
Возможности
Типы защиты КЗ, перегрузка, перенапряжение
Количество выходов
Тип управления выходом
Исполнение
Входное напряжение AC
Входное напряжение DC
Коэффициент мощности
Напряжение изоляции вход-выход
Напряжение изоляции вход-земля
Напряжение изоляции выход-земля
Применение
КПД
Шум
Размер 99×97×36 мм
Рабочая температура
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 7

показать свернуть
Тип Наименование Корпус Упаковка i P вых Выход U1 I1 Стабилизация Вход Конструктив Возможности Защита Выходов Управление IP U вх AC U вх DC Коэф. мощн. U изол вх-вых U изол вх-земля U изол вых-земля Применение КПД Шум T раб Примечание Карточка
товара
A+ RD-65A (MW)

— в коробках 30 шт AC-DC сетевой преобразователь - P вых: 66 Вт; Выход: 5 В, 12 В; U1: 4.75...5.5 В; I1: 0... КЗ, перегрузка, перенапряжение —
A+ ADS-5512 (MW)

— 1 шт AC-DC сетевой преобразователь - P вых: 51 Вт; Выход: 12 В, 5 В; U1: 10.8...13.2 В; I1: ... КЗ, перегрузка, перенапряжение —
A+ RID-50A (MW)

— 1 шт AC-DC сетевой преобразователь - P вых: 50 Вт; Выход: 5 В, 12 В; U1: 4.75...5.5 В; I1: 0... КЗ, перегрузка, перенапряжение —
A+ RID-65A (MW)

— 1 шт AC-DC сетевой преобразователь - P вых: 65 Вт; Выход: 5 В, 12 В; U1: 4.75...5.5 В; I1: 0... КЗ, перегрузка, перенапряжение AC-DC Regulated Power Supply Module, 2 Output, 66W, Hybrid
A+ LM50-10A0512-20 (MORNSUN)

— КЗ, перегрузка, перенапряжение — —
A+ LM50-10D0512-20 (MORNSUN)

— 2 шт КЗ, перегрузка, перенапряжение — — — — — — — AC-DC Regulated Power Supply Module
A+ LM75-10A0512-40 (MORNSUN)

—

 КЗ, перегрузка, перенапряжение — —

Файлы 2

показать свернуть
RD-50 50W Dual Output Switching Power Supply series User’s Manual ■ Features : Universal AC input / Full range Protections: Short circuit / Overload / Over voltage Cooling by free air convection LED indicator for power on 100% full load burn-in test All using 105℃ long life electrolytic capacitors Withstand 300VAC surge input for 5 second High operating temperature up to 70℃ Withstand 5G vibration test High efficiency, long life and high reliability 3 years warranty Bauar t gepruft Sicherheit egel ma ge od o s be wac g SPECIFICATION www. tuv.com ID 2000000000 UL62368-1 MODEL RD-50A CH1 CH2 DC VOLTAGE 5V 12V 5V 24V RATED CURRENT 6A 2A 4A 1.4A 0 ~ 3A 0 ~ 6A 0 ~ 2A 120mVp-p 80mVp-p 150mVp-p CH1: 4.75 ~ 5.5V VOLTAGE TOLERANCE Note.3 ±2.0% ±7.0% CH1: 4.75 ~ 5.5V ±2.0% ±8% LINE REGULATION Note.4 ±0.5% ±1.5% ±0.5% ±1.5% LOAD REGULATION Note.5 ±0.5% ±3.0% ±0.5% ±3.0% Note.3 0 ~ 6A 54W 53.6W RIPPLE & NOISE (max.) Note.2 80mVp-p VOLTAGE ADJ. RANGE SETUP, RISE TIME 500ms, 20ms/230VAC HOLD UP TIME (Typ.) 60ms/230VAC VOLTAGE RANGE 88 ~ 264VAC FREQUENCY RANGE 47 ~ 63Hz EFFICIENCY(Typ.) 78% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 1.3A/115VAC 0.8A/230VAC COLD START 48A/230VAC OVERLOAD PROTECTION OVER VOLTAGE WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS SAFETY & WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMC EMISSION (Note 6) EMC IMMUNITY MTBF DIMENSION PACKING NOTE RD-50B CH2 LEAKAGE CURRENT OTHERS TPTC004 CH1 RATED POWER INPUT IEC62368-1 OUTPUT NUMBER CURRENT RANGE OUTPUT BS EN/EN62368-1 1200ms, 30ms/115VAC at full load 10ms/115VAC at full load 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage) 79% <2mA / 240VAC 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed CH1: 5.75 ~ 6.75V Protection type : Hiccup mode, recovers automatically after fault condition is removed -25 ~ +70℃ (Refer to "Derating Curve") 20 ~ 90% RH non-condensing -40 ~ +85℃, 10 ~ 95% RH ±0.03%/℃ (0 ~ 50℃)on +5V output 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020 172.6Khrs min. MIL-HDBK-217F (25℃) 99*97*36mm (L*W*H) 0.41Kg; 45pcs/19.5Kg/0.94CUFT 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation, when multi-channel output, it is recommended that CH1 load > 10%. 4. Line regulation is measured from low line to high line at rated load. 5. Load regulation is measured from 0% to 100% rated load. 6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com) 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft). ※ Product Liability Disclaimer：For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx File Name:RD-50-SPEC 2021-09-16 PDF
Документация на RD-50B

RD-50-20210915.cdr

Дата модификации: 28.09.2021

Размер: 96.9 Кб

2 стр.

RD-50 50W Dual Output Switching Power Supply series Features : Universal AC input / Full range Protections:Short circuit/Over load/Over voltage Cooling by free air convection LED indicator for power on 100% full load burn-in test All using 105 long life electrolytic capacitors Withstand 300VAC surge input for 5 second High operating temperature up to 70 Withstand 5G vibration test High efficiency, long life and high reliability 3 years warranty SPECIFICATION MODEL OUTPUT INPUT RD-50A RD-50B OUTPUT NUMBER CH1 CH2 CH1 DC VOLTAGE 5V 12V 5V CH2 24V RATED CURRENT 6A 2A 4A 1.4A CURRENT RANGE 0.3 ~ 6A 0.3 ~ 3A 0.3 ~ 6A 0.2 ~ 2A RATED POWER 54W 53.6W RIPPLE & NOISE (max.) Note.2 80mVp-p 120mVp-p VOLTAGE ADJ. RANGE CH1: 4.75 ~ 5.5V VOLTAGE TOLERANCE Note.3 2.0% 7.0% 80mVp-p 150mVp-p CH1: 4.75 ~ 5.5V 2.0% -4,+8% LINE REGULATION Note.4 0.5% 1.5% 0.5% 1.5% LOAD REGULATION Note.5 0.5% 3.0% 0.5% 3.0% SETUP, RISE TIME 500ms, 20ms/230VAC HOLD TIME (Typ.) 60ms/230VAC VOLTAGE RANGE 88 ~ 264VAC FREQUENCY RANGE 47 ~ 63Hz EFFICIENCY(Typ.) 79% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 1.3A/115VAC 0.8A/230VAC COLD START 33A/230VAC LEAKAGE CURRENT 1200ms, 30ms/115VAC at full load 14ms/115VAC at full load 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage) 80% <2mA / 240VAC 110 ~ 150% rated output power OVER LOAD PROTECTION OVER VOLTAGE WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS WITHSTAND VOLTAGE Protection type : Hiccup mode, recovers automatically after fault condition is removed CH1: 5.75 ~ 6.75V Protection type : Hiccup mode, recovers automatically after fault condition is removed -25 ~ +70 (Refer to output load derating curve) 20 ~ 90% RH non-condensing -40 ~ +85 , 10 ~ 95% RH 0.03%/ (0 ~ 50 )on +5V output 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes UL60950-1, TUV EN60950-1 Approved I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC SAFETY & ISOLATION RESISTANCE EMI CONDUCTION & RADIATION Compliance to EN55022 (CISPR22) Class B EMC (Note 6) HARMONIC CURRENT EMS IMMUNITY MTBF OTHERS DIMENSION PACKING NOTE Compliance to EN61000-3-2,-3 Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN61000-6-2 (EN50082-2) heavy industry level, criteria A 172.6Khrs min. MIL-HDBK-217F (25 99*97*36mm (L*W*H) 0.41Kg; 45pcs/19.5Kg/0.9CUFT ) 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Line regulation is measured from low line to high line at rated load. 5. Load regulation is measured from 0% to 100% rated load. 6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. File Name:RD-50-SPEC 2006-04-12 PDF
Документация на серию RD-50

RD-50.cdr

Дата модификации: 21.04.2006

Размер: 403.4 Кб

2 стр.
