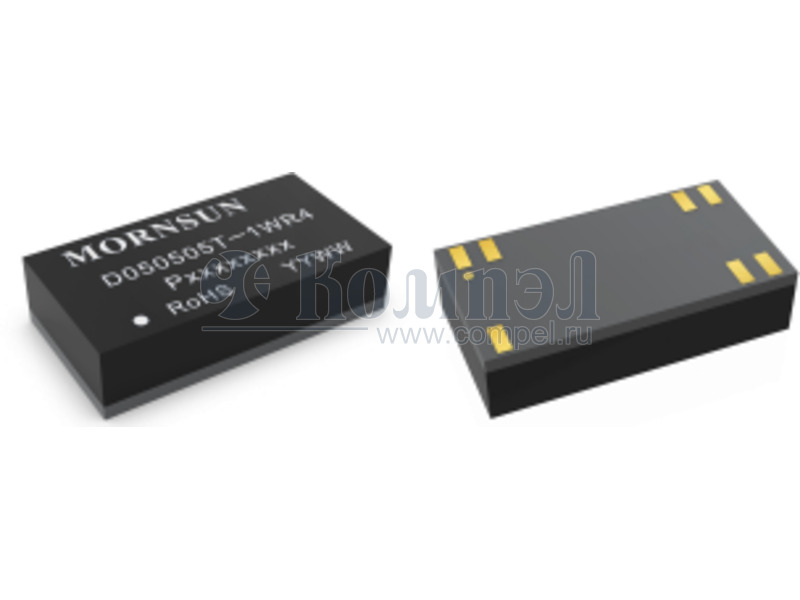

D050505T-1WR4

DC/DC Converter D050505T-1WR4 FEATURES 1W dual isolated DC-DC converter Fixed input voltage, unregulated dual output  Ultra-small, ultra-thin DFN package (13.20 x 7.00 x 3.10mm)  Isolation capacitance as low as 15pF  I/O isolation test voltage 3k VDC, O1/O2 isolation test voltage 1.5k VDC  Operating ambient temperature range: -40℃ to +125℃  High efficiency up to 87%  Continuous short-c...
развернуть ▼ свернуть ▲

Технические характеристики

показать свернуть
Монтаж
Выходная мощность
Количество каналов
Входное напряжение
Параметры выходов
Возможности ультракомпактный, изолированный
Комплекс защит
Номинальное входное напряжение
Напряжение 1 выхода
Напряжение 2 выхода
Ток 1 выхода
Ток 2 выхода
КПД
Схема параллельного включения
Напряжение изоляции вход-выход
Сертификаты медицинские
Размер 13.2×7×3.1 мм
Рабочая температура
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 26

показать свернуть
Тип Наименование Корпус Упаковка i Монтаж P вых Каналов U вх Выход Возможности Защита U вх ном. U1 U2 U3 I1 I2 I3 Шум КПД Паралл. сх. Uиз. вх-вых Uиз. вх-общ Uиз. вых-общ Uиз. вых-вых Серт. медиц. T раб Примечания Карточка
товара
A- FB0505T-1WR4 (MORNSUN)

QFN-6 в ленте 700 шт ультракомпактный, изолированный
A- B0505XT-1WR3 (MORNSUN)

SMD8 в линейках 500 шт
A- E0505T-1WR4 (MORNSUN)

1 шт ультракомпактный, изолированный
A- DETN01L-05 (MW)

30 шт
A- MDS01L-05 (MW)

в линейках 500 шт
A- SBTN01L-05 (MW)

SMD8 в линейках 38 шт
A- SMU01L-05 (MW)

SIP4 1 шт DC/DC-Conv 5:5V 200mA 1W
A- SPRN01L-05 (MW)

SIP7 в линейках 200 шт

A- B0505MT-1WR4 (MORNSUN)

в ленте 400 шт ультракомпактный, изолированный
A- B0505S-1WR2 (MORNSUN)

SIP4 1 шт
A- B0505S-1WR3 (MORNSUN)

SIP4 в линейках 43 шт
A- B0505T-1WR3 (MORNSUN)

SMD8 в линейках 740 шт
A- UWF1205S-1WR3 (MORNSUN)

22 шт
A- E0505S-1WR3 (MORNSUN)

SIP76 в линейках 200 шт
A- CF0505XT-1WR3 (MORNSUN)

SMD8 в линейках 109 шт
A- F0505LT-1WR3 (MORNSUN)

SMD10 в линейках 3 шт
A- F0505S-1WR2 (MORNSUN)

SIP76 1 шт
A- F0505S-1WR3 (MORNSUN)

SIP76 в линейках 40 шт
A- F0505T-1WR3 (MORNSUN)

в линейках 449 шт
A- F0505XT-1WR3 (MORNSUN)

SMD8 в ленте 760 шт
A- WRA0505S-1WR2 (MORNSUN)

SIP87 в линейках 792 шт
A- G0505S-1WR2 (MORNSUN)

SIP76 1 шт
A- H0505S-1WR2 (MORNSUN)

SIP76 в линейках 5 шт
A- IB0505LS-1WR3 (MORNSUN)

SIP76 в линейках 170 шт
A- IF0505S-1WR3 (MORNSUN)

SIP76 в линейках 22 шт
A- A0505S-1WR3 (MORNSUN)

SIP76 1 шт

Файлы 2

показать свернуть
DC/DC Converter D050505T-1WR4 FEATURES 1W dual isolated DC-DC converter Fixed input voltage, unregulated dual output  Ultra-small, ultra-thin DFN package (13.20 x 7.00 x 3.10mm)  Isolation capacitance as low as 15pF  I/O isolation test voltage 3k VDC, O1/O2 isolation test voltage 1.5k VDC  Operating ambient temperature range: -40℃ to +125℃  High efficiency up to 87%  Continuous short-circuit protection Patent Protection RoHS D050505T-1WR4 are specially designed for applications where two isolated voltage is required in a distributed power supply system and especially suitable in applications such as digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits. Selection Guide Input Voltage (VDC) Certification -- Part No. Output Nominal Voltage Current(mA) (Range) (VDC) Max./Min. 5 (4.5-5.5) D050505T-1WR4 Vo1 5 Io1 100/10 Vo2 5 Io2 100/10 Full Load Capacitive Efficiency (%) Min./Typ. Load(µF) 83/87 1200 Max.* Note: *Each of the two outputs has the same maximum capacitive load. Input Specifications Item Operating Conditions Input Current (full load / no-load) 5VDC input Reflected Ripple Current* Surge Voltage (1sec. max.) 5VDC input Min. Typ. Max. -- 230/7 241/15 -- 10 -- -- 9 -0.7 Input Filter Unit mA VDC Capacitance filter Hot Plug Unavailable Note: * Please refer to DC-DC Converter Application Note for detailed description of reflected ripple current testing method. Output Specifications Item Operating Conditions Min. Voltage Accuracy Typ. Max. Unit See output regulation curve (Fig. 1) Linear Regulation Input voltage change: ±1% -- -- 1.2 -- Load Regulation 10%-100% load -- 8 15 % Ripple & Noise* 20MHz bandwidth --- 30 75 mVp-p Temperature Coefficient Full load -- ±0.02 -- %/℃ Short-circuit Protection Continuous, self-recovery Note: * The “parallel cable” method is used for ripple and noise test, please refer to DC-DC Converter Application Notes for specific information. General Specifications Item Operating Conditions Isolation Input-output electric strength test for 1 minute with a leakage current of 1mA max. Vo1-Vo2 electric strength test for 1 minute with a leakage current of 1mA max. Insulation Resistance Input-output, Vo1-Vo2 resistance at 500VDC Isolation Capacitance Input-output, Vo1-Vo2 capacitance at 100kHz/0.1V Min. Typ. Max. 3000 -- -- 1500 -- -- 1000 -- -- MΩ -- 15 -- pF 2021.09.15-A/1 Unit VDC Page 1 of 5 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation PDF
Документация на D050505T-1WR4

D0505T-1WR4 Keywords:

Дата модификации: 15.09.2021

Размер: 2.39 Мб

5 стр.

DC/DC Converter D05xxxxT-1WR4 Series FEATURES 1W dual isolated DC-DC converter Fixed input voltage, unregulated dual output  Ultra-small, ultra-thin DFN package (13.20 x 7.00 x 3.10mm)  Isolation capacitance as low as 15pF  I/O isolation test voltage 3k VDC, O1/O2 isolation test voltage 1.5k VDC  Operating ambient temperature range: -40℃ to +125℃  High efficiency up to 87%  Continuous short-circuit protection Patent Protection RoHS  Meet IEC62368, UL62368, EN62368 standards D05xxxxT-1WR4 series are specially designed for applications where two isolated voltage is required in a distributed power supply system and especially suitable in applications such as digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits. Selection Guide Input Voltage (VDC) Certification UL/CE/CB (Pending) Part No. Output Nominal Voltage Current(mA) (Range) (VDC) Max./Min. 5 (4.5-5.5) D050505T-1WR4 Vo1 5 Io1 100/10 Vo2 5 Io2 100/10 Full Load Capacitive Efficiency (%) Min./Typ. Load(µF) 83/87 1200 Max.* Note: *Each of the two outputs has the same maximum capacitive load. Input Specifications Item Operating Conditions Input Current (full load / no-load) 5VDC input Reflected Ripple Current* Surge Voltage (1sec. max.) 5VDC input Min. Typ. Max. -- 230/7 241/15 -- 10 -- -0.7 -- 9 Input Filter Unit mA VDC Capacitance filter Hot Plug Unavailable Note: * Please refer to DC-DC Converter Application Note for detailed description of reflected ripple current testing method. Output Specifications Item Operating Conditions Min. Voltage Accuracy Typ. Max. Unit See output regulation curve (Fig. 1) Linear Regulation Input voltage change: ±1% Load Regulation 10%-100% load Ripple & Noise* 20MHz bandwidth Temperature Coefficient Full load -- -- -- 1.2 -- 8 15 % --- 30 75 mVp-p ±0.02 -- %/℃ Short-circuit Protection -- Continuous, self-recovery Note: * The “parallel cable” method is used for ripple and noise test, please refer to DC-DC Converter Application Notes for specific information. General Specifications Item Operating Conditions Isolation Input-output electric strength test for 1 minute with a leakage current of 1mA max. Vo1-Vo2 electric strength test for 1 minute with a leakage current of 1mA max. Insulation Resistance Input-output, Vo1-Vo2 resistance at 500VDC Min. Typ. Max. 3000 -- -- 1500 -- -- 1000 -- -- 2020.08.12-A/0 Unit VDC MΩ Page 1 of 5 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation PDF
Документация на серию D_T_R4

D0505T-1WR4 Keywords:

Дата модификации: 14.08.2020

Размер: 2.38 Мб

5 стр.
