RD-125-1248

MEAN WELL
Компактный AC-DC (DC-DC), 125Вт, Uвх=88-264VAC (120-370VDC), два выхода +12В/7А, +48В/2.5А, подстр. Uвых1=-5/+10%, изоляция 3кVAC (вх-вых), 1,5кVAC (вх-корп), 199х98х38 мм, -20...+70°С Производитель: MEAN WELL
развернуть ▼ свернуть ▲
Фотография серии RD-125

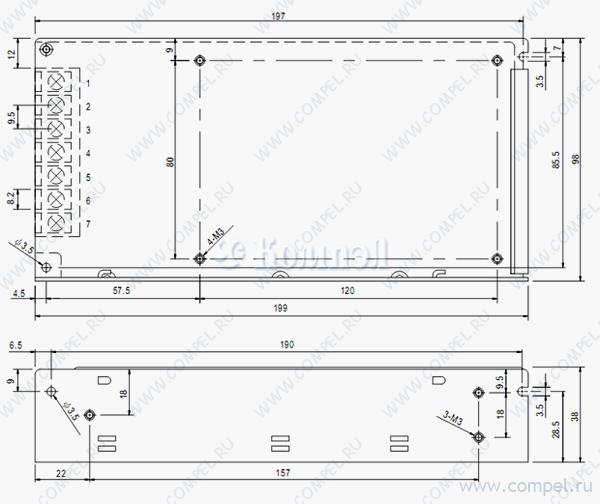

Чертеж серии RD-125



Технические характеристики

показать свернуть
Выходная мощность (ном)
Выход
Напряжение 1 канала
Выходной ток 1 канала
Тип стабилизации
Вход
Конструктивное исполнение
Возможности
Типы защиты КЗ, перегрузка, перенапряжение
Количество выходов
Тип управления выходом
Исполнение
Входное напряжение AC
Входное напряжение DC
Коэффициент мощности
Напряжение изоляции вход-выход
Напряжение изоляции вход-земля
Напряжение изоляции выход-земля
Применение
КПД
Шум
Размер 199×98×38 мм
Рабочая температура
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 2

показать свернуть
Тип Наименование Корпус Упаковка i P вых Выход U1 I1 Стабилизация Вход Конструктив Возможности Защита Выходов Управление IP U вх AC U вх DC Коэф. мощн. U изол вх-вых U изол вх-земля U изол вых-земля Применение КПД Шум T раб Примечание Карточка
товара
A+ RD-125-4812 (MW)

— 1 шт AC-DC сетевой преобразователь - P вых: 138 Вт; Выход: 48 В, 12 В; U1: 45.6...52.8 В; I1... КЗ, перегрузка, перенапряжение —
A+ RID-125-1248 (MW)

— 1 шт AC-DC сетевой преобразователь - P вых: 125 Вт; Выход: 12 В, 48 В; U1: 11.4...13.2 В; I1... КЗ, перегрузка, перенапряжение —

Файлы 2

показать свернуть
RD-125 125W Dual Output Switching Power Supply ■ Features : Protections: Short circuit / Overload / Over voltage series User’s Manual Cooling by free air convection LED indicator for power on 100% full load burn-in test All using 105℃ long life electrolytic capacitors Withstand 300VAC surge input for 5 second High operating temperature up to 70℃ Withstand 5G vibration test High efficiency, long life and high reliability 3 years warranty Bauar t gepruft Sicherheit egel ma ge od o s be wac g SPECIFICATION www. tuv.com ID 2000000000 UL62368-1 MODEL OUTPUT RD-125A CH1 CH2 CH1 CH2 DC VOLTAGE 5V 12V 5V 24V RATED CURRENT 7.7A 7.7A 4.6A 4.6A 0 ~ 10A 0 ~ 10A 0 ~ 5A 120mVp-p 80mVp-p 120mVp-p ±7.0% CURRENT RANGE Note.3 0 ~ 12A RATED POWER Note.6 130.9W VOLTAGE ADJ. RANGE CH1: 4.75 ~ 5.5V VOLTAGE TOLERANCE Note.3 ±5.0% ±7.0% CH1: 4.75 ~ 5.5V ±5.0% LINE REGULATION Note.4 ±1.0% ±2.0% ±1.0% ±2.0% LOAD REGULATION Note.5 ±3.0% ±4.0% ±3.0% ±4.0% 1200ms, 30ms/115VAC at full load 25ms/230VAC VOLTAGE RANGE 88 ~ 132VAC / 176 ~ 264VAC selected by switch FREQUENCY RANGE 47 ~ 63Hz EFFICIENCY (Typ.) 82% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 3A/115VAC 2A/230VAC COLD START 50A/230VAC OVERLOAD OVER VOLTAGE WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS SAFETY & WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC (Note 7) EMC EMISSION EMC IMMUNITY MTBF NOTE 500ms, 20ms/230VAC HOLD UP TIME (Typ.) PROTECTION OTHERS 133.4W RIPPLE & NOISE (max.) Note.2 80mVp-p LEAKAGE CURRENT TPTC004 RD-125B OUTPUT NUMBER SETUP, RISE TIME INPUT BS EN/EN62368-1 IEC62368-1 30ms/115VAC at full load 248 ~ 373VDC(Withstand 300VAC surge for 5sec. Without damage) 85% <2mA / 240VAC 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed CH1: 5.75 ~ 6.75V Protection type : Hiccup mode, recovers automatically after fault condition is removed -25 ~ +70℃ (Refer to "Derating Curve") 20 ~ 90% RH non-condensing -40 ~ +85℃, 10 ~ 95% RH ±0.03%/℃ (0 ~ 50℃)on CH1 output 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020 DIMENSION 232.4Khrs min. MIL-HDBK-217F (25℃) 199*98*38mm (L*W*H) PACKING 0.7Kg; 20pcs/15Kg/0.85CUFT 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation.(In order to meet tolerance, it is recommended that CH1 load >15% rated current.) 4. Line regulation is measured from low line to high line at rated load. 5. Load regulation is measured from 20% to 100% rated load, and other output at 60% rated load. 6. Each output can work within current range. But total output power can't exceed rated output power. 7. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com) 8. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time. 9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft). ※ Product Liability Disclaimer：For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx File Name:RD-125-SPEC 2021-09-16 PDF
Документация на RD-125B

RD-125-20210915.cdr

Дата модификации: 28.09.2021

Размер: 144.2 Кб

4 стр.

RD-125 125W Dual Output Switching Power Supply series Features : Protections:Short circuit/Over load/Over voltage Cooling by free air convection LED indicator for power on 100% full load burn-in test All using 105 long life electrolytic capacitors Withstand 300VAC surge input for 5 second High operating temperature up to 70 Withstand 5G vibration test High efficiency, long life and high reliability 3 years warranty SPECIFICATION MODEL OUTPUT INPUT RD-125A RD-125B OUTPUT NUMBER CH1 CH2 CH1 DC VOLTAGE 5V 12V 5V 24V RATED CURRENT 7.7A 7.7A 4.6A 4.6A 0.5 ~ 10A 2 ~ 10A 0.4 ~ 5A CURRENT RANGE Note.6 2 ~ 15A RATED POWER Note.6 130.9W CH2 133.4W RIPPLE & NOISE (max.) Note.2 80mVp-p 120mVp-p 80mVp-p VOLTAGE ADJ. RANGE CH1: 4.75 ~ 5.5V VOLTAGE TOLERANCE Note.3 5.0% CH1: 4.75 ~ 5.5V 5.0% 7.0% 120mVp-p 7.0% LINE REGULATION Note.4 1.0% 2.0% 1.0% 2.0% LOAD REGULATION Note.5 3.0% 4.0% 3.0% 4.0% SETUP, RISE TIME 500ms, 20ms/230VAC HOLD TIME (Typ.) 36ms/230VAC VOLTAGE RANGE 88 ~ 132VAC / 176 ~ 264VAC selected by switch FREQUENCY RANGE 47 ~ 63Hz EFFICIENCY(Typ.) 82% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 3A/115VAC 2A/230VAC COLD START 40A/230VAC LEAKAGE CURRENT 1200ms, 30ms/115VAC at full load 30ms/115VAC at full load 248 ~ 373VDC(Withstand 300VAC surge for 5sec. Without damage) 85% <2mA / 240VAC 110 ~ 150% rated output power OVER LOAD PROTECTION OVER VOLTAGE WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS WITHSTAND VOLTAGE Protection type : Hiccup mode, recovers automatically after fault condition is removed CH1: 5.75 ~ 6.75V Protection type : Hiccup mode, recovers automatically after fault condition is removed -25 ~ +70 (Refer to output load derating curve) 20 ~ 90% RH non-condensing -40 ~ +85 , 10 ~ 95% RH 0.03%/ (0 ~ 50 )on +5V output 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes UL60950-1, TUV EN60950-1 Approved I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC SAFETY & ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC EMI CONDUCTION & RADIATION Compliance to EN55022 (CISPR22) Class B EMC (Note 7) OTHERS HARMONIC CURRENT Compliance to EN61000-3-2,-3 EMS IMMUNITY MTBF Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN61000-6-2 (EN50082-2) heavy industry level, criteria A DIMENSION PACKING NOTE 232.4Khrs min. MIL-HDBK-217F (25 199*98*38mm (L*W*H) 0.7Kg; 20pcs/15Kg/0.8CUFT ) 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Line regulation is measured from low line to high line at rated load. 5. Load regulation is measured from 20% to 100% rated load, and other output at 60% rated load. 6. Each output can work within current range. But total output power can't exceed rated output power. 7. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 8. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time. File Name:RD-125-SPEC 2005-09-13 PDF
Документация на серию RD-125

RD-125.cdr

Дата модификации: 01.10.2005

Размер: 1.13 Мб

4 стр.
