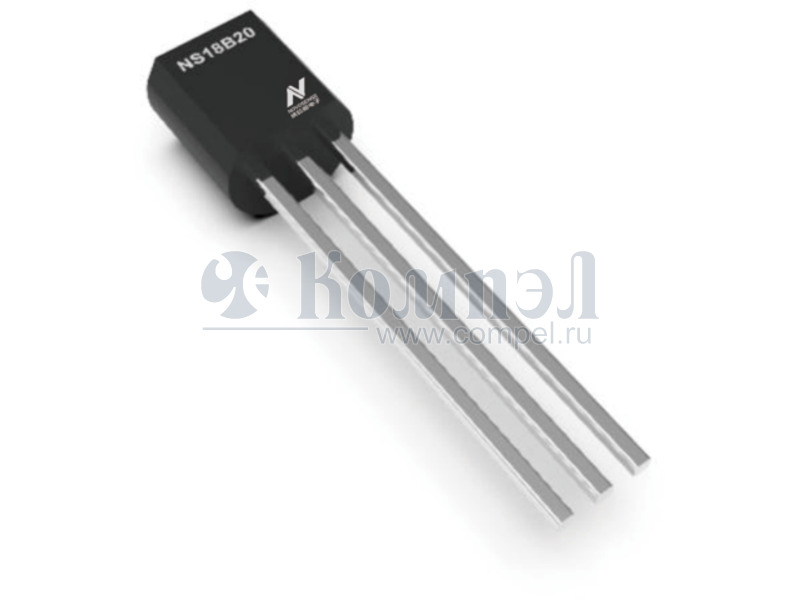

NS18B20: 1-Wire Digital Thermometer NOVOSENSE DESCRIPTION NS18B20 is a high precision 1-wire bus system temperature measurement chip. The temperature range of the temperature sensor is -55 °C to +125 °C. The digital conversion accuracy and temperature measurement speed can be set through the configuration register according to user needs. NS18B20 has a built-in 5byte non-volatile storage unit ...
развернуть ▼ свернуть ▲

Технические характеристики

показать свернуть
Корпус TO92S
Тип датчика
Диапазон измеряемых температур
Точность измерения ±
Интерфейс
Примечания
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 2

показать свернуть
Тип Наименование Корпус Упаковка i Тип T изм Точность Интерфейс Примечания Карточка
товара
F~ DS18B20 (YOUTAI)
DS18b20 Waterproof temperature sensor (HKSHAN)
TO-92-3 2000 шт Serial Switch/Digital Sensor, 12 Bit(s), 0.40Cel, Rectangular, 3 Pin, Through Hole Mount
F~ SD5820A (SDIC) TO-92-3 1000 шт


Файлы 1

показать свернуть
NS18B20: 1-Wire Digital Thermometer NOVOSENSE DESCRIPTION NS18B20 is a high precision 1-wire bus system temperature measurement chip. The temperature range of the temperature sensor is -55 °C to +125 °C. The digital conversion accuracy and temperature measurement speed can be set through the configuration register according to user needs. NS18B20 has a built-in 5byte non-volatile storage unit for users to use. 3byte is used for high and low temperature alarms and configuration accuracy. In addition, 2byte is used to save user-defined information. The nonvolatile storage write cycle takes 10ms. The maximum error of the device is ±1°C over the full temperature range. NS18B20 has two working modes: parasitic power supply and external power supply, in which the parasitic power supply can be powered through the data line without external power supply. Each NS18B20 has a unique 64-bit serial number. Using a single bus interface allows multiple devices to hang on the same bus. Therefore, this feature can use a processor to control multiple NS18B20 sensors. NS18B20 is widely used in distributed temperature environment monitoring, temperature control and other systems. FEATURES Datasheet 1.0  User-definable, settings  Available in TO-92 Package nonvolatile temperature alarm Applications  Process monitoring and control system  Industrial Internet of Things  White goods  Temperature monitoring Pin Configuration and Functions  Unique 1-Wire interface requires only one port pin for communication PIN NAME FUNCTION  Each Device has a Unique 64-Bit Serial Code Stored in an On-Board ROM 1 GND Ground  Measures Temperatures from -55°C to +125°C (-67°F to +257°F) 2 DQ  Maintain high accuracy in the full temperature range Data Input/Output. Open-drain 1-Wire interface pin. Also provides power to the device when used in parasite power mode. 3 VDD Optional VDD. VDD must be grounded for operation in parasite power mode.  ±0.5°C accuracy from -10°C to +85°C  ±1°C accuracy from -55°C to -125°C  Converts 12-bit temperature to digital word in 50 ms  No extra pull-up required for temperature conversion  Requires no external components  Power supply range is 2.7V to 5.5V  Thermometer resolution is programmable from 9 to 12 bits Copyright © 2019, NOVOSENSE Page 1 PDF
